Alpine PDR-V75 - Specifications; Performance Metrics; Control and General Features

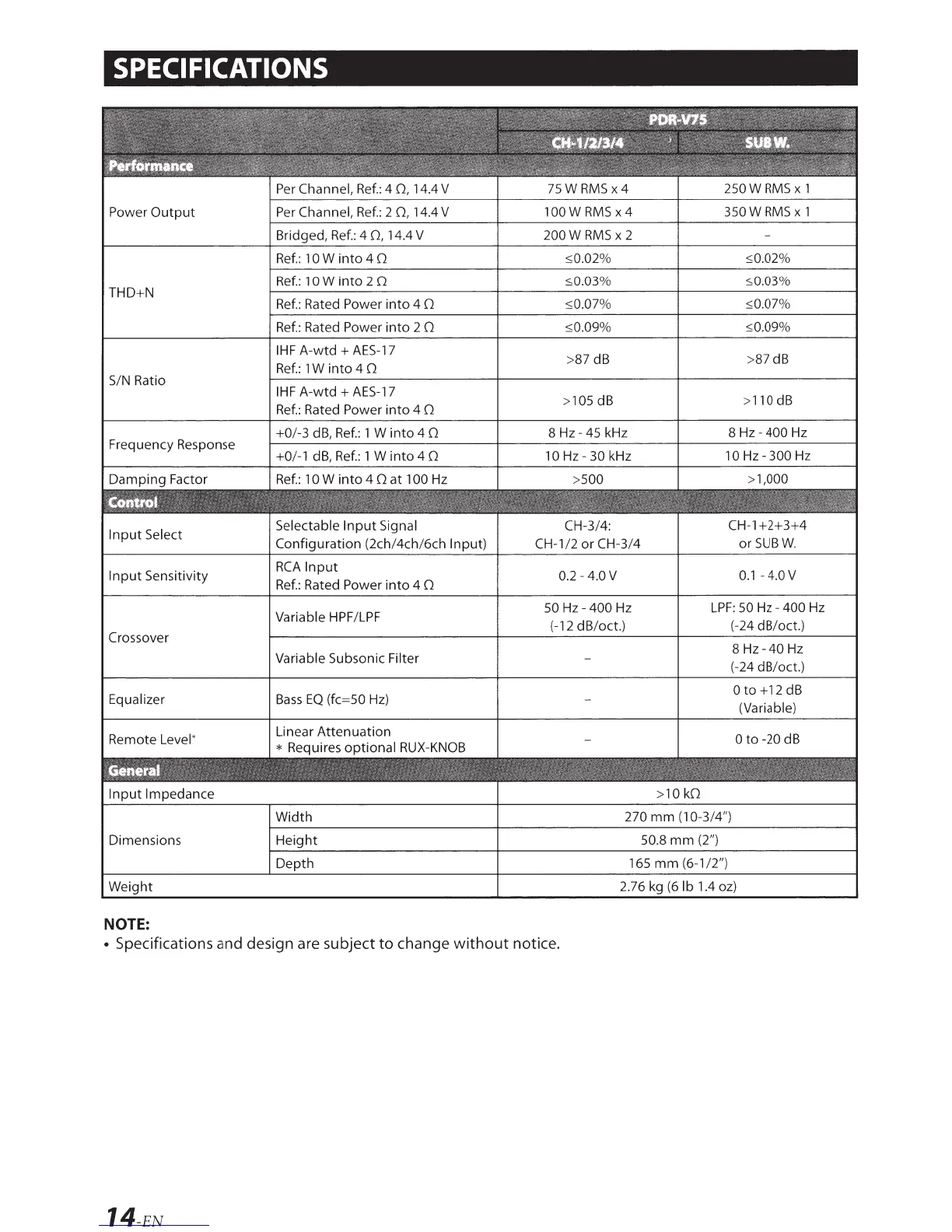

SPECIFICATIONS
Per Channel, Ref.: 4 0, 14.4 V 75 W RMS x 4
250W RMS x 1
Power
Output Per Channel, Ref.: 2 0, 14.4 V
100W RMS x4 350W RMS x 1
Bridged,
Ref.: 4 0, 14.4 V 200W RMS x 2
Ref.: 10 W into 4 0
~0.02% ~0.02%
Ref.: 1 0 W into 2 0
~0.03%
~0.03%
THD+N
Ref.: Rated Power into 4 0
~0.07% ~0.07%
Ref.: Rated Power into 2 0
~0.09%
~0.09%
IHF A-wtd + AES-17
>87 dB
>87 dB
Ref.: 1 W into 4 0
S/N Ratio
IHF A-wtd + AES-17
> 105 dB
> 110 dB
Ref.: Rated Power into 4 0
+0/-3 dB, Ref.: 1 W into 4 0
8Hz-45kHz
8Hz-400Hz
Frequency Response
+0/-1 dB,
Ref.: 1 W into 4 0
10Hz-30kHz
10Hz-300Hz
Damping Factor Ref.: 10 W into 4 0 at 100Hz
>500
>1,000
Input Select
Selectable
Input Signal CH-3/4:
CH-1 +2+3+4
Configuration (2ch/4ch/6ch Input) CH-1 /2 or CH- 3/4
or SUB W.
Input Sensitivity
RCA Input
0.2-4.0 v
0.1 -4.0 v
Ref.: Rated Power into 4 0
Variable HPF/LPF
50
Hz- 400Hz
LPF: 50 Hz - 400 Hz
(-12 dB/oct.)
(-24 dB/oct.)
Crossover
Variable Subsonic Filter
8Hz-40Hz
-
(-24 dB/oct.)
Equalizer
Bass EQ (fc=SO Hz)
Oto+12dB
-
(Variable)
Remote Level*
Linear
Attenuation
0 to -20 dB
* Requires optional RUX-KNOB
-
Input Impedance
>10 kO
Width
270 mm (1 0-3/4")
Dimensions
Height
50.8 mm (2")
Depth
165 mm (6-1 /2")
Weight
2.76 kg (6 lb 1.4 oz)
NOTE:
• Specifications and design are subject to change without notice.
14-EN
