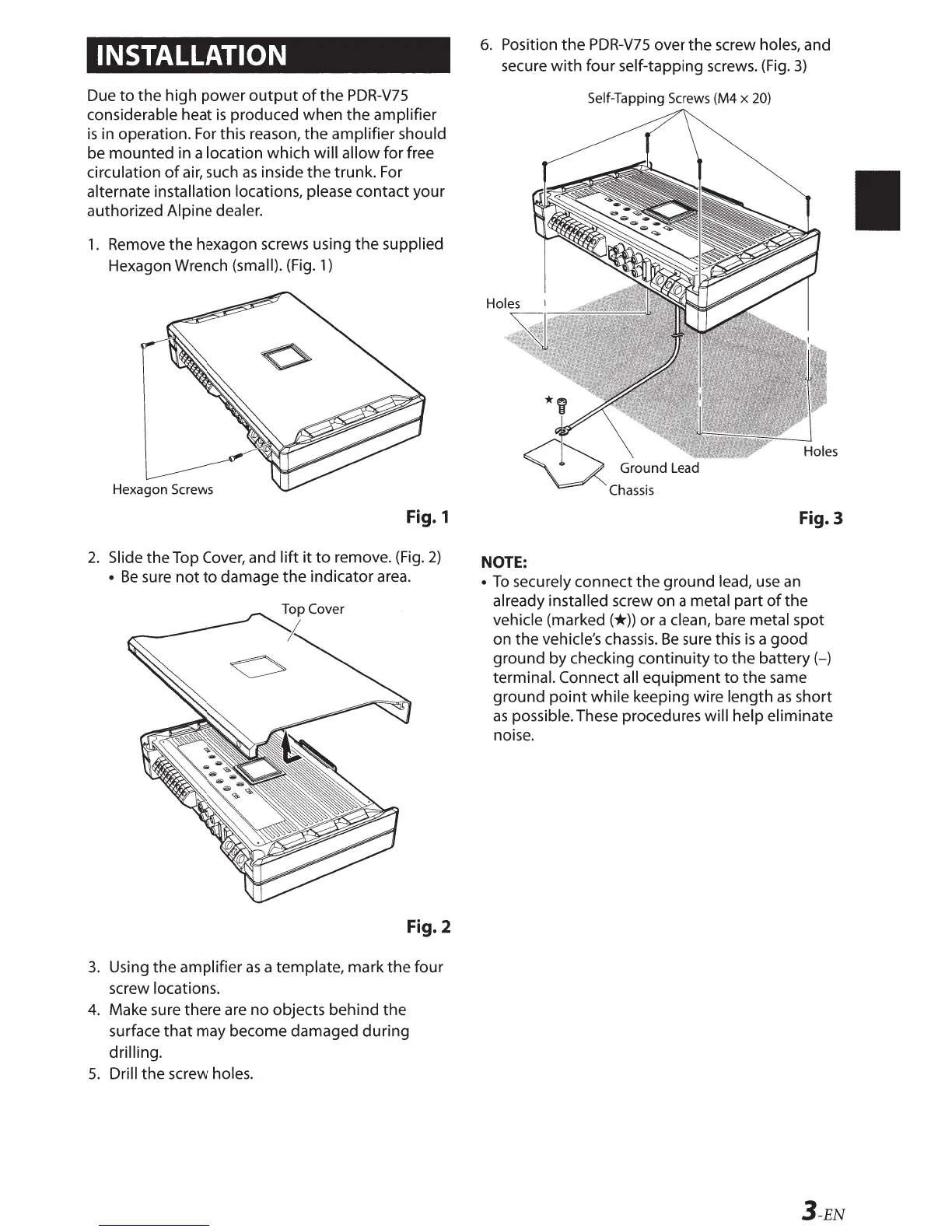

INSTALLATION
Due
to
the high power
output
of
the
PDR-V75
considerable heat
is
produced when the amplifier
is
in operation.
For
this reason,
the
amplifier should
be mounted in a location which will allow for free
circulation
of
air,
such
as
inside
the
trunk.
For
alternate installation locations, please contact your
authorized Alpine dealer.
1.
Remove the hexagon screws using
the
supplied
Hexagon Wrench (small).
(Fig.
1)
Hexagon Screws
Fig.
1
2.
Slide the Top
Cover,
and
lift
it
to
remove.
(Fig.
2)
•
Be
sure
not
to
damage
the
indicator
area.
Fig.
2
3.
Using the amplifier
as
a template, mark the four
screw locations.
4.
Make sure there are no objects behind the
surface
that
may become damaged during
drilling.
5.
Drill the screw holes.
6.
Position
the
PDR-V75
over the screw holes, and
secure
with
four self-tapping screws.
(Fig.
3)
Self-Tapping Screws (M4 x 20)
Fig.
3
NOTE:
•
To
securely connect the ground lead,
use
an
already installed screw on a metal part
of
the
vehicle (marked
(*))
or a clean, bare metal spot
on
the
vehicle's
chassis.
Be
sure this
is
a good
ground by checking continuity
to
the
battery(-)
terminal. Connect all equipment
to
the
same
ground
point
while keeping wire length
as
short
as
possible. These procedures will help eliminate
noise.
