ACCESSORIES
• Self-Tapping Screw ..........................................................4
• Hexagon Wrench ..............................................................1
INSTALLATION
Due to the high power output of the S2-A36F/
S2-A55V considerable heat is produced when the
amplifier is in operation. For this reason, the
amplifier should be mounted in a location which
will allow for free circulation of air, such as inside
the trunk. For alternate installation locations, please
contact your authorized Alpine dealer.

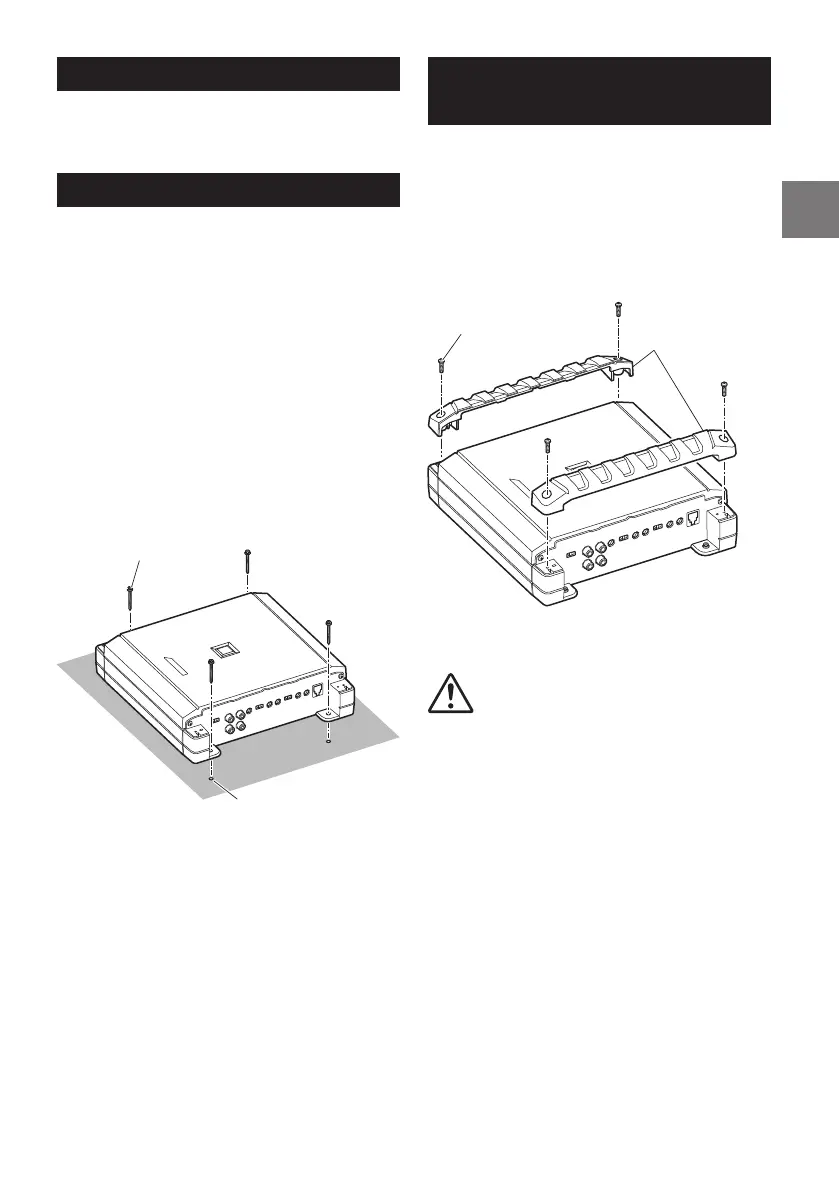

1. Using the amplifier as a template, mark the four
screw locations.
2. Make sure there are no objects behind the
surface that may become damaged during
drilling.
3. Drill the screw holes.
4. Position the S2-A36F/S2-A55V over the screw
holes, and secure with four self-tapping screws.
Self-Tapping Screws (× 4)
(included)
Holes (× 4)
(e.g. S2-A36F)
ATTACHING THE
TERMINAL COVERS
Attach the terminal covers (included) after
connections and confirmation of correct operation.
Attaching the terminal covers will improve the
appearance of the unit.
How to attach the terminal covers:
Attach the left and right terminal covers using the
supplied Self-Tapping Screws (3×8), as shown in the
figure below.
Terminal covers
(left and right common)
Self-Tapping Screws
(3×8)
(e.g. S2-A36F)
CAUTION
Do not lift or carry the unit by the attached
terminal covers.
SERVICE CARE
IMPORTANT NOTICE
This Amplifier has been type tested and found to
comply with the limits for a Class B computing
device in accordance with the specifications in
Subpart J of Part 15 of FCC Rules. This equipment
generates and uses radio frequency energy, and it
must be installed and used properly in accordance
with the manufacturer’s instructions.
SERIAL NUMBER:
INSTALLATION DATE:
INSTALLATION TECHNICIAN:
PLACE OF PURCHASE:
IMPORTANT
Please record the serial number of your unit in
the space provided here and keep it as a
permanent record. The serial number plate is
located on the rear of the unit.
For European Customers
Should you have any questions about warranty,
please consult your store of purchase.
For Customers in other Countries
IMPORTANT NOTICE
Customers who purchase the product with which
this notice is packaged, and who make this
purchase in countries other than the United States
of America and Canada, please contact your dealer
for information regarding warranty coverage.
