4-EN
*1 For details on the wires size to be used, refer to the supplied “Cautions on Power Supply Wires Connection” and
“Cautions on Power Supply Wires” (page 17), and then use the wire of the specified size.
*2 Be sure to add an External Fuse (e.g. Fuse Block, Circuit Breaker) with the battery lead as close as possible to the
battery’s positive (+) terminal. Add an external fuse with the same capacity, or a slightly larger capacity, as the sum total
of the fuse capacities of the amplifier.
For details on the fuse capacity of this machine, see “Battery Lead (
)” (page 6).
*3 Connect all equipment to the same ground point while keeping wire length as short as possible.
*4 To securely connect the ground lead, use an already installed screw.
To prevent external noise from entering the audio system
•
Locate the unit and route the leads at least 10 cm (4”) away from the vehicle’s harness.
•
Keep the battery power leads as far away from other leads as possible.
•
Connect the ground lead securely to a bare metal spot (remove any paint or grease if necessary) of the vehicle’s
chassis.
•
If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer
carries various noise suppressors, contact them for further information.
•
Your Alpine dealer knows best about noise prevention measures so consult your dealer for further information.

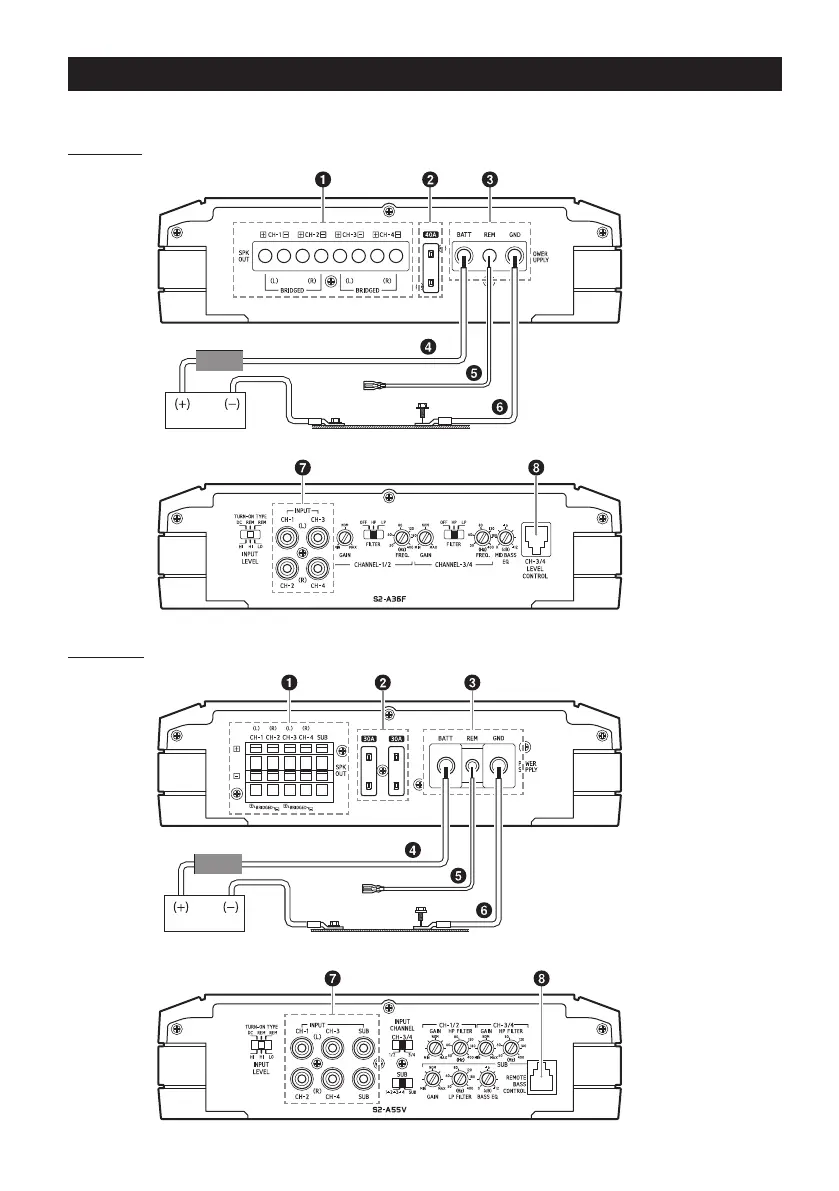

CONNECTIONS
Before making connections, be sure to turn the power off to all audio components.
S2-A36F
(Left Side)
(Right Side)
*
3, 4
*
1
Vehicle’s chassisVehicle’s battery
External Fuse*
2
S2-A55V
(Left Side)
(Right Side)
*
3, 4
*
1
Vehicle’s chassisVehicle’s battery
External Fuse*
2
To Next Page
