55-EN

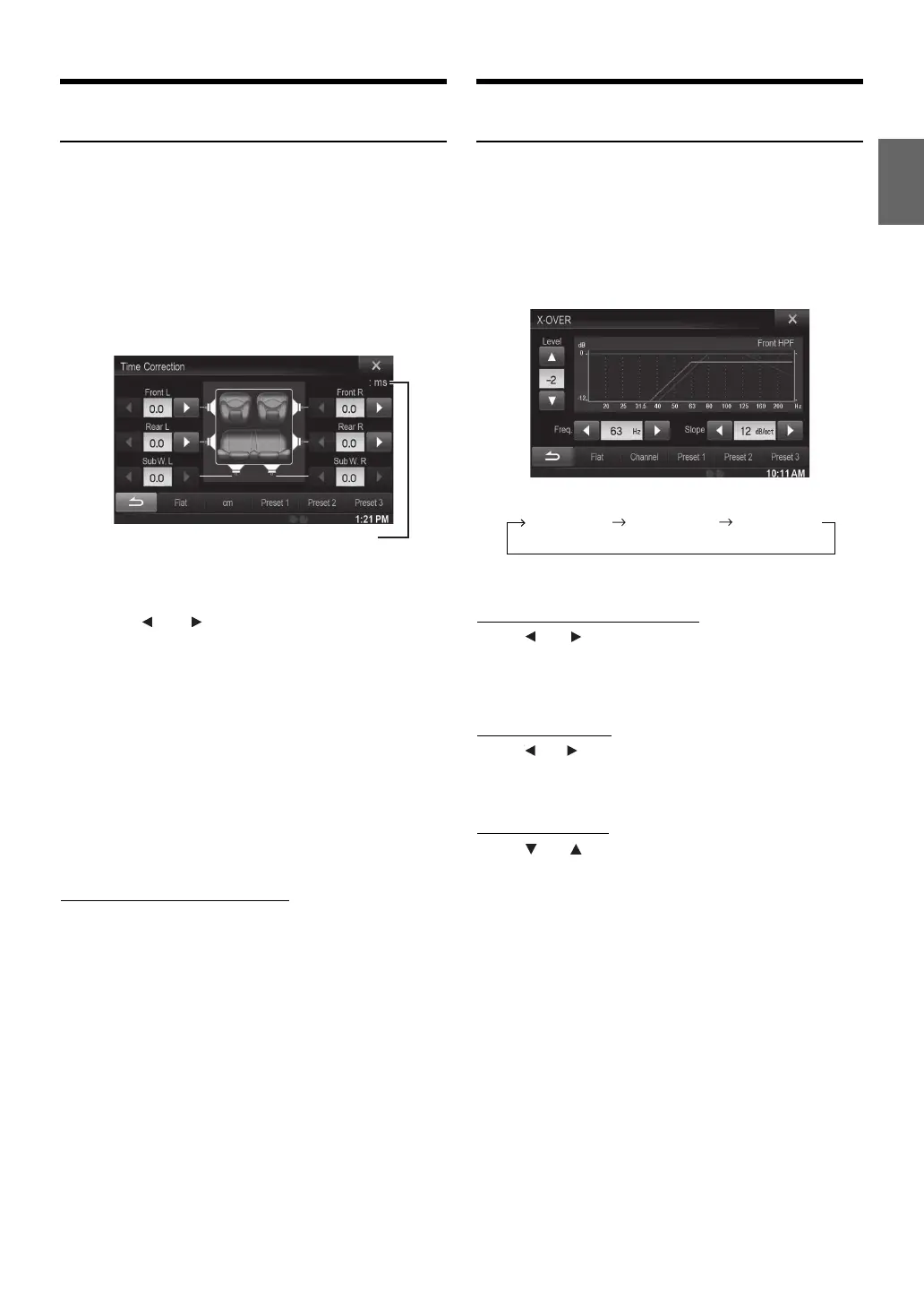

Adjusting the Time Correction
(Time Correction)
[Time Correction] is selected on the Sound setup menu in step 3. Refer
to “Sound Setup Operation” (page 52).
Before performing the following procedures, refer to “About Time
Correction” (page 56).
Setting item: Time Correction
1
Touch [cm], [inch] or [ms] to select mode for
making adjustments.
Each time you touch, the onscreen button and correction
mode changes.
cm/inch: Adjust listening position and distance from each
speaker.
ms: Adjust time.
2
Touch [] or [] for each speaker to adjust the
time or distance.
0.0 msec to 9.9 msec (0.1 msec/step)
0.0 cm (0.0 inch) to 336.6 cm (132.7 inch) (3.4 cm/step)
All speaker setting values are adjustable in the range of 15 ms
or 510 cm.
3
To store the adjusted setting value, touch and hold
[Preset1], [Preset2], or [Preset3] for at least 2
seconds.
• Touch [Flat] to set all values to 0.0.
• If the Rear Speaker setting is “Off”, the Rear Speaker setting cannot
be edited (refer to page 52).
• If the Subwoofer setting is “Off”, the Subwoofer setting cannot be
edited (refer to page 52).
Calling the Time Correction Value
Calling the pre-set time correction value.
Touch [Preset1], [Preset2], or [Preset3] on the time
correction screen.
The setting stored in the Preset will be recalled.
Adjusting the Crossover Settings
(X-OVER)
[X-OVER] is selected on the Sound setup menu in step 3. Refer to
“Sound Setup Operation” (page 52).
Before performing the following procedures, refer to “About the
Crossover” (page 57).
Setting item: X-OVER
1
Touch [Channel] to select the channel.
Each time you touch, the channel switches.
• The channel being adjusted is displayed in red.
2
Adjust the crossover to your preference.
Selecting the Cut-Off Frequency
Touch [] or [] of “Freq.”, and then select the cut-off
frequency.
Setting contents: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 (Initial setting) /
100 / 125 / 160 / 200 Hz
Adjusting the Slope
Touch [] or [] of “Slope”, and then adjust the HPF or LPF
slope.
Setting contents: 0 (Initial setting) / 6 / 12 / 18 / 24 dB/oct.
Adjusting the Level
Touch [] or [] of “Level”, and then adjust the HPF or LPF
level.
Setting contents: -12 to 0 dB (Initial setting: 0)
3
Repeat steps 1 to 2 to make adjustment to the other
channels.
4
To store the adjusted setting value, touch and hold
[Preset1], [Preset2], or [Preset3] for at least 2
seconds.
• Touch [Flat] to initialise all values.
• If the Rear Speaker setting is “Off”, the Rear Speaker setting cannot
be edited (refer to page 52).
• If the Subwoofer setting is “Off”, the Subwoofer setting cannot be
edited (refer to page 52).
• While adjusting the X-OVER you should consider the frequency
response of the connected speakers.
Correction mode
Front HPF Rear HPF Subw. LPF
