Operating mechanism
Description
The operating mechanism (11) is an FK3--07 type spring operating
mechanism.
The door of the operating mechanism is fitted with two inspection windows.
These windows are used to view the optical position indicators for the
circuit breaker and the status of the closing spring.

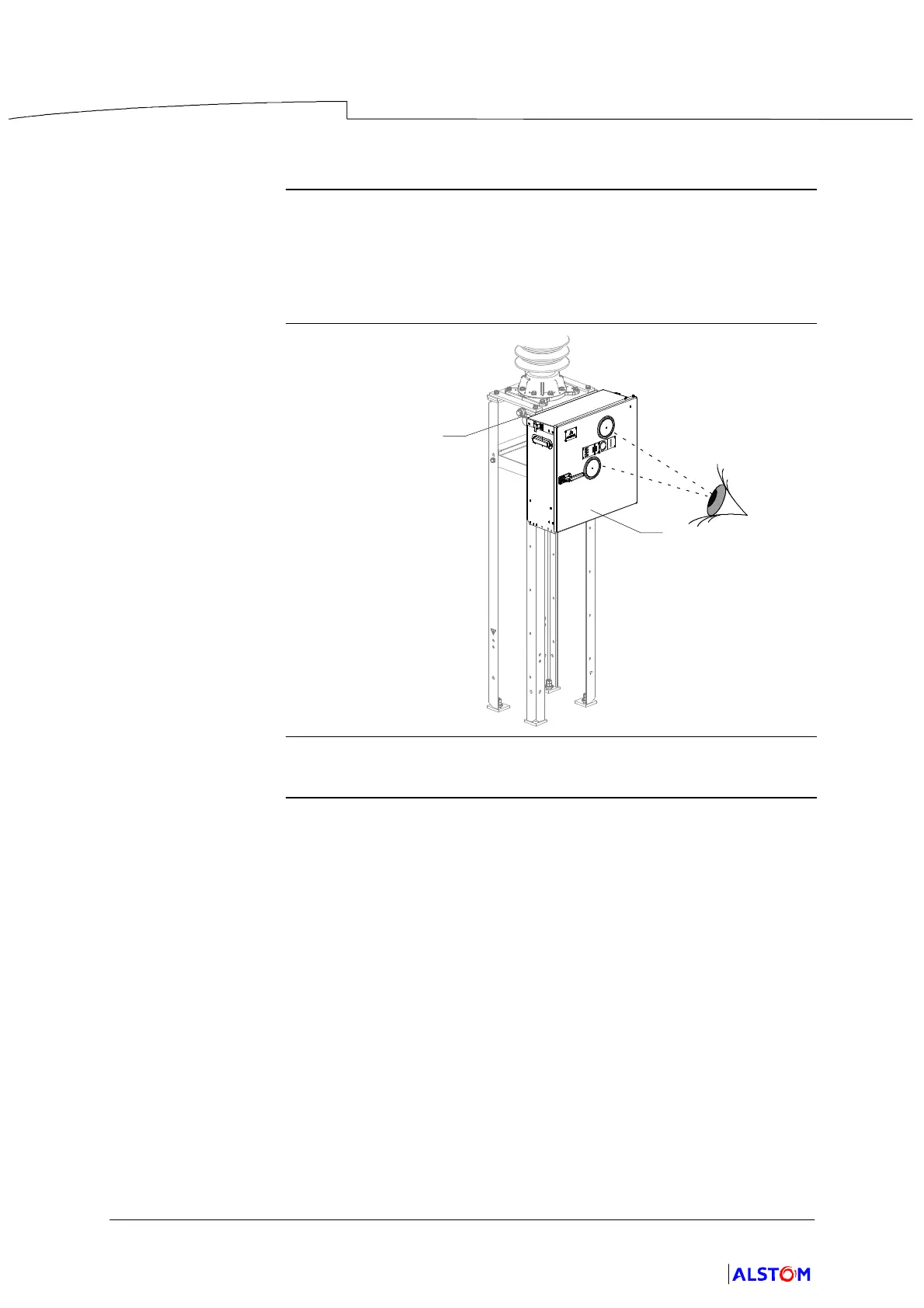

Illustration
3
11
Fixings
The operating mechanism is fixed to the casing (3).
