Maintenance
Replacing the FK3--07 operating mechanism
P51--8001EN/02
5/10
01--2011
© ALSTOM 2010. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be
relied on that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is
provided without liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is
strictly prohibited.
GRID
Maintaining th e po le cou p ling sleeve
Position
indicators

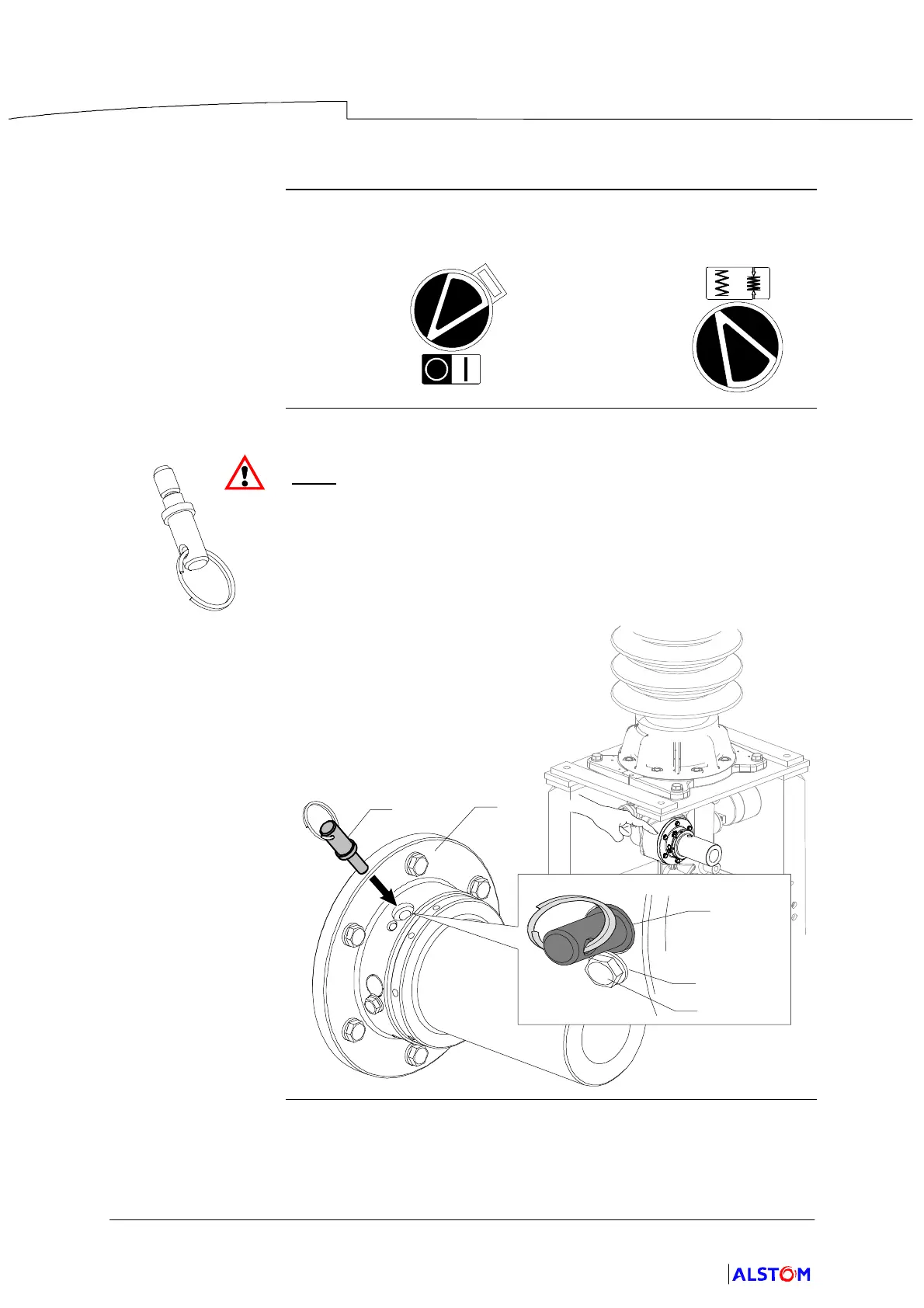

Check the operating mechanism position indicators statuses are as
follows:
Circuit--breaker
Open
Closing spring
Unarmed
Holding tool
Insert the holding tool (4) in the empty hole provided on the sleeve (12)
and hold it using the screw (5) and washer (6).
NOTE
: the screw (5) and washer (6) are not part of the ALSTOM
Grid supply.
This holding tool (4) must remain in position throughout the
operation to reassemble the operating mechanism.
4
12
HM5--10
0,4 daN.m
6
5
4
