Maintenance
Replacing the FK3--07 operating mechanism
P51--8001EN/02
7/10
01--2011
© ALSTOM 2010. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be
relied on that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is
provided without liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is
strictly prohibited.
GRID

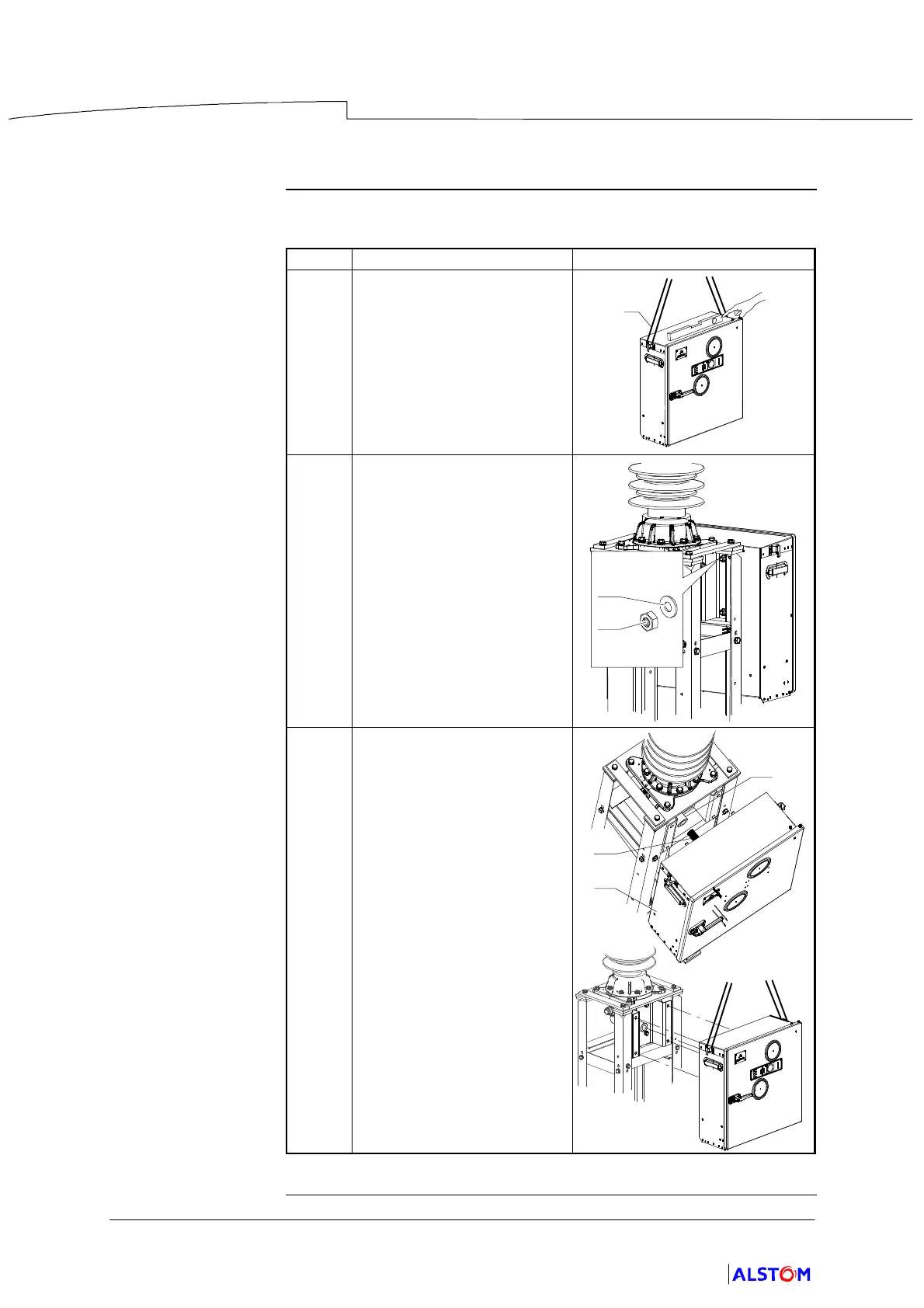

Removing the operating mechanism
Instructions
The table below shows the steps for removing the operating mechanism :
Step Action Illustration
1 Sling the operating
mechanism using the hoisting
strap (1) as shown in the
illustration.
1
2 Remove the nuts (14) and the
washers (10).
x4
HM16
14
10
3 Extract the mechanism’s pin
(7) from the sleeve (12) and
remove the operating
mechanism (20).
20
7
12
Continued on next page.
