H48.020.249en/2
25/51
Manual Operations
Motor-wound spring operating mechanism FK3-07
for outdoor circuit breaker
26.04.201
1
© ALSTOM

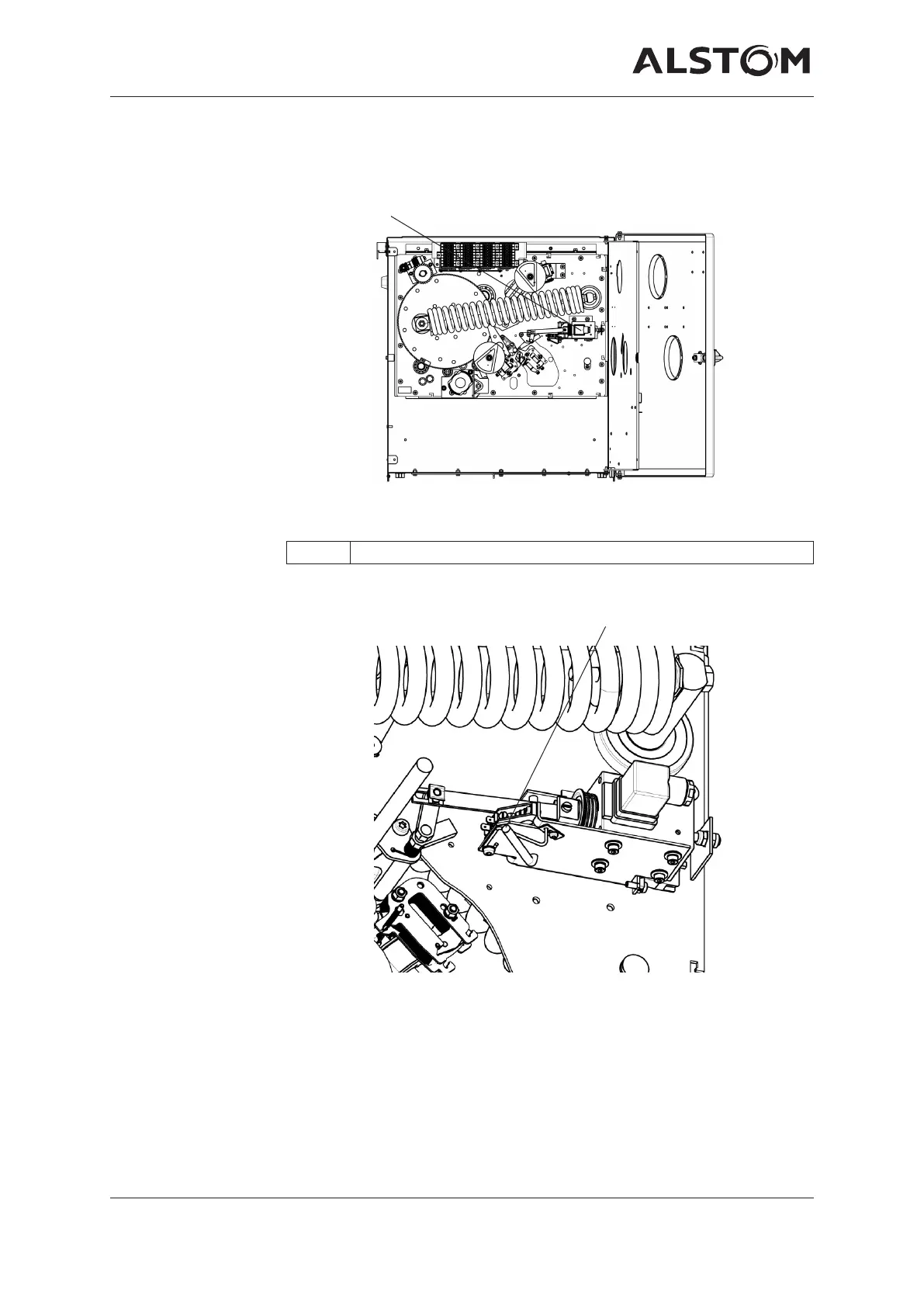

Undervoltage
release
•
If the motor-wound spring o
perating mec
hanism is equipp
ed with
under
voltag
e release and slow swi
tching on or of
f is nec
ess
ar
y
, the
under
voltag
e release must be blo
cked.
Illustration 1
8
71.
71
71.
71
Under
voltage release
Illustration 1
9
Blocking lev
er in opera
ting position
198
200
Table of Contents
Instruction Manual Installation
4
Table of Contents
4
P30- -0001En/02
31
P31- -0001En/02
33
P31- -0002En/02
37
P31- -0501En/03
43
P31- -2001En/03
55
P31- -5001En/02
61
P31- -7901En/02
65
P31- -9001En/02
73
P32- -0001En/03
77
P34- -0001En/03
85
Res 310 M
91
P51- -0001En/02
107
P51- -0501En/02
113
P51- -1001En/03
115
P51- -3001En/03
123
P51- -8001En/02
133
P60- -0001En/03
143
Ps0000/En
149
Motor-Wound Spring Operating Mechanism Fk 3-07 for Outdoor Circuit Breaker
177
Miscellaneous
178
Explanation of Symbols
179
Safety Notes
180
Staff
181
Technical Data
182
Introduction
184
Safety Precautions
184
Reference Documents
187
Possible Manual Operations
188
Slowly Switch on
189
Preparation of Motor-Wound Spring Operating Mechanism for Manual Operations
191
Slowly Switch off
205
Manually Discharge the Closing Spring
214
Finishing Work
220
Disposal
223
Spare Parts
223
Accident
224
User Evaluation
224
Key
