H48.020.249en/2
27/51
Manual Operations
Motor-wound spring operating mechanism FK3-07
for outdoor circuit breaker
26.04.2011
© ALSTOM
If Then
The closing spring is discharged,
• Charge the closing spring.
• Rotate the operating shaft 71.70
clockwise using a hand-held
tool with a jaw width 6 and the
crank wheel 70.30 will also rotate
clockwise.

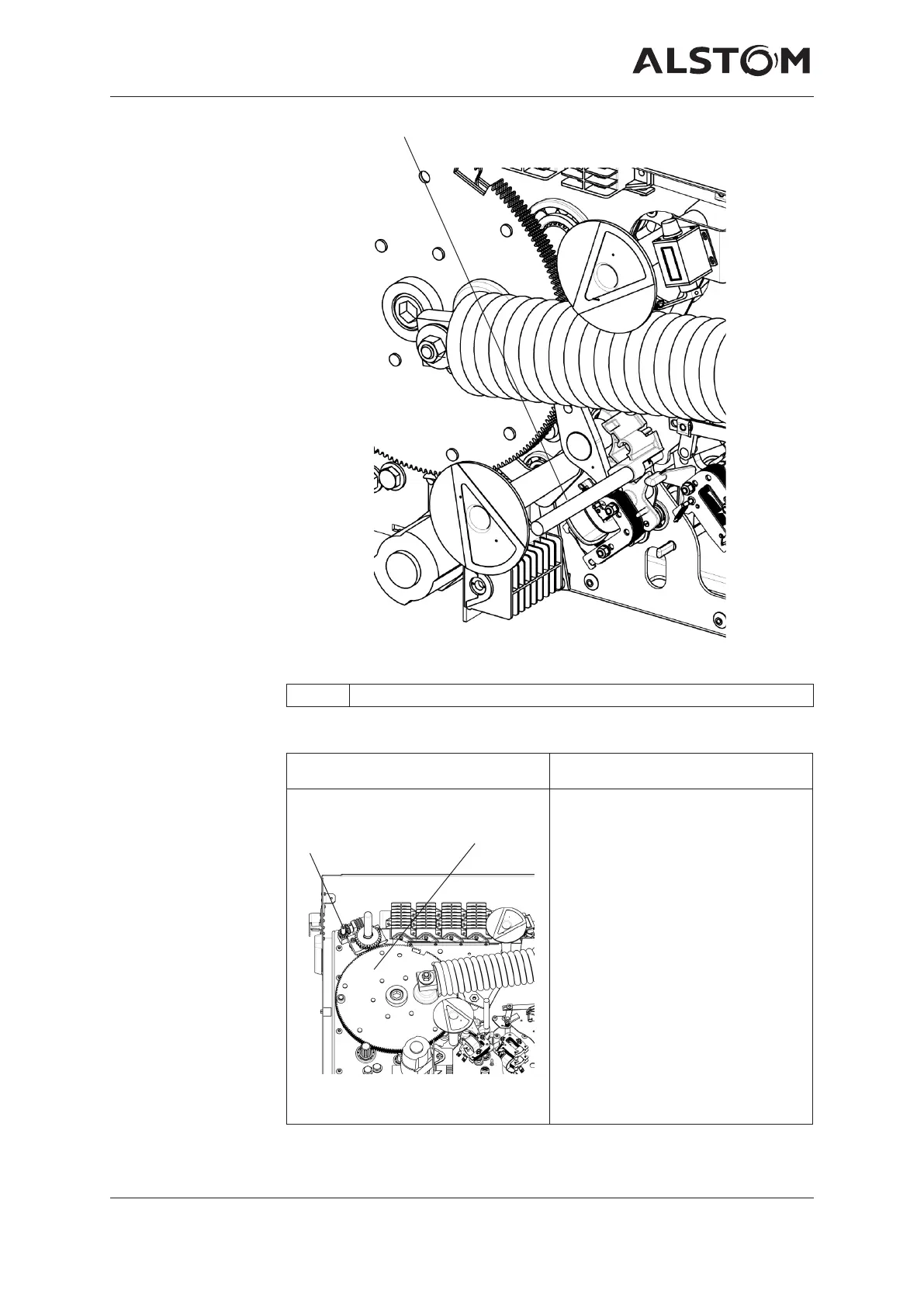

Illustration 21
71.56
71.56 Blocking device of tripping latch
Remove the
blocking device
of the tripping
latch
Illustration 22
71.70
70.30
To Next Page
