Installation
Erection general procedures
P31--0002EN/02
2/6
01--2011
© ALSTOM 2010. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be
relied on that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is
provided without liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is
strictly prohibited.
GRID
Preparing and installing static seals
Necessary products
List of the ALSTOM Grid products necessary for the installing :
ALSTOM
Grid
reference
Diagram Designation
--01861262 Can of ISOPRO PANOL (1l)
--01835265 MOLYKOTE 111 (100g tube)

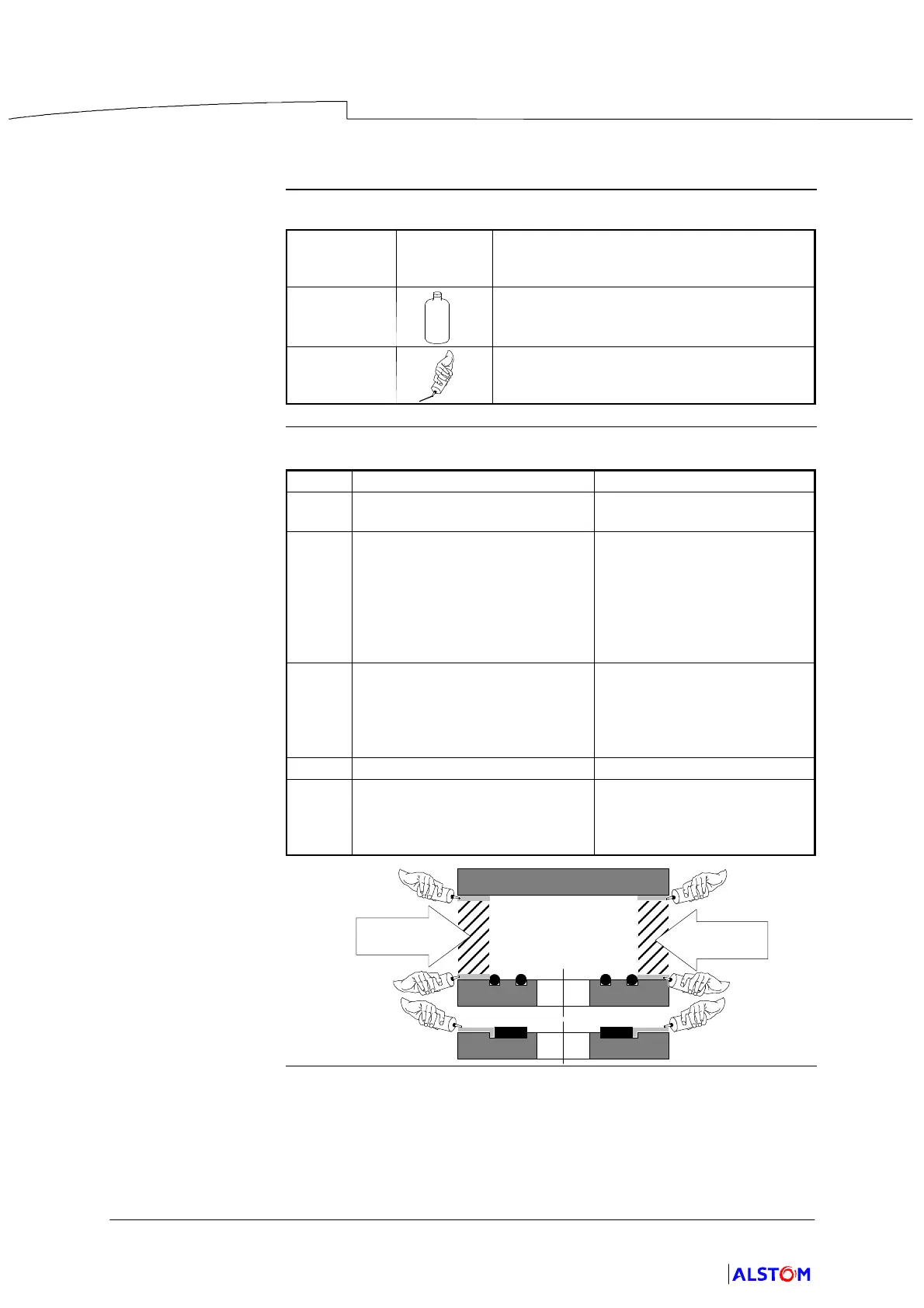

Process
The table below gives the steps of installing static seals :
Step Action Comment
1 Clean bearing grooves and
surfaces using ISOPROPANOL.
2 Rid the seal of all foreign bodies
such as paintbrush bristles or
filings...
Remove (where applicable) the
color identification point with
fingernail, never with a sharp
instrument.
Check the condition of the seal
which should present no
scratches or deformation (it
should be neither flattened,
stretched, nor broken).
3 Lightly lubricate the seal by hand
using MOLYKOTE 111 grease.
Do not use a brush to do this.
Eliminate excess grease by
squeezing the seal between
fingers, leaving only a thin layer
on the entire surface.
4 Put the seal(s) in place.
5 Lubricate both bearing surfaces
with MOLYKOTE 111.
Fill the residual volume of the
seal’s outside groove with grease.
Do not put grease on the inside
surface.
Only seals are
greased in this
zone
Greasing
zone
Greasing
zone
