Installation
Erection general procedures
P31--0002EN/02
5/6
01--2011
© ALSTOM 2010. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be
relied on that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is
provided without liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is
strictly prohibited.
GRID

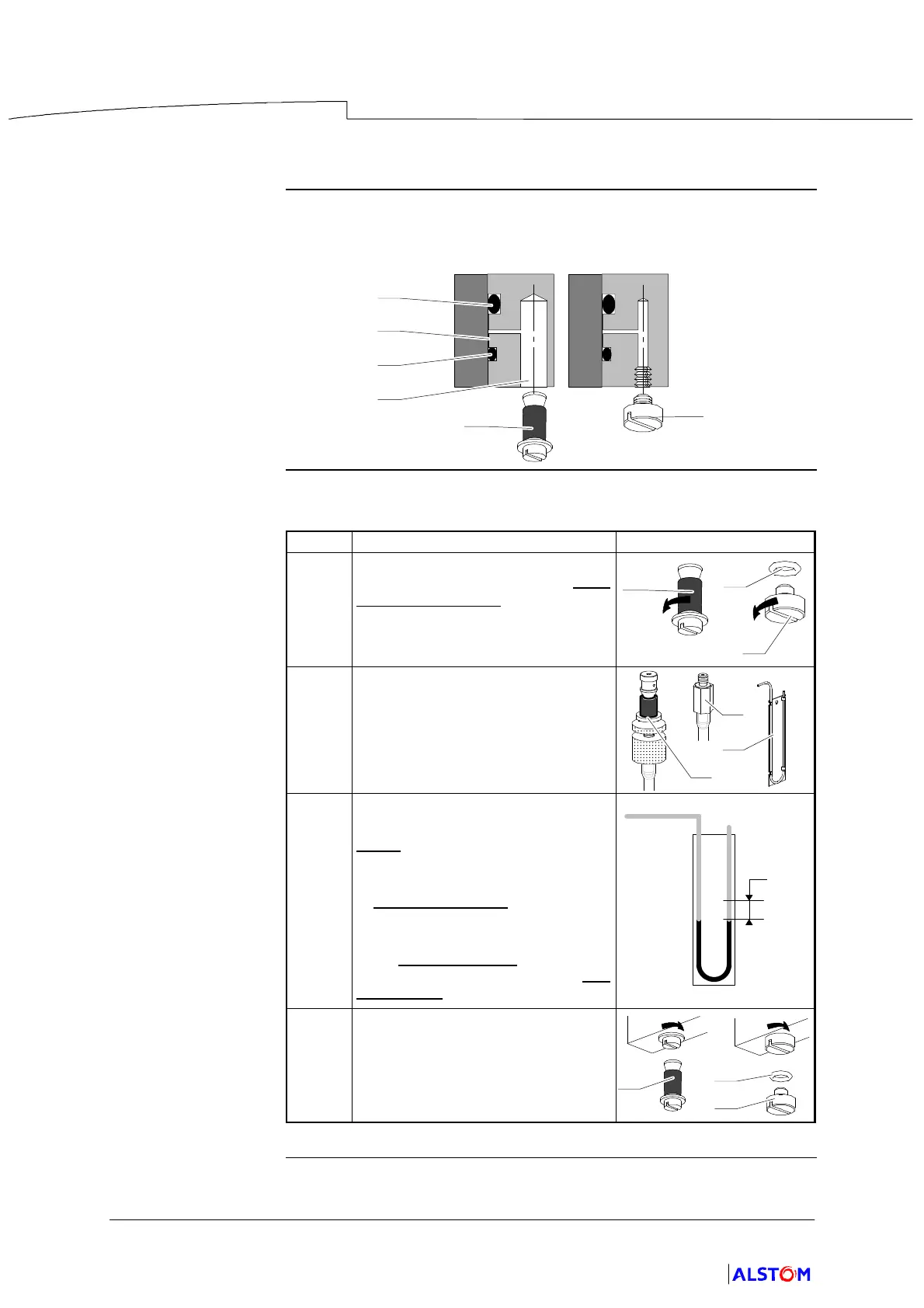

Using a water pressure gauge
Introduction
In each assemblage performed using a double seal (1) and (2), the volume
(3) communicates with the outside by a channel (4), blocked--off by a plug (5)
or (6), so that leak--tightness can be checked.
6
5
1
3
2
4
Process
The table below gives the steps of the leak--tightness checking using a water
pressure gauge :
Step Action Diagram
1 Remove the leak test plug (5) or (6)
and its seal (7) if necessary,
leave
open for half an hour
.
2...3 turns
5
7
6
2 Connect up the water pressure gauge
(8), using the adapter (9) or (10).
9
10
8
3 Fill the water pressure gauge’s U tube
to half way up.
NOTE
: If temperature is less
than 0°C, use an anti--freeze mix-
ture instead of water.
D After a few minutes
note the water
column level R1.
D Note the water column level R2
again after half an hour
.
The displacement H should be
less
than 10 mm
.
H
R1
R2
4 At the end of the inspection, pull the
adapter of the water pressure gauge
and replace the leak test plug (5) or (6)
and its seal (7), where required.
5
7
6
