Installation
Hoisting and in stalling the pole
P31--2001EN/03
2/6
01--2011
© ALSTOM 2010. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be
relied on that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is
provided without liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is
strictly prohibited.
GRID
Preparing the pole
Instructions

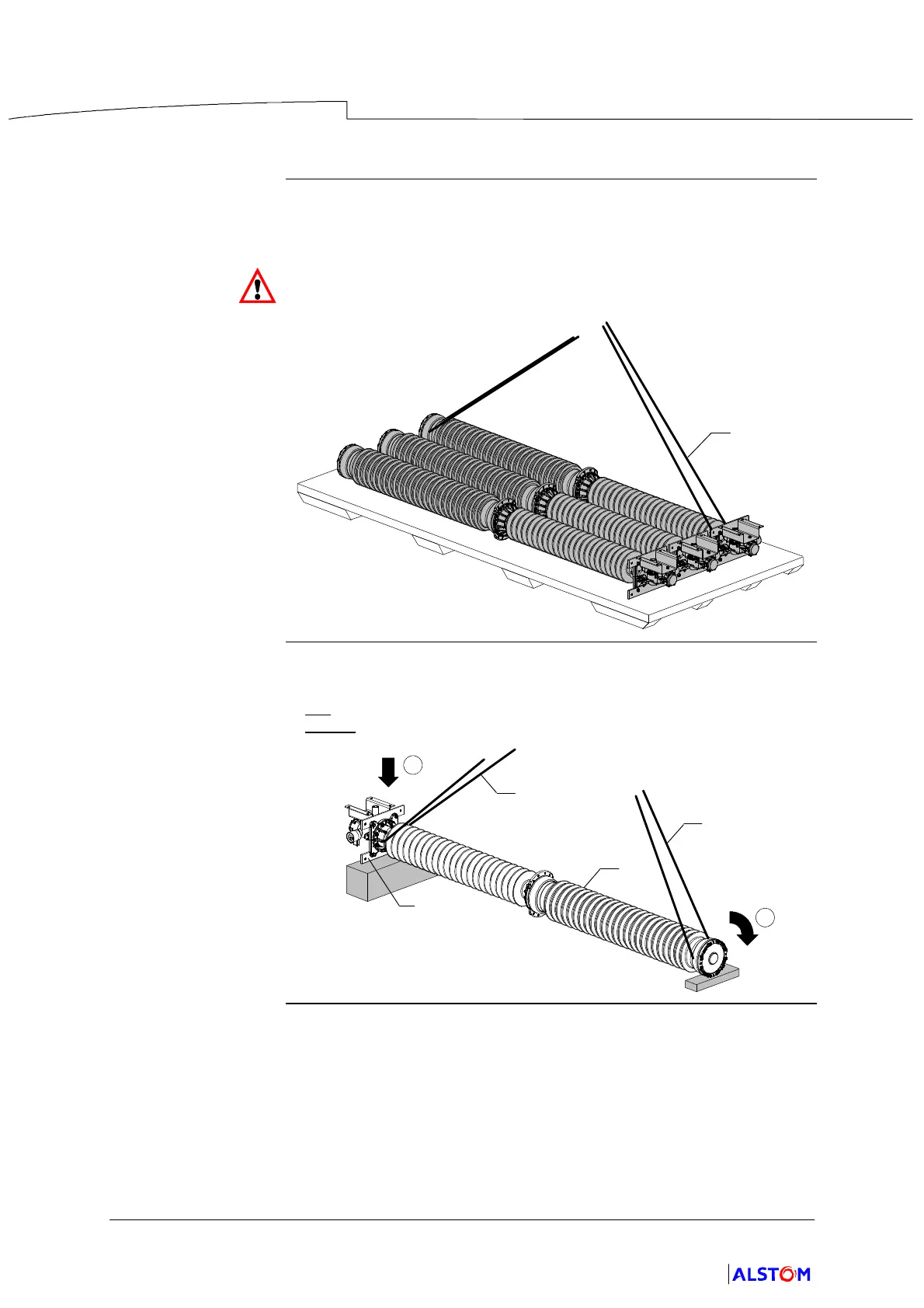

Remove the side panels from the case.
Sling the pole to the two ends using the flexible straps (3).
Using a hoisting device, carefully raise the pole.
3
D Take the pole from the case and place it on the ground on the cover of
the case, by placing :
-- f i r s t
, the upper casing base plate (5) on a wooden shim.
-- second
, the end of the breaking chamber (4) on a wooden shim.
3
4
5
1
2
3
Continued on next page.
