Installation
Fitting the power supply terminals
with preparation of the contact surfaces
P31--5001EN/02
2/4
01--2011
© ALSTOM 2010. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be
relied on that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is
provided without liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is
strictly prohibited.
GRID
Preparing the contact surfaces
Preparing the
contact grease
The contact grease is a mix of Vaseline and Contactal grease.
CONTACT GREASE = 50% Vaseline + 50% Contactal grease
Preparing the
contact surfaces

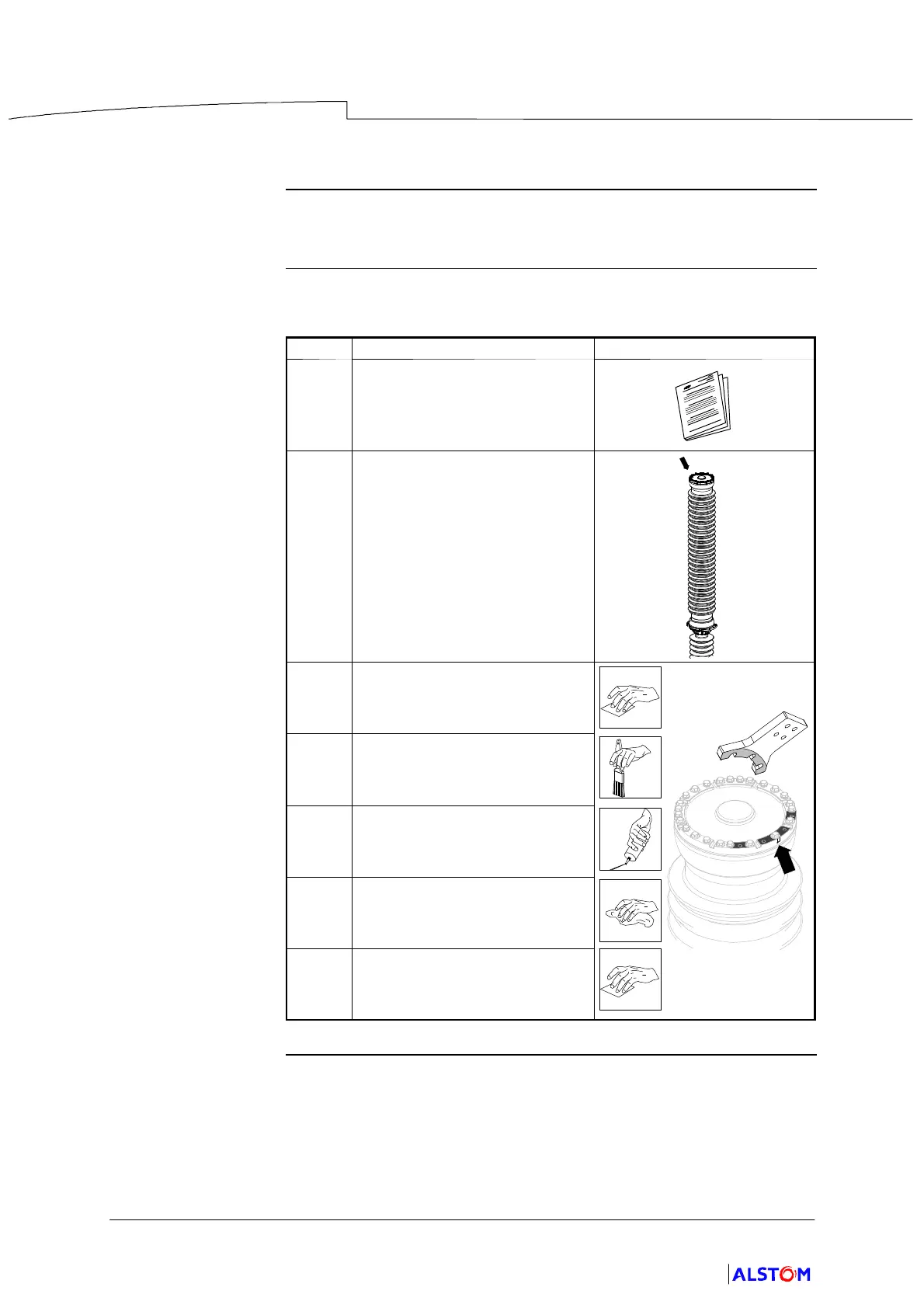

The table below shows the steps for preparing the contact surfaces :
Step Action Illustration
1
Verify the orientation of the power
supply terminals using the
diagram of the apparatus.
2
Remove the temporary screws
from the X1 plate.
X1
3 Sand with fine emery cloth.
4 Remove all resulting dust.
5 Coat with CONTACT GREASE.
6 Wipe with a clean cloth to avoid
leaving even a tiny particle.
7 Use the A400 sandpaper, and
sand on top of the grease.
