4 INSTALLING AND CONNECTING THE PVR
4.1 LOOP THROUGH CONNECTION: ( IMPORTANT )

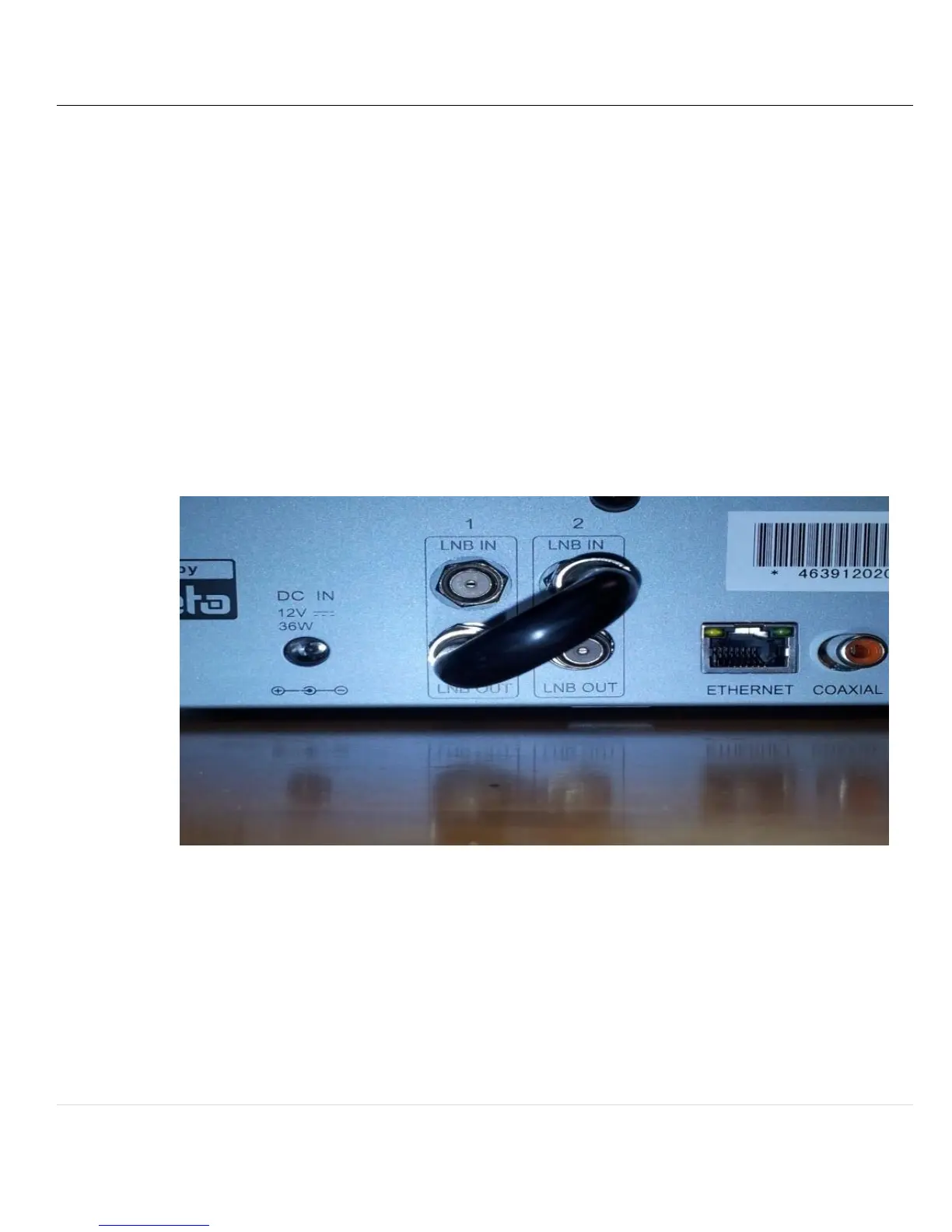

4.1.1 Connect the Loop through F-F connector on LNB1 out to LNB 2
in –see the below picture
WITHOUT THIS LOOPED CONNECTION THE PVR WILL
NOT FUNCTION.
FOR ASSISTANCE EMAIL - SUPPORT@UEC.COM.AU
