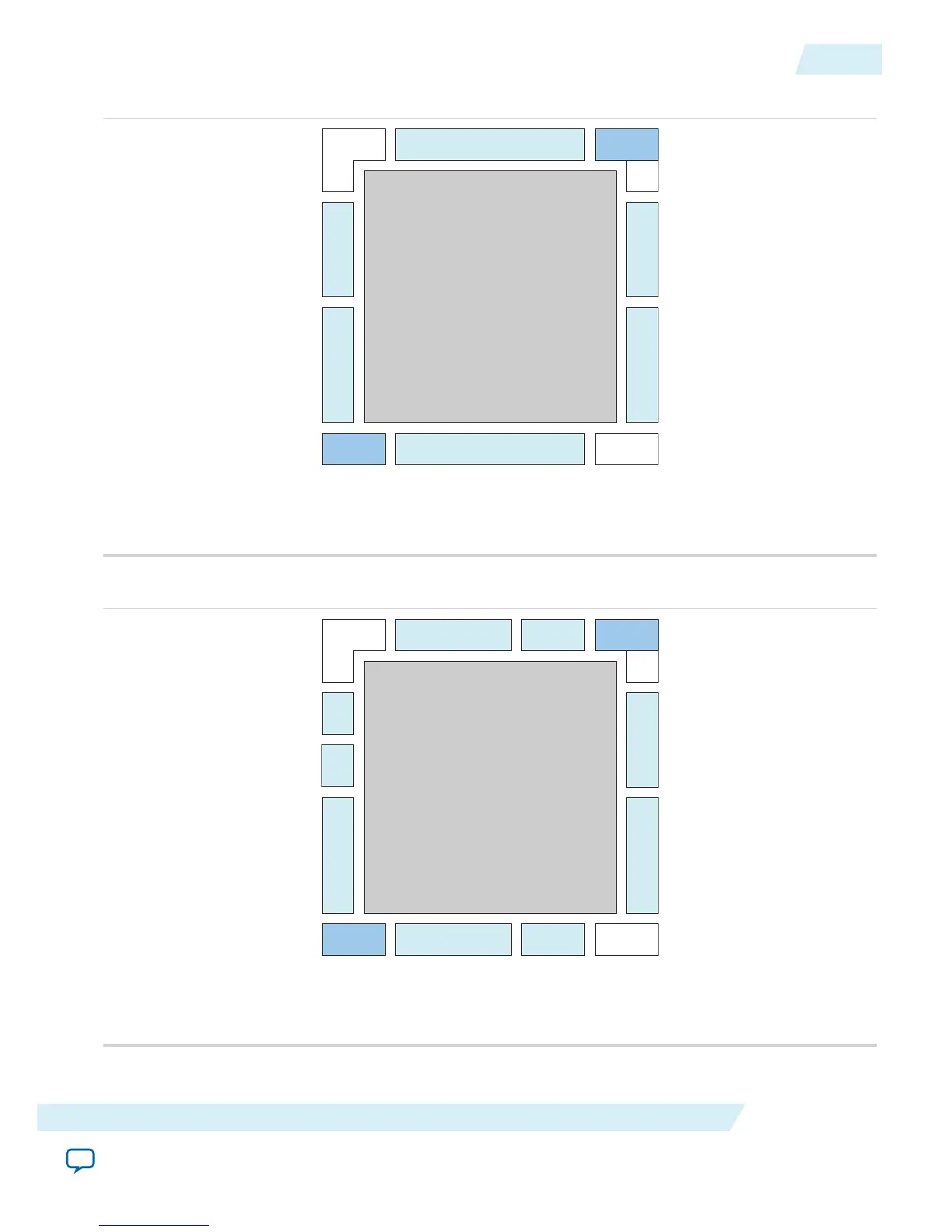

Figure 2-8: PLL Locations for 10M02 Device
Bank 8
Bank 3
Bank 1Bank 2 Bank 6Bank 5
PLL 1 (1)
PLL 2 (2)
Notes:
(1) Available on all packages except V36 package.
(2) Available on U324 and V36packages only.
Figure 2-9: PLL Locations for 10M04 and 10M08 Devices
Bank 8
Bank 1A
Bank 2
Bank 6Bank 5
PLL 1 (1)
PLL 2 (2)Bank 7
Bank 3 Bank 4
Bank 1B
Notes:
(1) Available on all packages except V81 package.
(2) Available on F256, F484, U324, and V81 packages only.
UG-M10CLKPLL
2015.06.12
PLL Locations
2-11
MAX 10 Clocking and PLL Architecture and Features
