Drive Overview

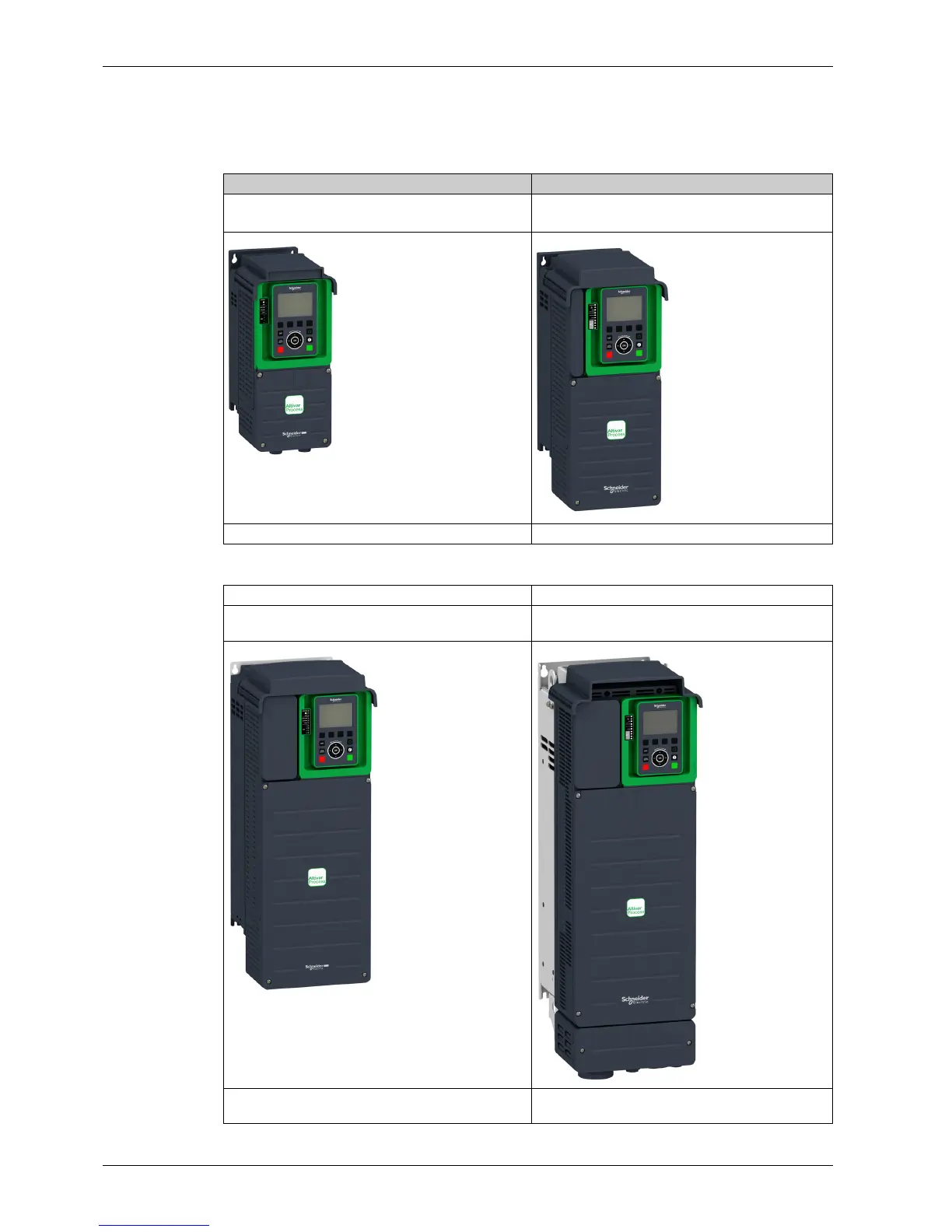

Frame Sizes for IP21 Products
The family of Altivar Process includes 6 frame sizes for IP21 products.
Frame size 1 Frame size 2
z 3-phase 200...240 V, 0.75...4 kW, 1...5 HP
z 3-phase 380...480 V, 0.75...5.5 kW, 1...7
1/2
HP
z 3-phase 200...240 V, 5.5 kW, 7
1/2
HP
z 3-phase 380...480 V, 7.5...11 kW, 10...15 HP
ATV630U07M3...U40M3, ATV630U07N4...U55N4 ATV630U55M3, ATV630U75N4, ATV630D11N4
Frame size 3 Frame size 4
z 3-phase 200...240 V, 7.5 kW, 11 kW, 10 HP, 15 HP
z 3-phase 380...480 V, 15...22 kW, 20...30 HP
z 3-phase 200...240 V 15...22 kW, 20...30 HP
z 3-phase 380...480 V, 30...45 kW, 40...60 HP
ATV630D11M3, ATV630U75M3,
ATV630D15N4...D22N4
ATV630D15M3...ATV630D22M3,
ATV630D30N4...ATV630D45N4
