Arrangement and Characteristics of Control Block Terminals and Communication and I/O Ports

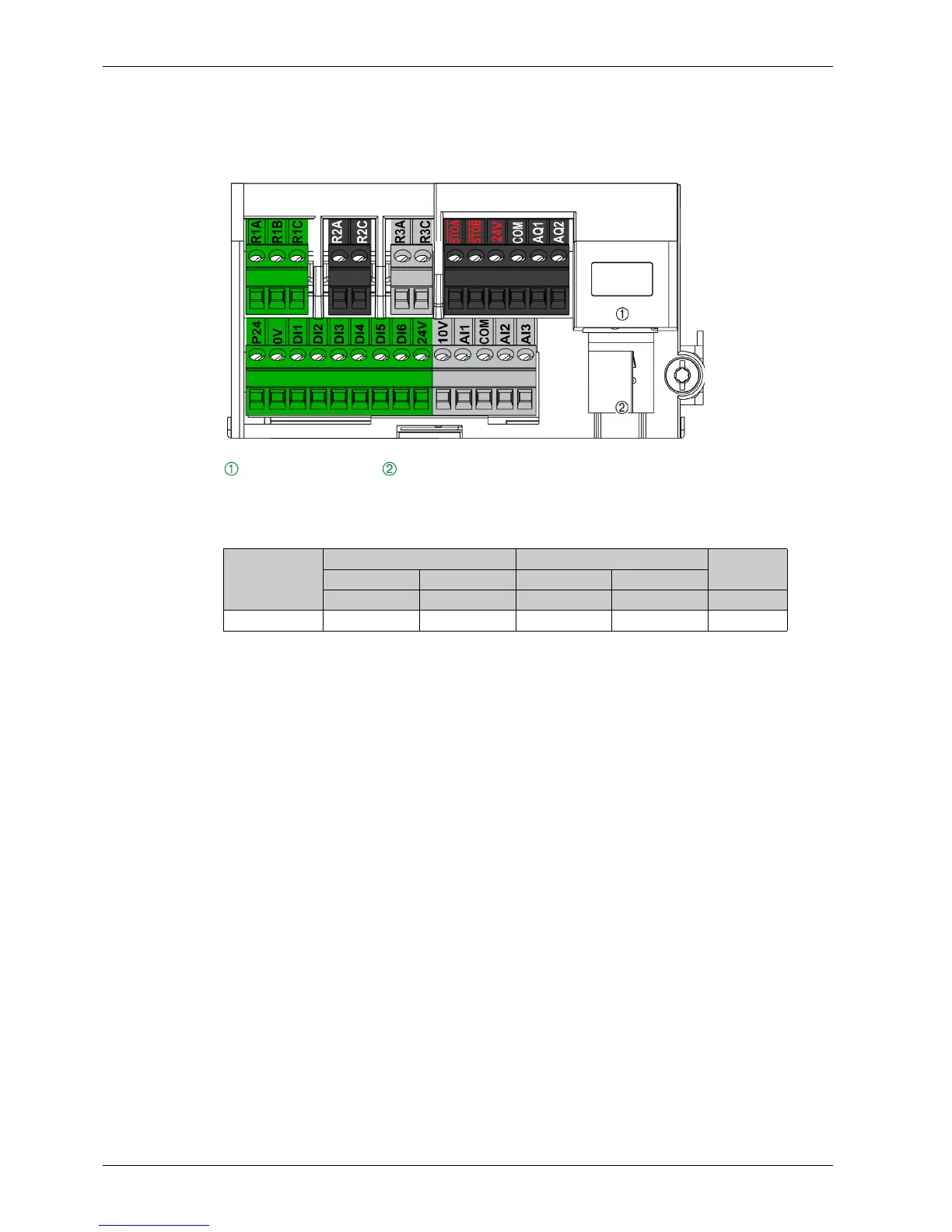

Terminal Arrangement
The control block terminals are the same for all drive frame sizes.
Ethernet Modbus TCP, serial Modbus
Wiring Characteristics
Wire cross sections and tightening torques
(1) The value corresponds to the minimum permissible cross section of the terminal.
NOTE: Control Terminal Electrical data. (see page 86)
Control
Terminals
Relay Output Wire Cross Section Other Wire Cross Section Tightening
Torque
Minimum (1) Maximum Minimum (1) Maximum
mm² (AWG) mm² (AWG) mm² (AWG) mm² (AWG) N•m (lb.in)
All terminals 0.75 (18) 1.5 (16) 0.5 (20) 1.5 (16) 0.5 (4.4)
