EAV64301 01/2015 89

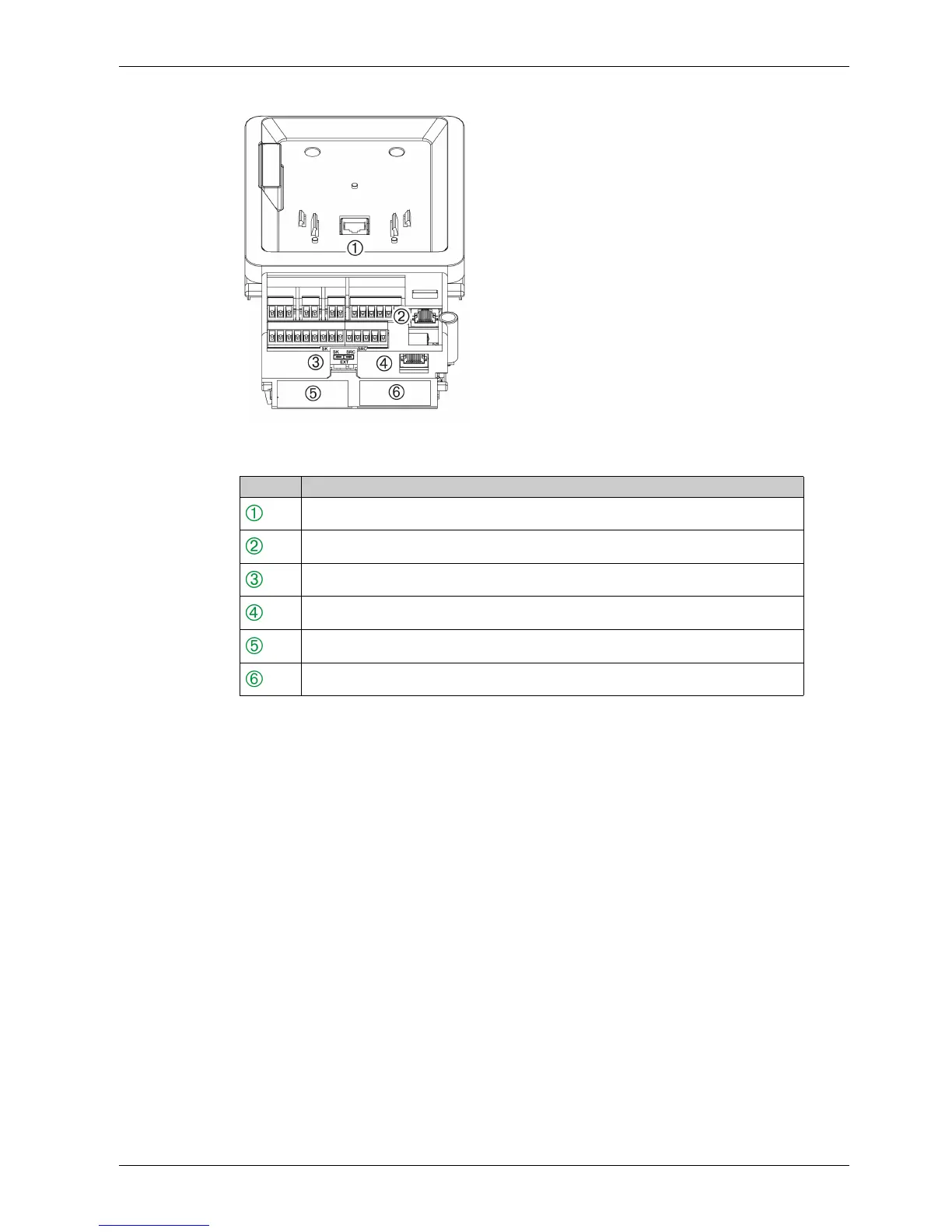

Control Block Ports
Legend
RJ45 Communication ports
The control block includes 3 RJ45 ports.
They allow to connect:
z A PC
z Using a commissioning software (SoMove, SoMachine...), to configure and monitor the drive
z To access the drive webserver
z A SCADA system
z A PLC system
z A Graphic Display terminal, using Modbus protocol
z A Modbus fieldbus
NOTE: Verify that RJ45 cable is not damaged prior to connect it to the product otherwise the power supply
of the control could be lost.
Marking Description
RJ45 port for Graphic display terminal
RJ45 port for Ethernet embedded
Sink-Ext-Source switch (see page 50)
RJ45 port for Modbus embedded
I/O module slot
Fieldbus, and I/O module slot
