pg. 12 TH/III Ins Talla TIon/opera TIon/servIce manual
SITE INSTALLATION
INSTALLATION

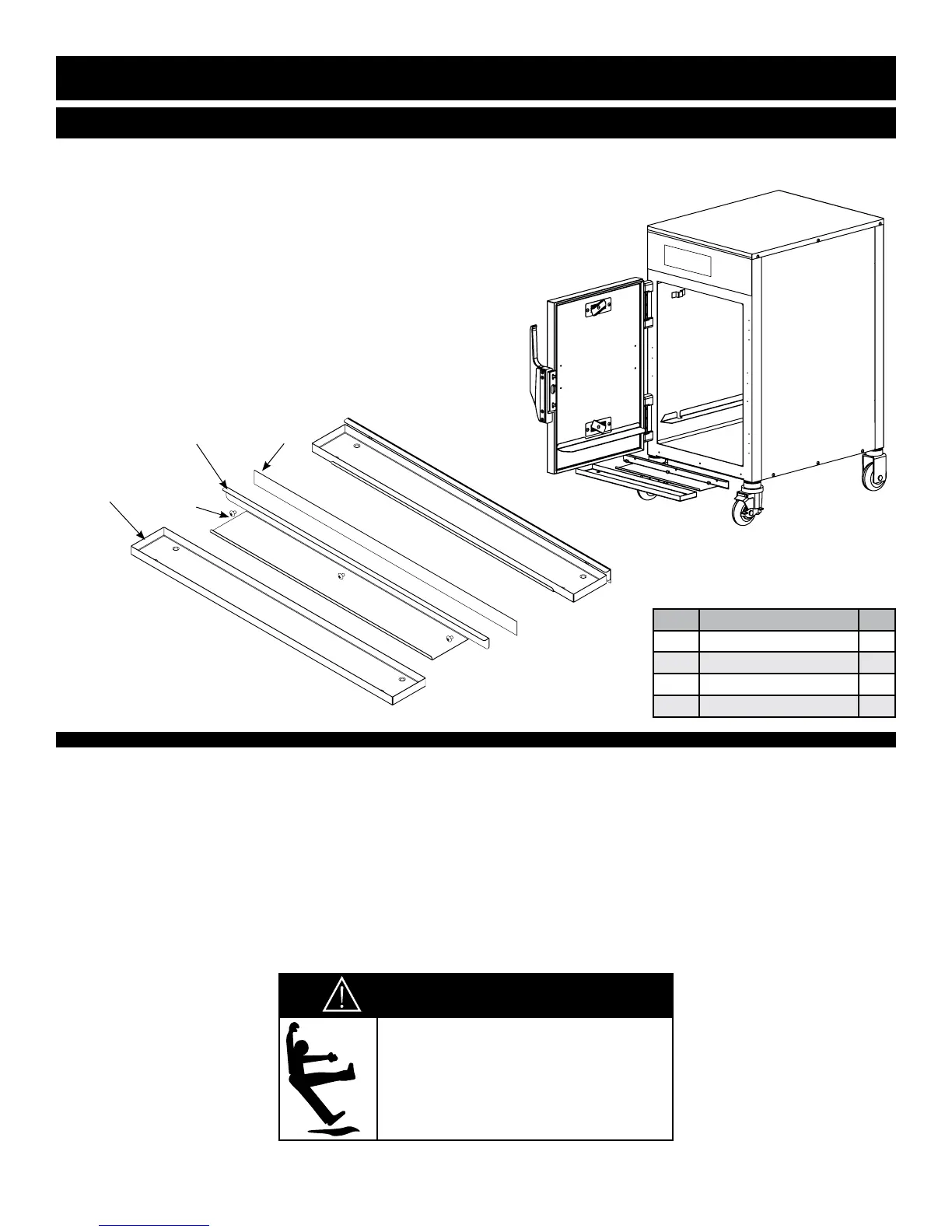

DRIP TRAY INSTALLATION INSTRUCTIONS - 500, 750, 1000, 1200
WARNING
FAILURE TO PROPERLY INSTALL
THE DRIP TRAY CAN OR WILL
CAUSE MAJOR EQUIPMENT
DAMAGE AND WILL RESULT IN
A LEAKAGE HAZARD THAT CAN
CAUSE PERSONAL INJURY.
1. Poke holes through double-sided tape a which is attached to the back of drip tray holder b.
2. Remove backing on double-sided tape a.
3. Put screws c through holes and attach drip tray holder b to unit.
4. Optional, but strongly recommended - apply a line of food-grade silicone caulk along top edge
of drip tray holder b to seal.
5. Place drip tray d in drip tray holder b.
a
b
c
d
Item Description Qty
1 Double-Sided Tape 1
2 Drip Tray Holder 1
3 8-32 x 1/4” Phil Screw 3
4 Drip Tray 1
