Alto-Shaam 300-TH/III

pg. 36 TH/III Ins Talla TIon/opera TIon/servIce manual

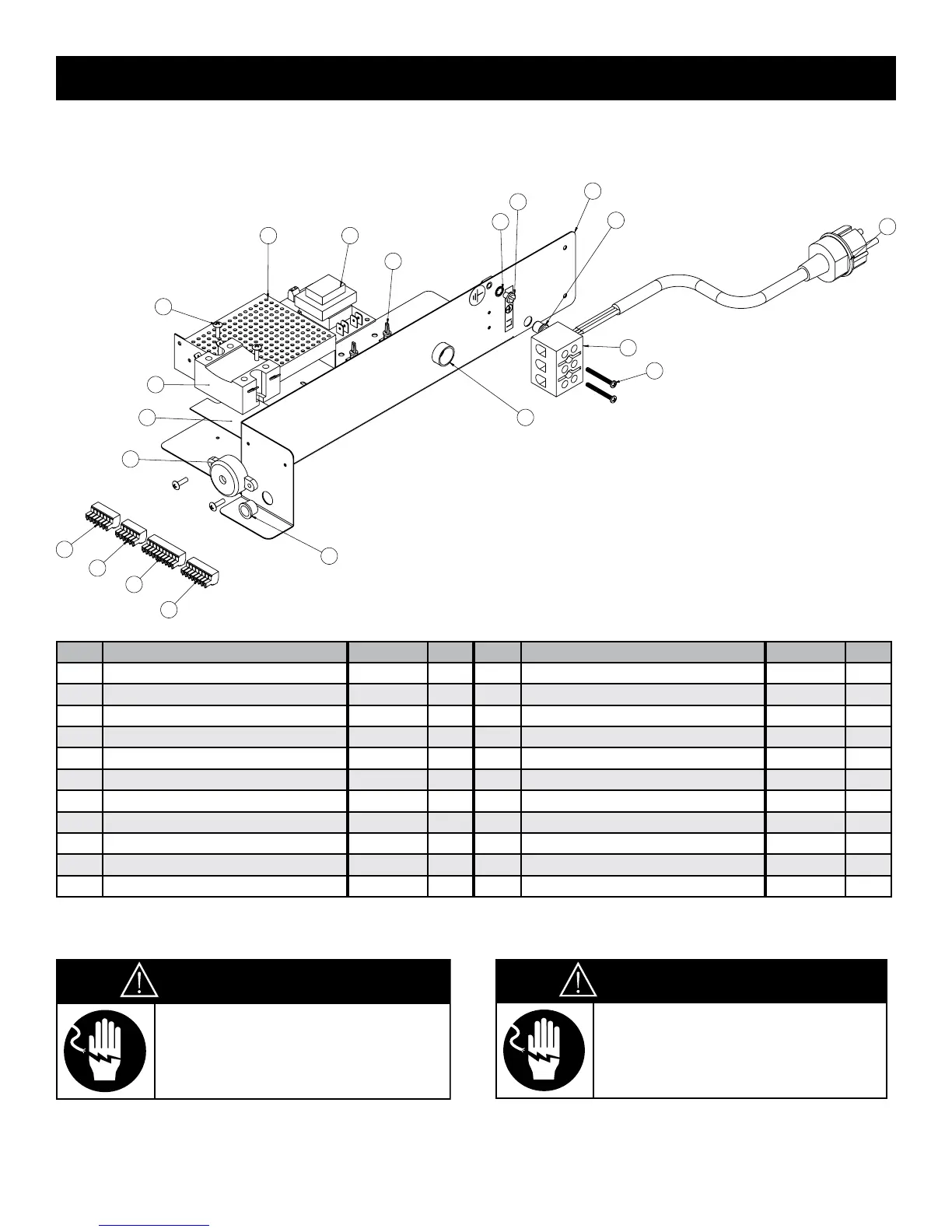

ELECTRONIC COMPONENTS - 300-TH/III
SERVICE
5
4
3
1
2
8
6
7
20
1918
15
16
17
14
9
13
12
11
10
230V Shown
Part numbers and drawings are subject to change without notice.
ITEM DESCRIPTION PART NO. QTY ITEM DESCRIPTION PART NO. QTY
1 WASHER, STAR LOCK WS-2467 1 11 CONNECTOR, 10 PIN CR-33717 1
2 SCREW, 10-32 X 1/4" PAN HD GROUND SC-2190 1 12 CONNECTOR, 7 PIN CR-33762 1
3 ELECTRIC CHASSIS, SPOT 5014530 1 13 CONNECTOR, 8 PIN CR-33761 1
4 BUSHING, 3/8" BLACK HOLE BU-3419 1 14 BEEPER BP-3567 1
5 CORDSET - 230V, 8FT. (2438mm) CD-3922 1 15 HEATSINK HE-33926 1
CORDSET - 120V, 5FT. (1524mm) CD-3397 1 16 RELAY RL-33829 1
6 T-BLOCK BK-3019 1 17 SCREW, 6-32 X 1/2" NC PHIL TRUSS SC-2472 6
7 SCREW, 6-32 X 1-1/4" ROUND HD SC-2365 2 18 BOARD, POWER SUPPLY BA-33554 1
8 BUSHING, HOLE, 3/4” BU-3008 19 BOARD, VOLTAGE MONITOR BA-33764 1
9 BUSHING, HOLE, 1/2" BU-3006 1 20 SPACER, LOCK MOUNT SP-33832 4
10 CONNECTOR, 6 PIN CR-33719 1
DANGER
DISCONNECT UNIT FROM
POWER SOURCE BEFORE
CLEANING OR SERVICING.
DANGER
LOCK-OUT OR POST
BREAKER PANEL UNTIL
SERVICE WORK HAS
BEEN COMPLETED.
