Alto-Shaam AR-7E

SERVICE
MN-28657 (Rev 1) 03/15 • AR-7E Rotisserie • 30
Part numbers and drawings are subject to change without notice.Part numbers and drawings are subject to change without notice.
2
1
7
5
6
3
4

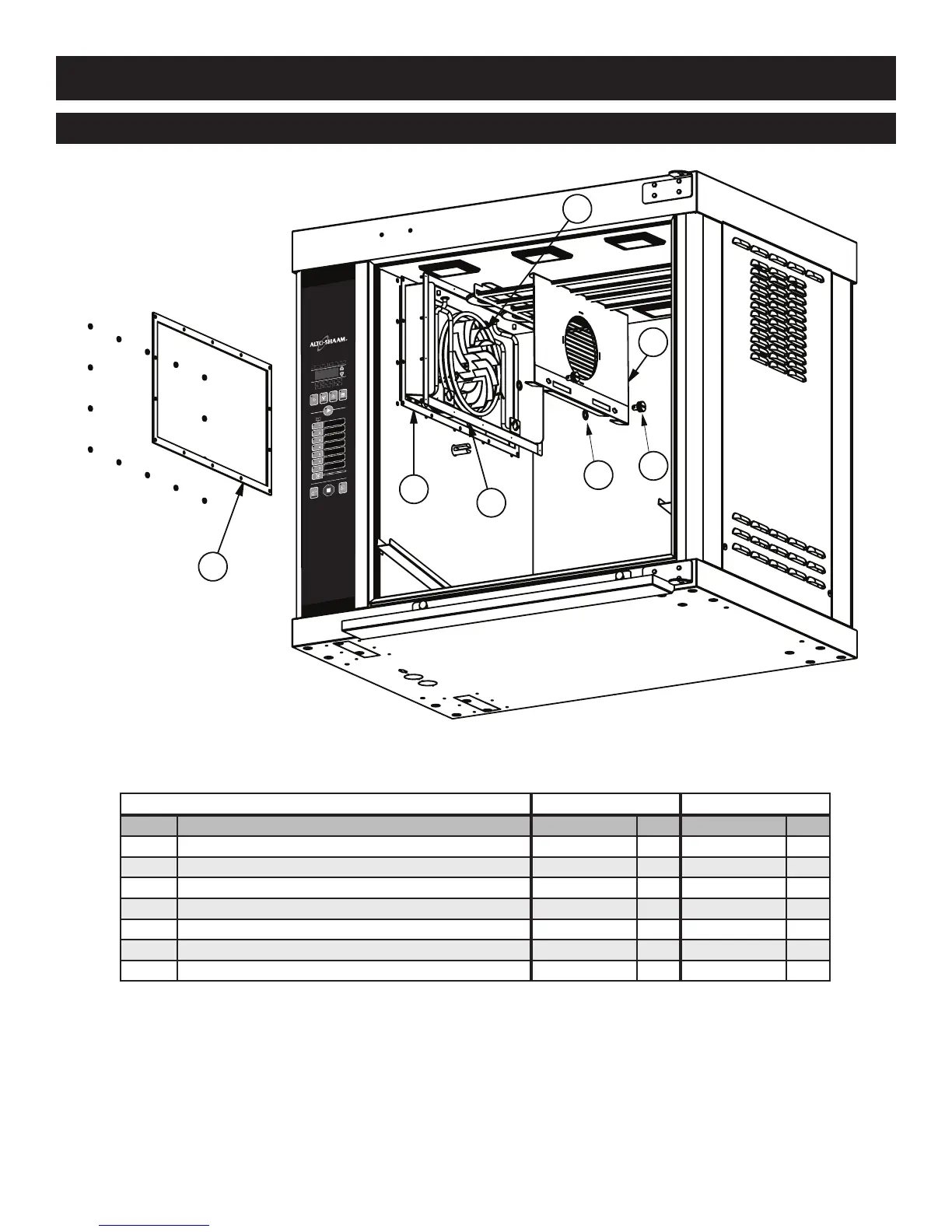

INTERIOR VIEW
MODEL > CURVED DOOR FLAT DOOR
ITEM DESCRIPTION PART NO. QTY PART NO. QTY
1 BRACKET, ELEMENT 1003595 1 1003595 1
2 WELDMENT, COVER, BLOWER 5005782 1 5005782 1
3 BLOWER COVER SCREW CL-24089 2 CL-24089 2
4 BLOWER COVER SCREW LOCK WASHER WS-24090 2 WS-24090 2
5 STUDWELD (SPOT) DUCT, BLOWER 5005848 1 5005848 1
6 GASKET, AIR BOX GS-27389 1 GS-27389 1
7 PLATE, SUPPORT 1006650 1 1006650 1
