Alto-Shaam AR-7E

SERVICE
MN-28657 (Rev 1) 03/15 • AR-7E Rotisserie • 32
Part numbers and drawings are subject to change without notice.
SERVICE
Part numbers and drawings are subject to change without notice.
“A”
A
B
“B”
1
2
3
4
8
7
6
5

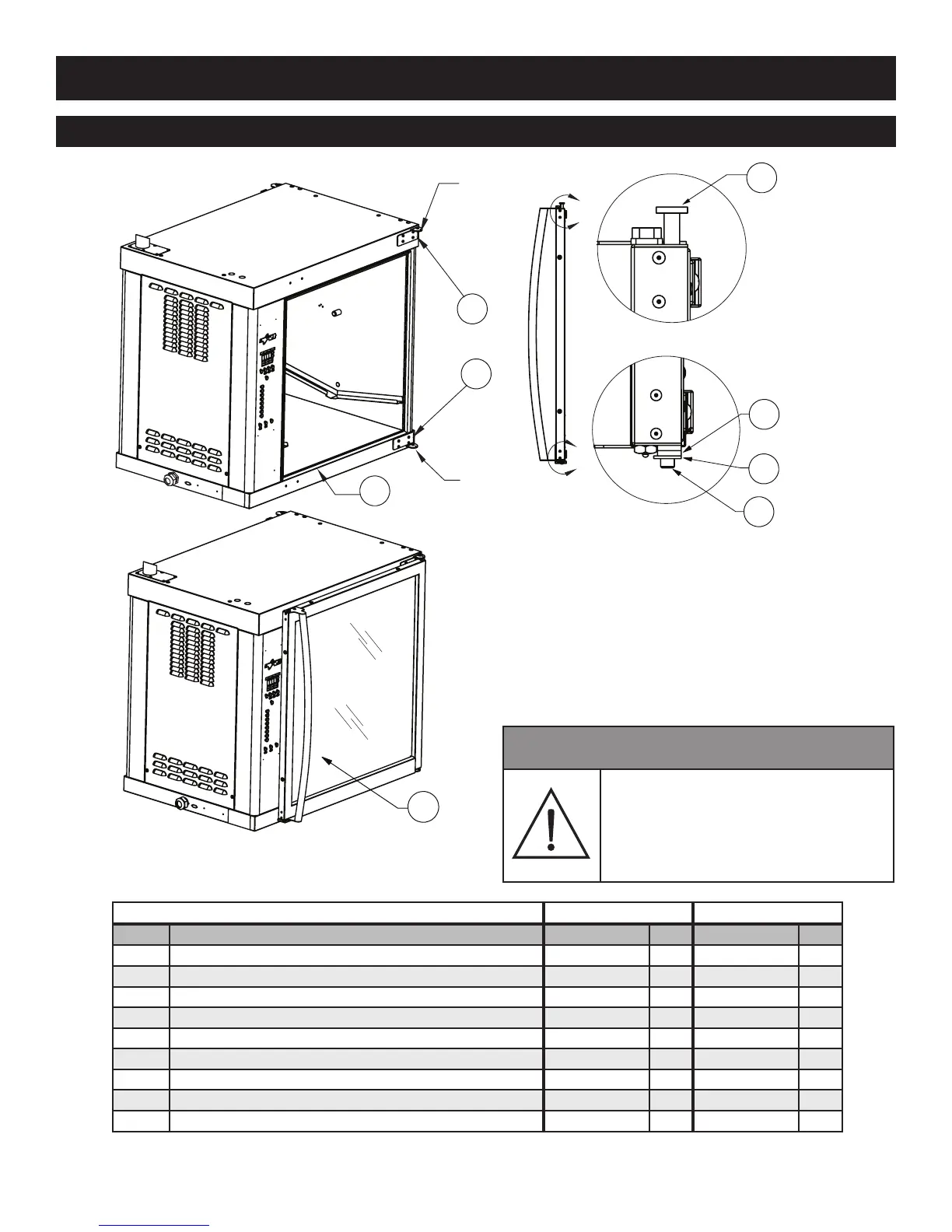

REPLACEMENT OF GLASS DOOR (FLAT DOOR SHOWN)
DOOR REPLACEMENT:
STEP 1: REMOVE TOP PIN (PI-26350) FROM BRACKET
"A" USING A SMALL SCREWDRIVER.
STEP 2: ASSEMBLE DOOR ON UNIT WITH SPACERS
AS SHOWN (DETAIL B).
STEP 3: MAKE CERTAIN DOOR IS ALIGNED AND
REINSERT TOP PIN.
MODEL > CURVED DOOR* FLAT DOOR
ITEM DESCRIPTION PART NO. QTY PART NO. QTY
1 PIN, DOOR, TOP PI-26350 1 PI-26350 1
2 SPACER 1002143 1 1002143 1
3 WASHER WS-22298 1 WS-22298 1
4 PIN, DOOR, BOTTOM PI-26352 1 PI-26352 1
5 ASSEMBLY, DOOR, CONTROL SIDE 5006779 1 5009591 1
ASSEMBLY, DOOR, NON-CONTROL SIDE 5007824 1 5009815 1
6 GASKET, DOOR GS-25753 1 GS-25753 1
7 HINGE, LOWER, DOOR 1007673 1 1007673 1
8 HINGE, UPPER, DOOR 1007672 1 1007672 1
DETAIL A
DETAIL B
*Not sHowN
WARNING
DO NOT ATTEMPT TO REMOVE THE
DOOR WITHOUT ASSISTANCE. THE
DOOR IS EXTREMELY HEAVY, WILL
BE DAMAGED IF DROPPED, AND
MAY CAUSE SERIOUS INJURY.
