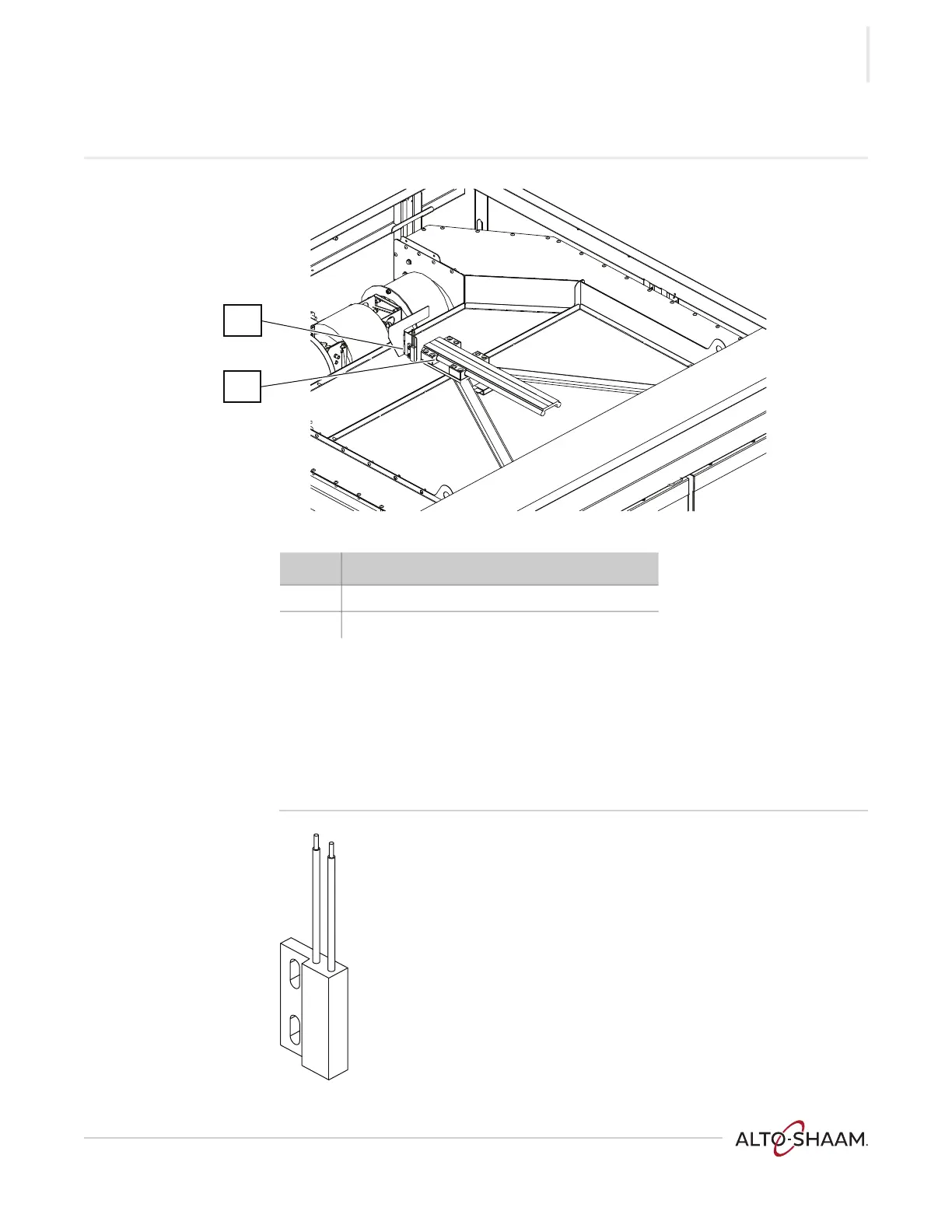

Top Panel Component Identification
Door Switch
▪ Door closed 0 Ohms; 0 VDC across terminals 1 and 2 of connector P3 on the
control board.
▪ Door open Infinite Ohms; 8 VDC across terminals 1 and 2 of connector P3 on the
control board.
VMC-PHD-010701
1
2
Ref. Description
1 Door switch
2 Door closure mechanism
VMC-PHD-010704
