Alto-Shaam Vector VMC-F3E Service Manual

COMPONENTS
Ve ctor F® Se ries ▪ S ervice Ma nual ▪ M N- 46 89 5 ▪ R ev 1 ▪ 7/ 20
48

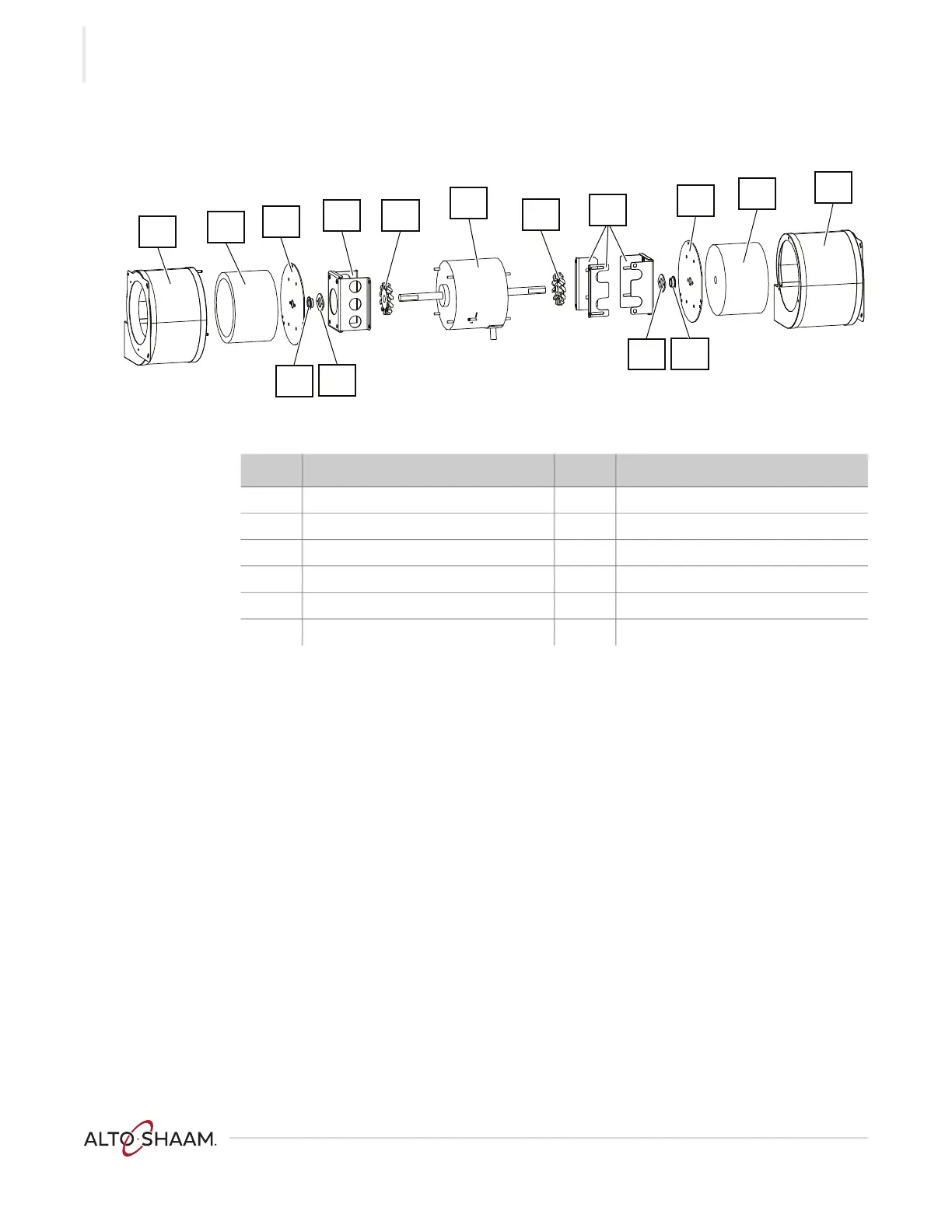

Blower Motor Assembly
3
1
2
VMC-PHD-003802
11
10
3
7
9
8
6
5
4
4
5
7
Ref. Description Ref. Description
1 Blower housing, left side 7 Radial blower wheel, 12-blade
2 Wheel, blower, left side 8 Motor, double shaft
3 Plate, motor mounting 9 Bracket, adjustable, motor mount
4 Bushing 10 Wheel, blower, right side
5 Plate, seal retainer 11 Blower housing, right side
6 Bracket, motor mount, left side — —
