AUX RETURNS
CTRL ROOM
/PHONES
-6
-12
-18
LR
CLIP
0
6
-24
-30
OUTPUT LEVEL
TO
MAIN
MIX
TO
AUX1
MON
MAIN
OFF
CD/TAPE
TO MAIN MIX
CD/TAPE IN
MAIN MIX
CD/TAPE
MAIN
OFF ON
+10
-
8
+10
-
8
+10
-
8
+10
-
8
+10
-
8
POWER
PHANTON
48V
8
SPOTLIGHT

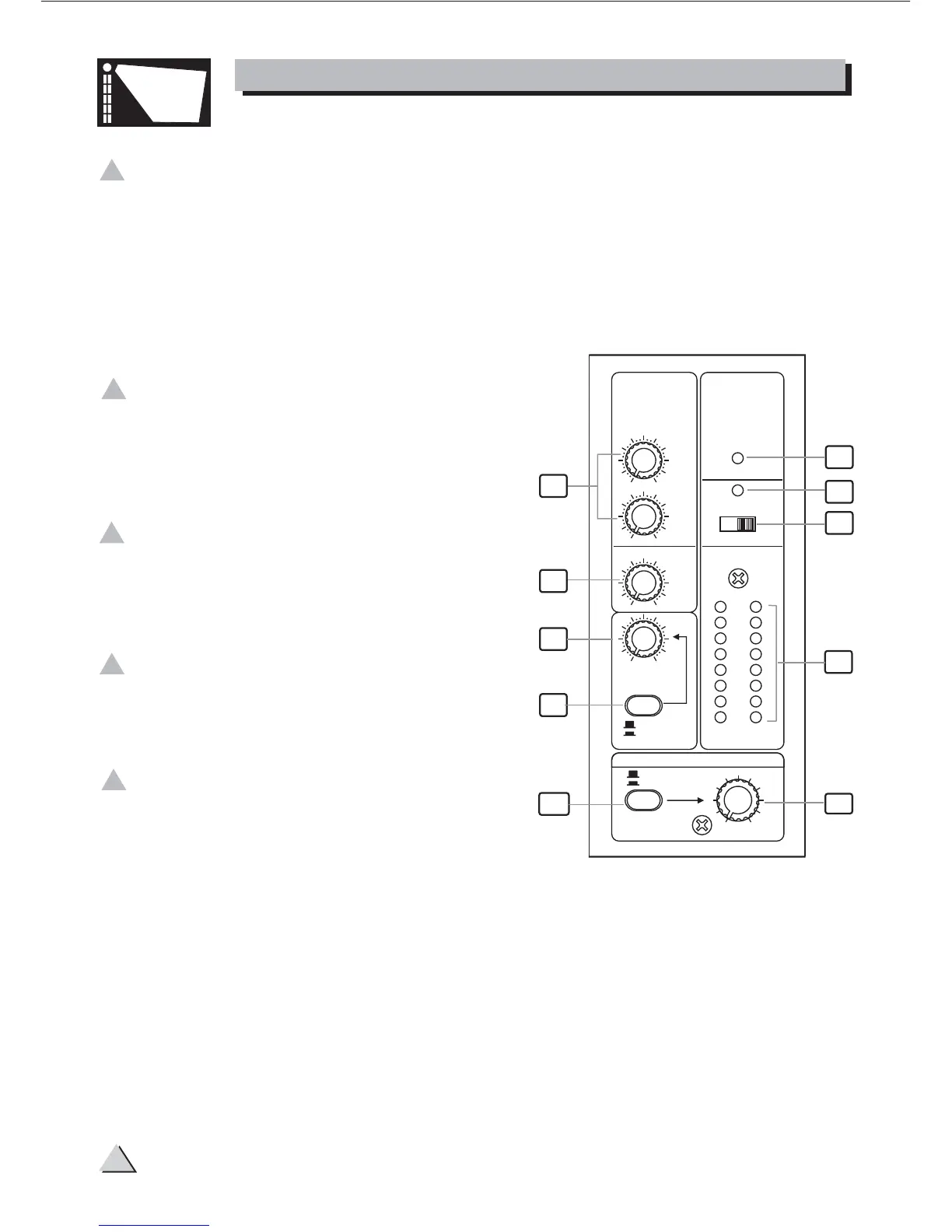

4. CONTROL ELEMENTS
18
19
21
23
24
22
20
25
26
27
If you turn this control up, you will boost all frequencies below 80 Hz. You will
give more punch to bass drums and bass guitar; and you will make the male
vocalist more "macho". Turn it down and you will cut all the frequencies below
80 Hz. In this way you can avoid low-frequency vibrations and resonance thus
preserving the life of your woofers.
MASTER SECTION
18 MAIN MIX LEVEL
This knob controls the level of the signal
sent to MAIN OUTPUTS and CD/TAPE
OUT. Also AUX RETURNS and CD/TAPE
IN signals will be sent to this control.
19 PHONES/CONTROL ROOM LEVEL
20 CD/TAPE IN
This knob controls the signal sent to
CONTROL ROOM OUTPUT & PHONES
OUTPUT.
This knob controls the signal sent from
CD/TAPE IN.
21 OUTPUT LEVEL METERS
These consist of two column of 8 LEDs
each ranging from -30 dB to +18 dB
(CLIP). The 0 LED corresponds to a level
output of 0 dBu. The CLIP LEDs come
to life when the output reaches +18 dBu.
Set the MAIN MIX level control so that the CLIP LEDs only flashes occasionally.
In general, you get a good mix level when the Meter LEDs operate in the range
0 to +6. If you exceed +6, you will get distortion. If even -30 LEDs are sleeping
your signal-to-noise ratio will suffer.
17 LOW
