2
3. CONTROL ELEMENTS
SPOTLIGHT

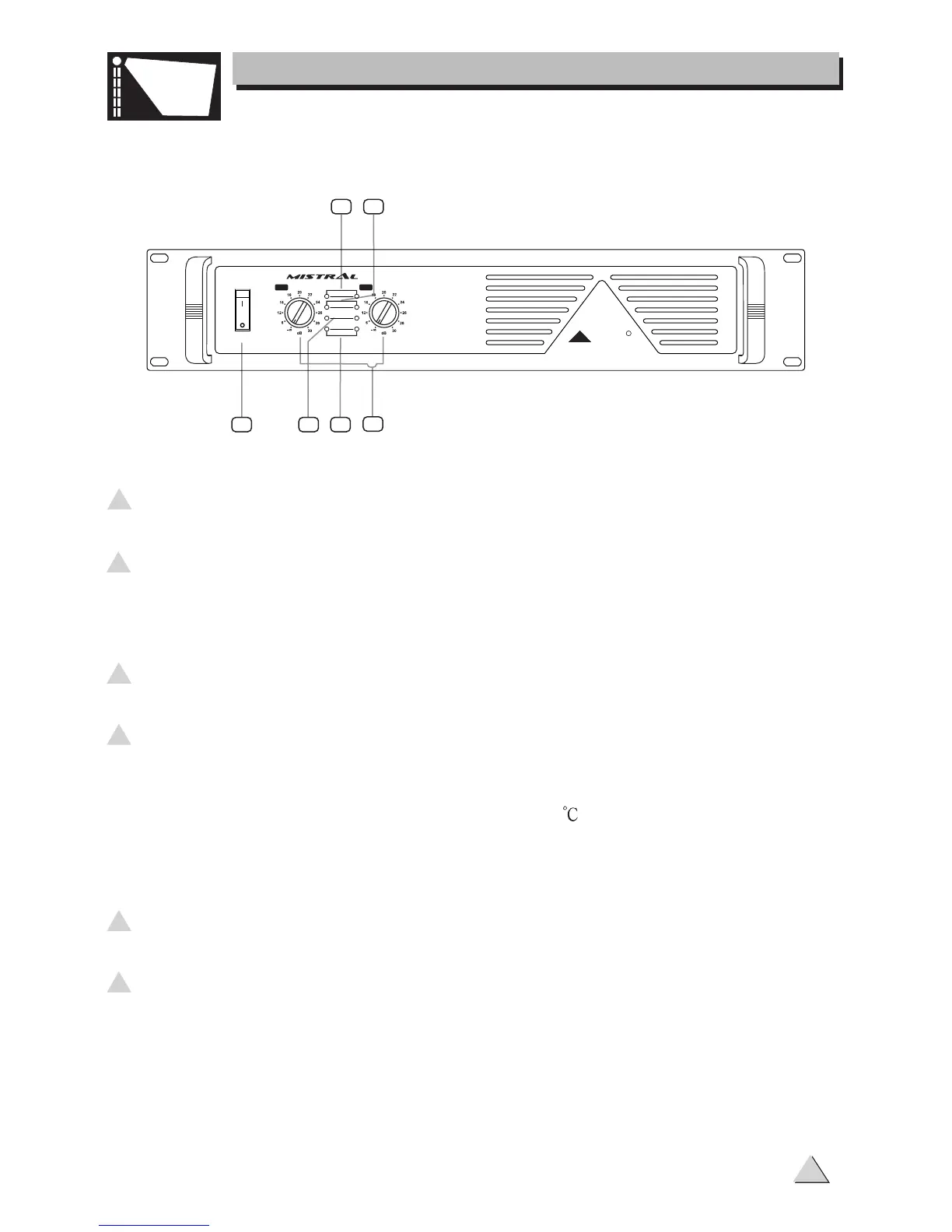

Front panel
1
POWER SWITCH
It switches the MISTRAL stereo power amplifier ON and OFF.
2
CLIP LED
When the signal distortion reaches or surpasses 0.5% , the LED lights up. This
means the output level of signal source is too high and it is time to reduce the
input level until the LED turns off.
3
OUTPUT LIMITER LED
When the unit limits the output signal, the LED lights up.
4
OPERATION AND PROTECTION LED
In normal operation, the LED is green; If the LED is red, it means the unit is in
heat protection, no signal output at the time and over-heat inside the unit (the
surface temperature of power transistor is 110 ), the temperature must be
lowered through better ventilation and decrease the signal level etc. After the
temperature dropped, the protection stop and meanwhile the LED turns off with
the unit recover normal work.
5
POWER LED
This LED lights up when the unit is powered on.
6
LEVEL CONTROL (For CH1&CH2)
Adjust the output signal level to avoid signal distortion.
1 4
2 3
5
6
LTO
R
CH1
CLIP
LIMIT
OPERATING/
PROTECTION
POWER ON
POWER
ON
OFF
Stereo Power Amplifier
2500
CH2
