Alto MISTRAL 4000 User Manual

5
Input Connector
Balanced
1
2
3
GND
INPUT
Stereo Mode
Release this button
+
CH 1

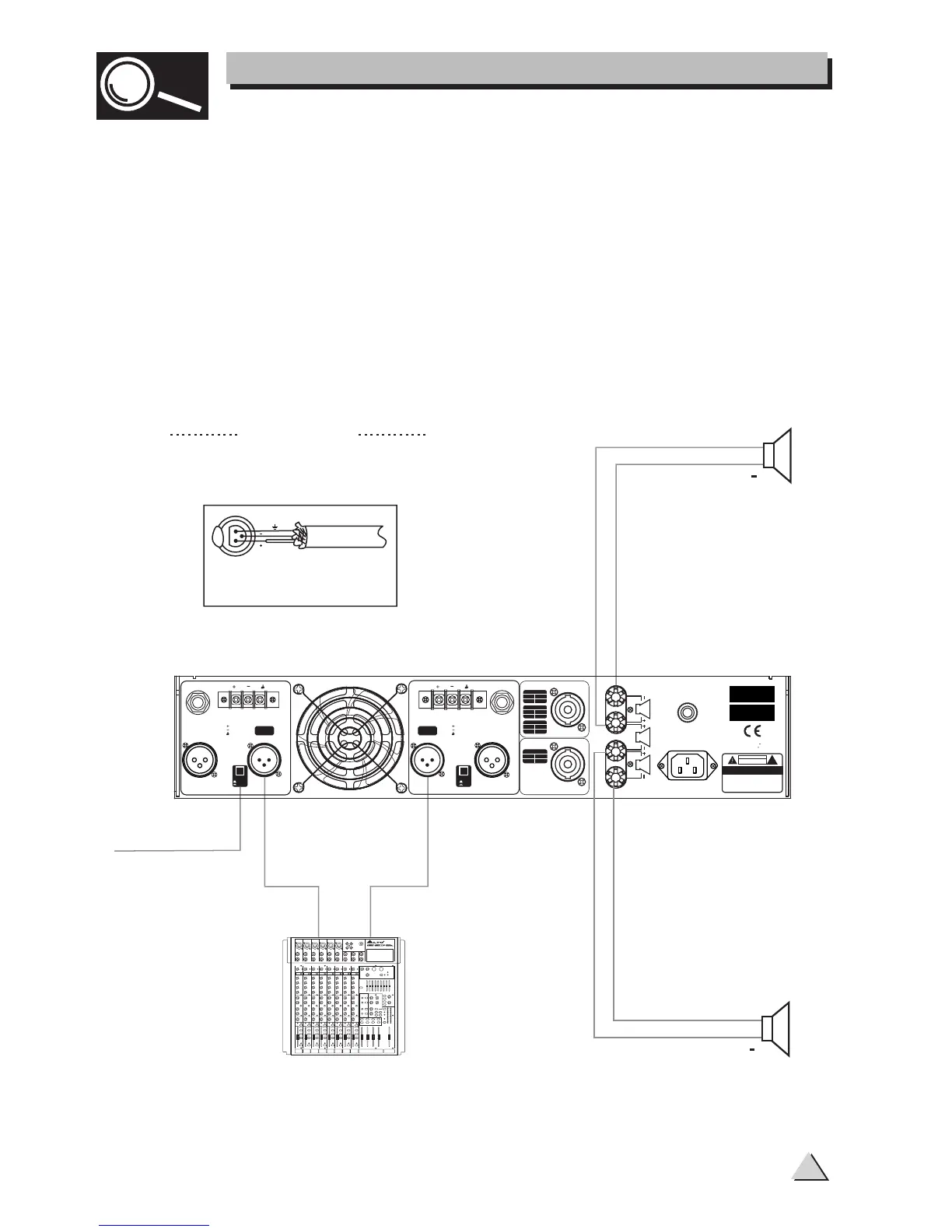

4. APPLICATION
The MISTRAL stereo power amplifiers provide two operating modes: stereo mode
and bridge mode, you can decide each specific operating mode according to your
actual application circumstance. Please see following diagram for connecting the
power amplifier into your audio system.
- Stereo Mode
In this mode, CH 1 and CH 2 operate independently (as a conventional stereo amplifier).
The CH 1 input signal will be output from the CH 1 output connectors, and the CH 2
input signal will be output from the CH 2 output connectors.
CH1
BALANCED
INPUT
PARALLEL
OUTPUT
LIMITER
OFF
ON
CH2
BALANCED
INPUT
PARALLEL
OUTPUT
MODE
BRIDGE
STEREO
SERIAL
MODEL
Apparaten skall anslutas
till jordat uttag nar den
ansluts till ett natverk
CH1
OUTPUT1
OUTPUT2
POWER OUTPUTS
CH1
1+ 1-
POS NEG
CH2
BRIDGE
MONO
CH2
2+ 2-
POS NEG
BRIDGE
1+ 2+
POS NEG
CH2
1+ 1-
POS NEG
BREAKER
INPUT
INPUT
TIP/PIN 2
RING/PIN 3
SLEEVE/PIN 1
TIP/PIN 2
RING/PIN 3
SLEEVE/PIN 1
INPUT INPUT
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
REPLACE WITH THE SAME TYPE FUSE AND RATING
DISCONNECT SUPPLY CORD BEFORE CHANGING FUSE
WARNING: SHOCK HAZARD - DO NOT OPEN
AVIS: RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR
12
3
21
3
NEW TIDE
21
3
NEW TIDE
1
3
2
+
CH 2
CH 2 CH 1
