2. Drive the three pegs into the ground at a distance to create a 45° angle with the posts.
Secure the adjustable tie-down ropes to each peg and then to the top of the posts above
the awning canvas.
3. Tighten the tie-down ropes as required.
Temporary Closing:
1. Loosen the tie down ropes, remove the three posts by sliding them at their base and
removing them from the canvas loops.
2. You may leave the pegs and ropes in place.
3. Roll awning up to the two straps (2 persons are required).
4. Tie up awning.
NOTE: If awning becomes difficult to slide in rail, spray canvas lip with a dry lubricant (Jig-a-Loo).
Setting Up Fiamma Awning
F2114, A2124 and F2414
1. Do not deploy the awning over one metre (3 or 4 feet) without supporting it (requires a
second person or the use of posts).
2. Remove the crank from interior of entrance (photo K-28), insert hook into loop at the front
of the awning and turn crank to unroll the awning about 1 metre (3 or 4 feet) then stop.
3. In the centre, deploy the foldable posts from the awning cover and slide their hinge out
so that you can tilt the posts and let them hang downward.
4. Unscrew the butterfly nut to extend the post extensions so they reach the ground. This
will support the awning, and you can set them further away from the ALTO.
5. Unroll another meter and set the post again further away and so on to provide full support
of the awning while it is deployed.

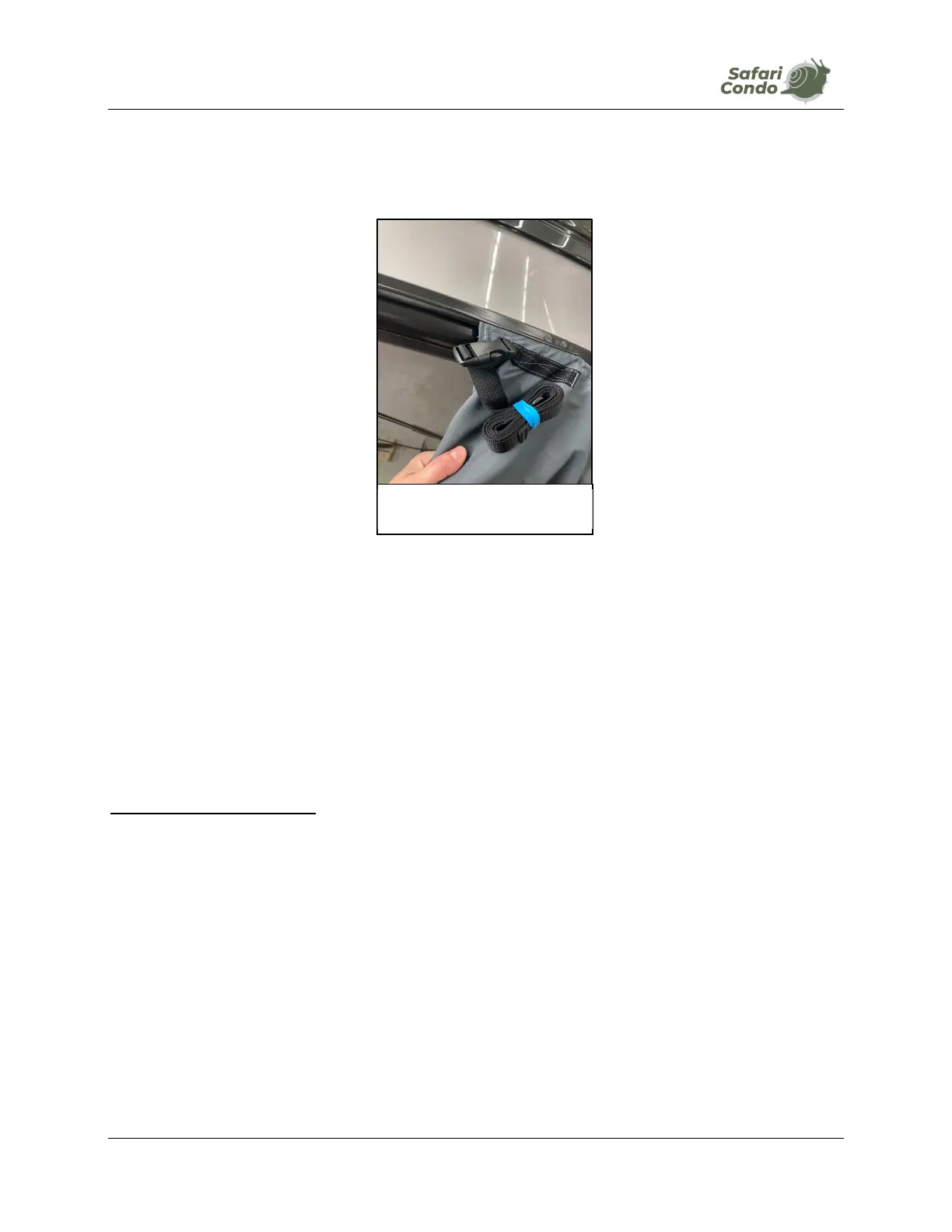

PHOTO K-27
Awning slide
