- 6 - AL175UL Installation Guide

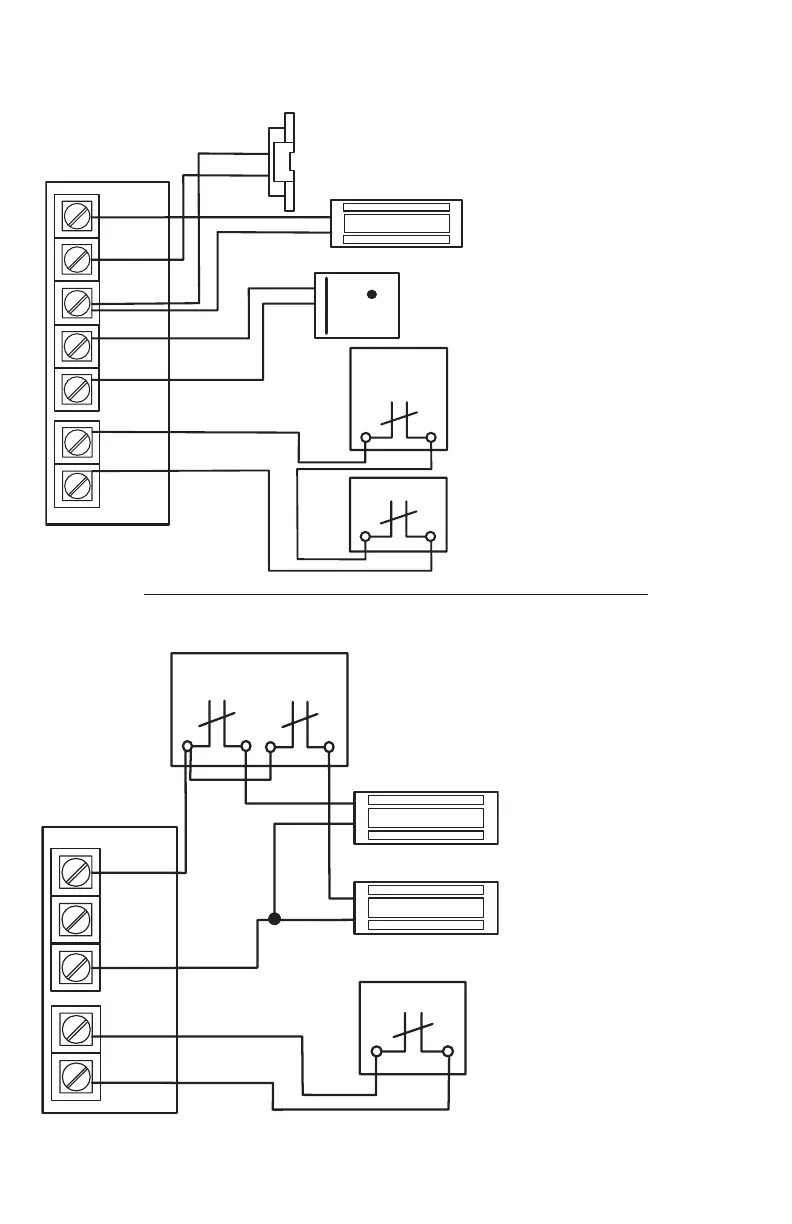

Typical Application Diagrams:
FACP
MAG LOCK
DOOR
STRIKE
PROX/CARD
READER
ACCESS
CONTROL
DEVICE
LOCK +
STRIKE +
TRG2
TRG1
AUX +
AUX –
COM –
Fig. 2 Typical single mag lock or door strike installation with fire alarm tie-in using trigger controlled output:
FACP
MAG LOCK
MAG LOCK
ACCESS CONTROL
DEVICE
LOCK +
STRIKE +
TRG2
TRG1
COM –
Fig. 3 Typical dual mag lock installation with fire alarm tie-in using trigger controlled outputs:
