CONTROL UNITS UTR230868 / UTR400868 1313
SETTINGS

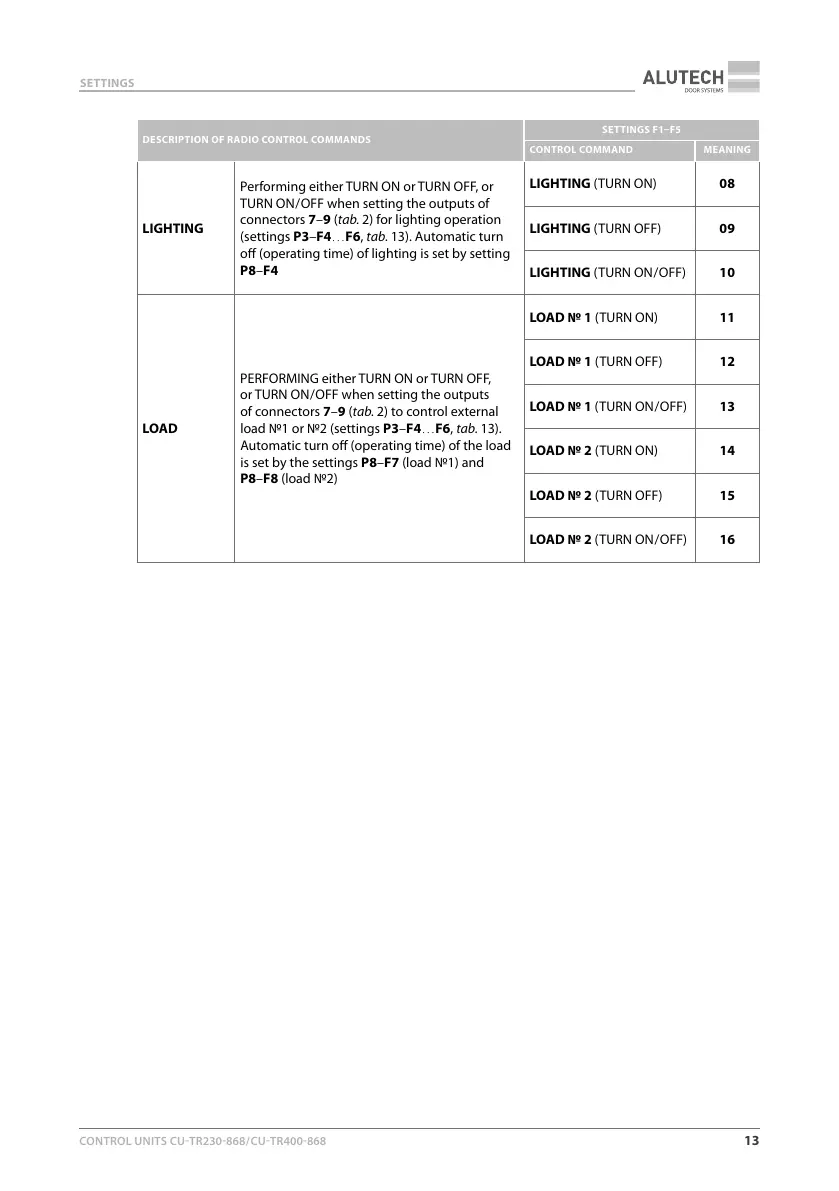

DESCRIPTION OF RADIO CONTROL COMMANDS
SETTINGS F1F5
CONTROL COMMAND MEANING
LIGHTING
Performing either TURN ON or TURN OFF, or
TURN ON / OFF when setting the outputs of
connectors 7–9 (tab.2) for lighting operation
(settings P3–F4…F6, tab.13). Automatic turn
o (operating time) of lighting is set by setting
P8–F4
LIGHTING (TURN ON) 08
LIGHTING (TURN OFF) 09
LIGHTING ( TURN ON / OFF) 10
LOAD
PERFORMING either TURN ON or TURN OFF,
or TURN ON / OFF when setting the outputs
of connectors 7–9 (tab.2) to control external
load 1 or 2 (settings P3–F4…F6, tab.13).
Automatic turn o (operating time) of the load
is set by the settings P8–F7 (load 1) and
P8–F8 (load 2)
LOAD 1 (TURN ON) 11
LOAD 1 (TURN OFF) 12
LOAD 1 ( TURN ON / OFF) 13
LOAD 2 (TURN ON) 14
LOAD 2 (TURN OFF) 15
LOAD 2 ( TURN ON / OFF) 16
