Alutech CU-TR230-868 - Verification of Operation and Commissioning

CONTROL UNITS UTR230868 / UTR4008683030
VERIFICATION OF OPERATION AND COMMISSIONING

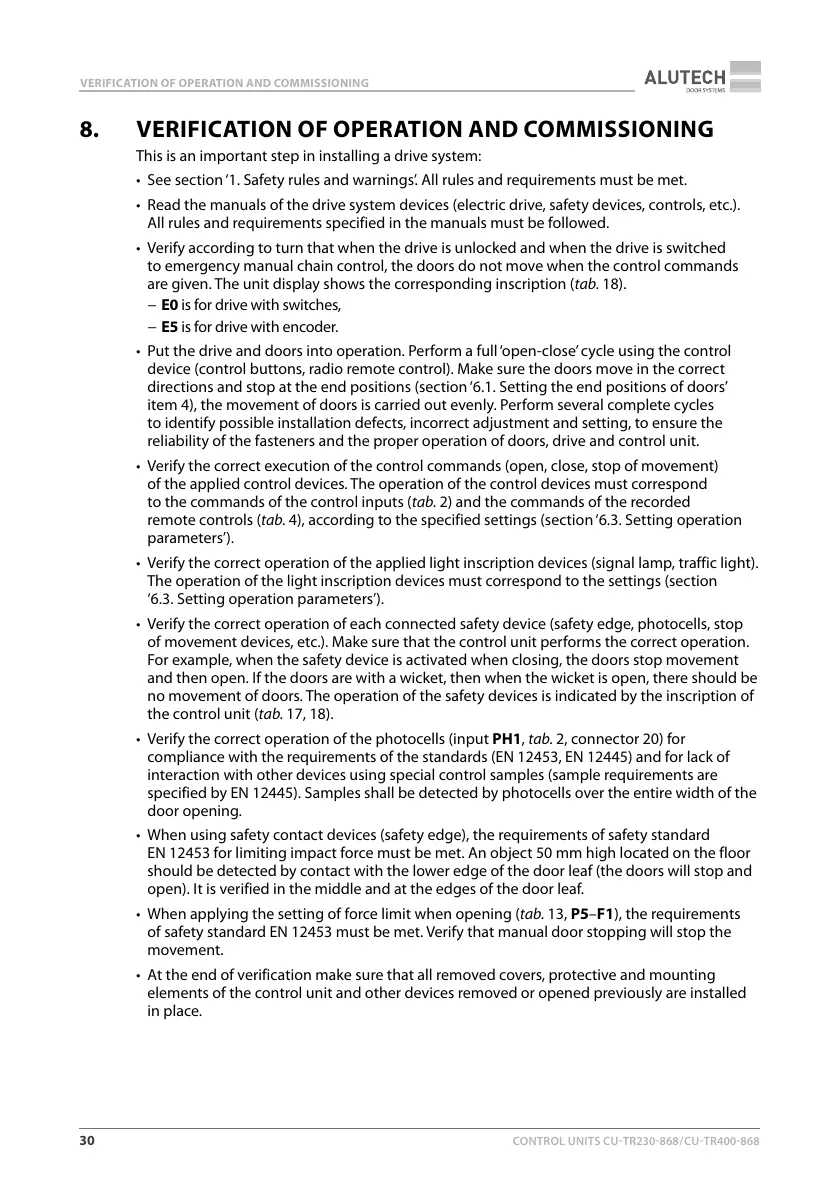

8. VERIFICATION OF OPERATION AND COMMISSIONING
This is an important step in installing a drive system:
• See section ‘1. Safety rules and warnings’. All rules and requirements must be met.
• Read the manuals of the drive system devices (electric drive, safety devices, controls, etc.).
All rules and requirements specified in the manuals must be followed.
• Verify according to turn that when the drive is unlocked and when the drive is switched
toemergency manual chain control, the doors do not move when the control commands
are given. The unit display shows the corresponding inscription (tab.18).
− 0 is for drive with switches,
− 5 is for drive with encoder.
• Put the drive and doors into operation. Perform a full ‘open-close’ cycle using the control
device (control buttons, radio remote control). Make sure the doors move in the correct
directions and stop at the end positions (section ‘6.1. Setting the end positions of doors’
item4), the movement of doors is carried out evenly. Perform several complete cycles
toidentify possible installation defects, incorrect adjustment and setting, to ensure the
reliability of thefasteners and the proper operation of doors, drive and control unit.
• Verify the correct execution of the control commands (open, close, stop of movement)
ofthe applied control devices. The operation of the control devices must correspond
tothecommands of the control inputs (tab.2) and the commands of the recorded
remote controls (tab.4), according to the specified settings (section ‘6.3. Setting operation
parameters’).
• Verify the correct operation of the applied light inscription devices (signal lamp, traffic light).
The operation of the light inscription devices must correspond to the settings (section
‘6.3.Setting operation parameters’).
• Verify the correct operation of each connected safety device (safety edge, photocells, stop
of movement devices, etc.). Make sure that the control unit performs the correct operation.
For example, when the safety device is activated when closing, the doors stop movement
and then open. If the doors are with a wicket, then when the wicket is open, there should be
no movement of doors. The operation of the safety devices is indicated by the inscription of
the control unit (tab.17, 18).
• Verify the correct operation of the photocells (input PH1, tab.2, connector 20) for
compliance with the requirements of the standards (EN 12453, EN 12445) and for lack of
interaction with other devices using special control samples (sample requirements are
specified by EN12445). Samples shall be detected by photocells over the entire width of the
door opening.
• When using safety contact devices (safety edge), the requirements of safety standard
EN12453 for limiting impact force must be met. An object 50 mm high located on the floor
should be detected by contact with the lower edge of the door leaf (the doors will stop and
open). It is verified in the middle and at the edges of the door leaf.
• When applying the setting of force limit when opening (tab.13, P5–F1), the requirements
of safety standard EN12453 must be met. Verify that manual door stopping will stop the
movement.
• At the end of verification make sure that all removed covers, protective and mounting
elements of the control unit and other devices removed or opened previously are installed
in place.
