MA-660A
4. Name and Functions of Each Section
4-2
6 Connector
Used to connect the circuit cable. Connect the other end of the cable to the
PROGRAM UNIT connector of the Power Supply.
CAUTION
When connecting the circuit cable, insert it with aligned with the key groove
of the connector. The connector may be broken if inserted with force.

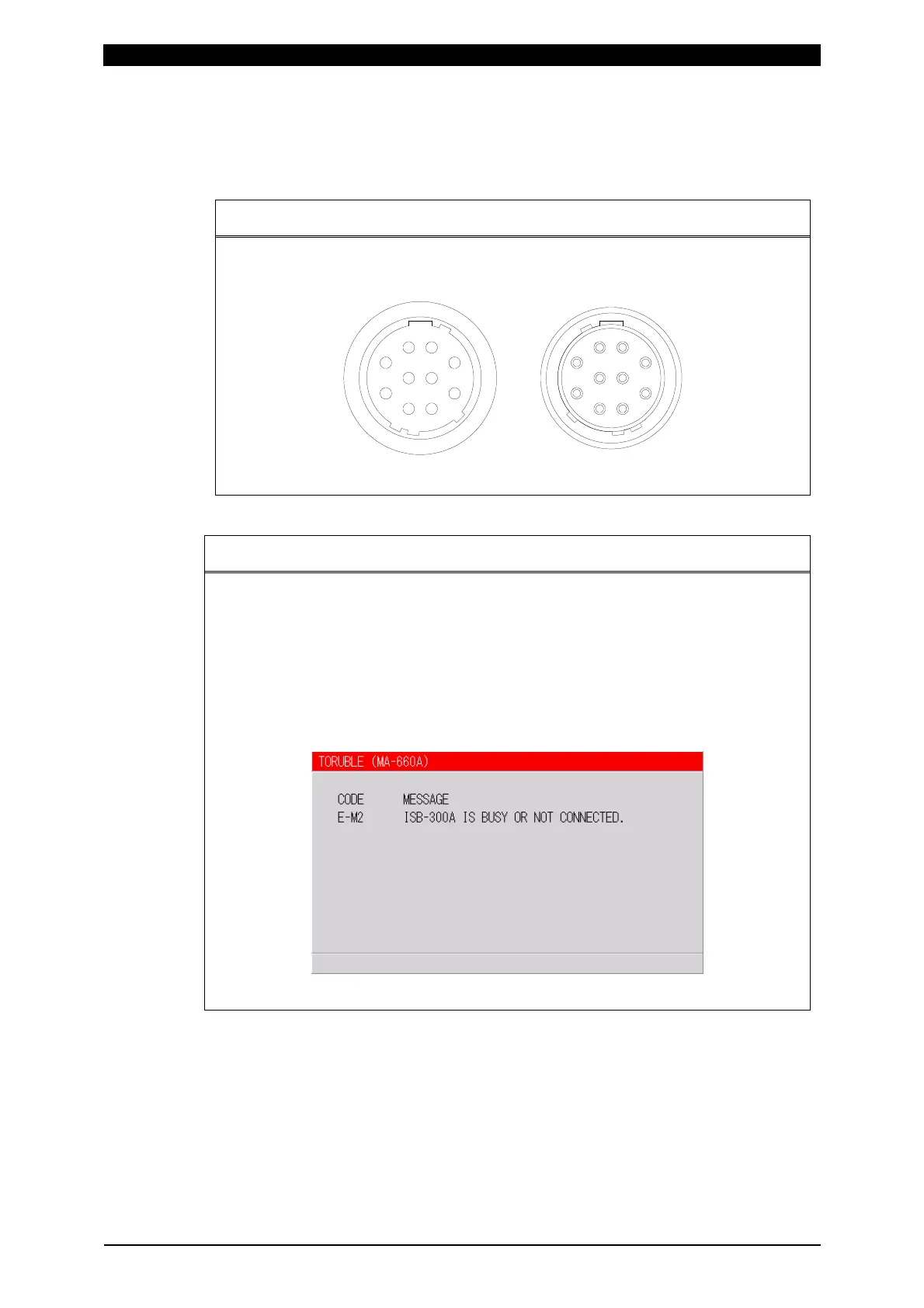

MA-660A side (male) Circuit cable side (female)
CAUTION
No settings or changes may be made to any item from the receipt of the start
signal through the end of the weld sequence and turning off the start signal.
If setting is performed during the weld sequence, the following screen
appears. Press the TROUBLE RESET key 1.
Also, when changing a screen to call up another setting schedule during the
weld sequence, the TROUBLE RESET key 1 does not work even if the
following screen appears. In this case, you need to turn on the power again.
(When connecting to the Power Supply, ISB-300A)
