Amana ACE530 User Manual

17 RS5320016 Rev. 0
Service Test
STG
COOK
PREHEAT STANDBY
ITEM POWER
C M
1
2
3
4
QTY
LEVEL
NOT READY
STG
COOK
PREHEAT STANDBY
ITEM POWER
C M
1
2
3
4
QTY
LEVEL
NOT READY
STG
COOK
PREHEAT STANDBY
ITEM POWER
C M
1
2
3
4
QTY
LEVEL
NOT READY
STG
COOK
PREHEAT STANDBY
ITEM POWER
C M
1
2
3
4
QTY
LEVEL
NOT READY
LMT
LMT
LMT
LMT
1
2
3
4
1 3 5 7 9

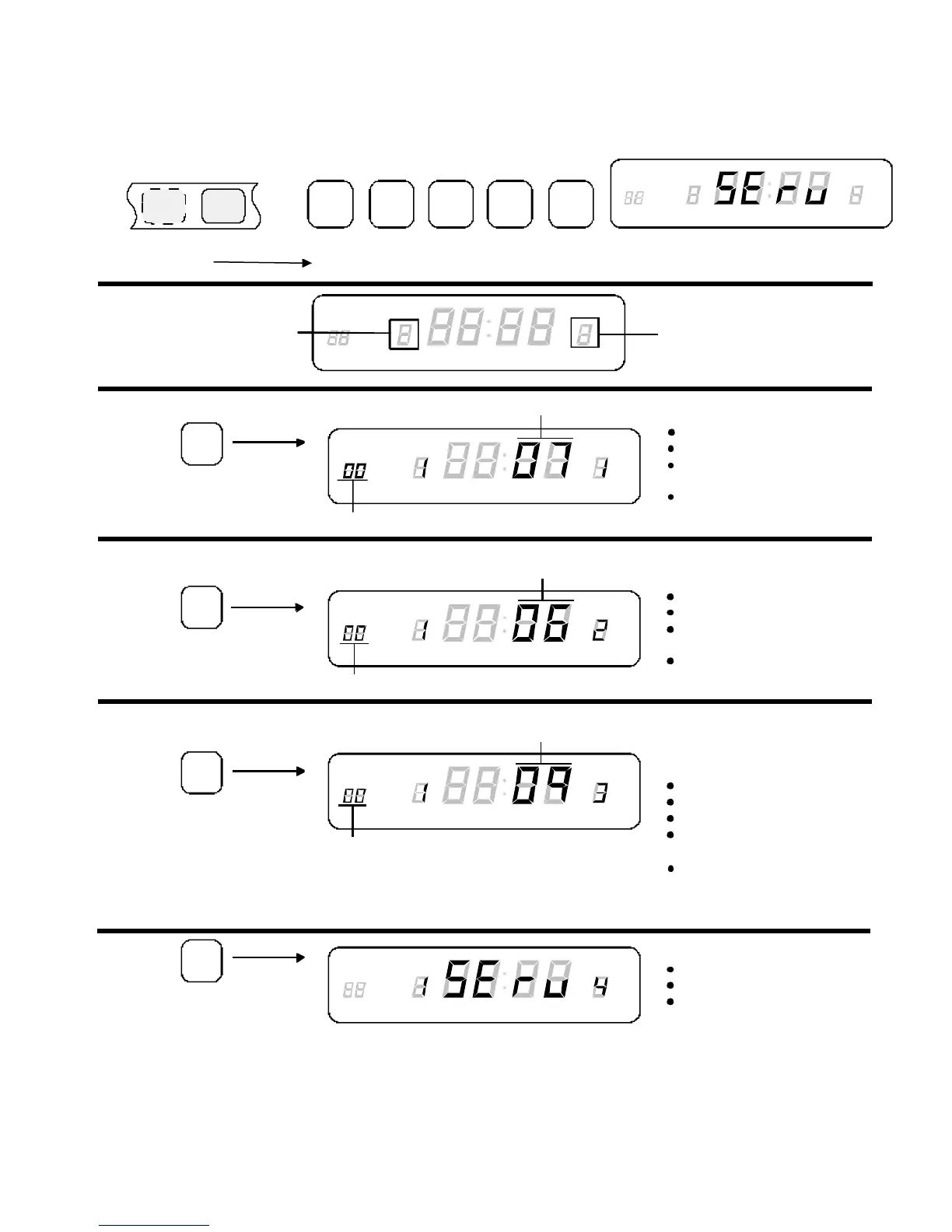

To Enter Service Mode, oven door must be closed.
Press Hidden Pad
NOTE: Unit must be in STANDBY mode.
Press
Display
Toggles
Element B (Rear)
ON/OFF.
Toggles
Element A (Front)
ON/OFF.
Toggles
Microwave
ON/OFF.
Toggles
Convection
Fan ON/OFF.
Displays actual Amperage
Timer counts up to 99 seconds.
Timer counts up to 99 seconds.
Timer counts up to 62 seconds and unit shuts off.
STG
COOK
PREHEAT STANDBY
ITEM POWER
C M
1
2
3
4
QTY
LEVEL
NOT READY
LMT
Component Evaluation
STG
COOK
PREHEAT STANDBY
ITEM POWER
C M
1
2
3
4
QTY
LEVEL
NOT READYLMT
0 = Deactivated
1 = Activated
Displays actual Amperage
Displays actual Amperage
Indicates
Service
Mode
If no Amperage, check:
Heating element
Triac 2 (middle)
H.V. board (relay K9 and
triac 2 drive voltage)
Wiring
If no Amperage, check:
Heating element
Triac 1 (top)
H.V. board (relay K4 and
triac 1 drive voltage)
Wiring
If no Amperage, check for line
voltage at H.V. transformer
primary winding.
If no voltage, check:
Interlock switch (secondary)
Magnetron TCO
Triac 3 (bottom)
H.V. board (relay K7 and
triac 3 drive voltage)
Wiring
If voltage is present, check
H.V. components and wiring.
Then
If no fan operation, check:
Convection fan motor and wheel
H.V. board (relay K2)
Wiring
PREHEAT
ON / OFF
Hidden
Pad
NOTE: Pads will not beep when pressed.
