Disassembly
23 RS5320016 Rev. 0
To avoid the risk of electrical shock, personal injury or death; disconnect power to oven and discharge capacitors
before following any disassembly procedure.
! WARNING

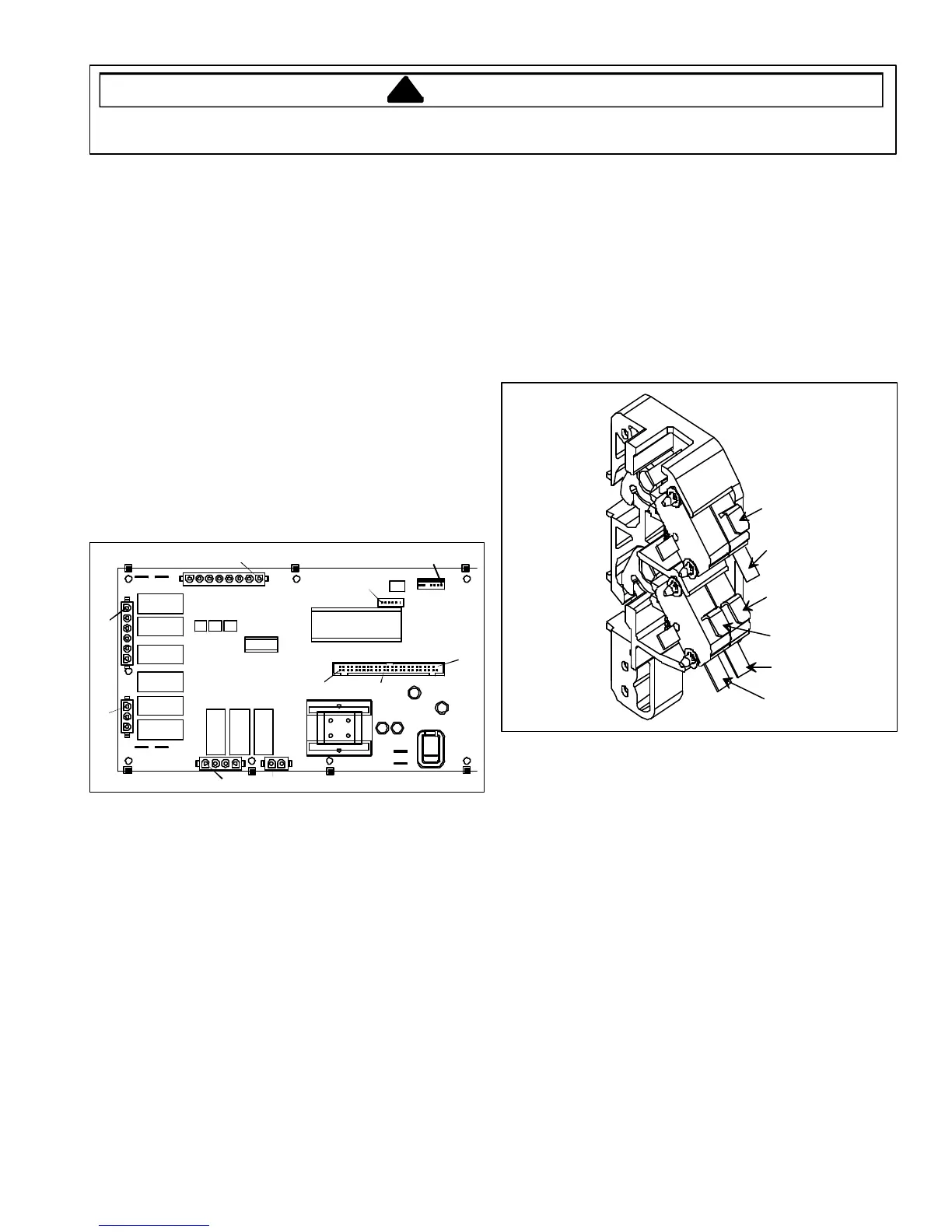

Interlock Switch Module
1. See “Component Location” Figure 2, for location.
2. Remove outer case.
3. Disconnect wiring from interlock switch assembly.
4. Remove mounting screws securing interlock switch.
5. When replacing assembly, all wires must be
connected before operating oven.
NOTE: When the line fuse is blown interlock switch
module must be replaced.
7
8
2
3
5
Adjustment
1. To adjust interlock switch assembly, close door.
2. Loosen bottom and top screw on the interlock switch
assembly, allowing switch assembly to move in or
out.
3. With door closed, push forward on interlock assembly
to engage door latch. Then pull back on interlock
assembly until door is "snug" against front oven
cavity and tighten bottom screw first, then top screw.
4. Door will remain latched when proper adjustment is
made.
NOTE: If door is not properly adjusted display will
indicate DOOR when the door is closed.
Side Touch Panel Assembly
1. See “Component Location” Figure 1, for location.
2. Remove outer case.
3. Remove ribbon cable from display board.
4. Remove mounting screws securing side touch panel
to unit.
5. Reassemble touch panel in reverse order.
High Voltage Circuit Board
1. See “Component Location“ Figure 2, for location.
2. Remove outer case.
3. Unplug connectors.
4. Disconnect wires from terminal locations on H.V.
board.
5. Release mounting clips and remove board.
6. Reassemble high voltage board in reverse order.
Pin 1
E1
E2
E3
J5
J1
J2
E4
E5
J3
J4
E7E6
J7
J6
J8
Pin 28
Pin 1
Pin 1
Pin 1
Pin 1
Pin 1
Pin 1
Pin 1
Pin 50
Clip
Clip
Clip
Clip
Clip Clip
Clip
NOTE: When reassembling, verify cable connection
with illustration of cable locations.
