Disassembly
21 RS5320016 Rev. 0
To avoid the risk of electrical shock, personal injury or death; disconnect power to oven and discharge capacitors
before following any disassembly procedure.
! WARNING

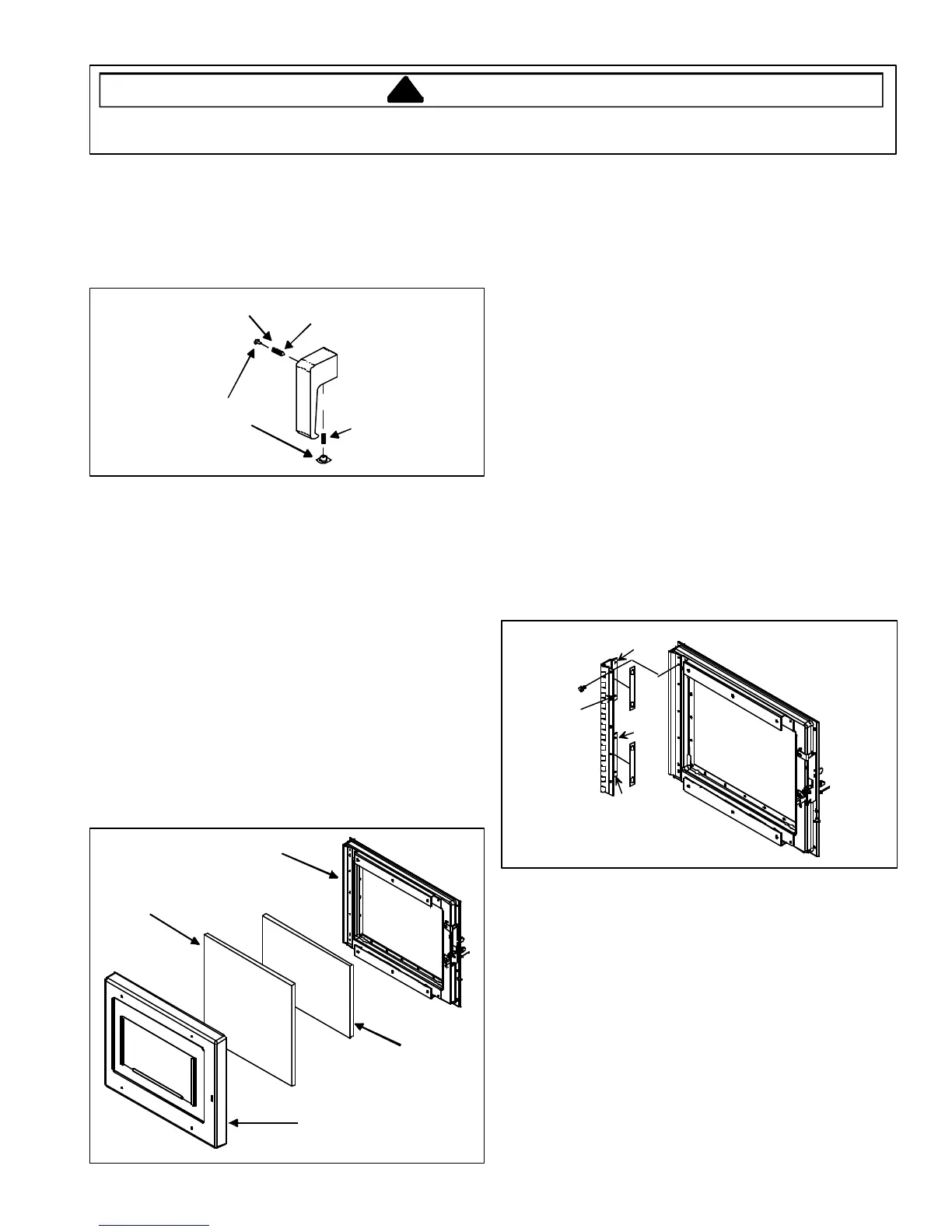

Inner Door Assembly
1. Remove door handle.
2. Remove outer door.
3. Remove insulation pads from inner door assembly.
4. Remove screws securing inner door assembly to
hinge.
5. Reassemble inner door assembly in reverse order.
Hinge
1. Remove outer case.
2. Remove door handle.
3. Remove outer door assembly.
4. Remove hinge mounting screws from hinge (five on
front, four on side).
NOTE: Discard foam gasket on side of hinge.
5. When reinstalling hinge mounting screws, keep the
side screws loose and the front screws tight, close
door, press door against oven on the hinge side and
tighten side hinge mounting screws in the sequence
shown below.
1
2
3
4
Door Handle
Remove door handle by removing plactic plugs to gain
access to set screws. Loosen set screws using a
(3/32 inch allen screws), one located to the left of the
door handle and one located on the bottom of the door
handle.
Pointed tip
Flat tip
Plastic plugs
Tighten first
NOTE: When replacing door handle, tighten side set
screw first.
NOTE: If set screws are removed, the set screw with
the flat end must be used in the bottom of the
door handle.
Outer Door
1. Remove door handle.
2. Remove plastic plugs covering screws with a thin flat
blade screwdriver.
3. Remove crows foot screws using crows foot driver
(92113P01), securing outer door to inner door
assembly.
4. Remove outer door from inner door assembly.
5. Reassemble outer door in reverse order.
Outer
Door
Outer
Insulation
Inner
Insulation
Inner Door
Assembly
