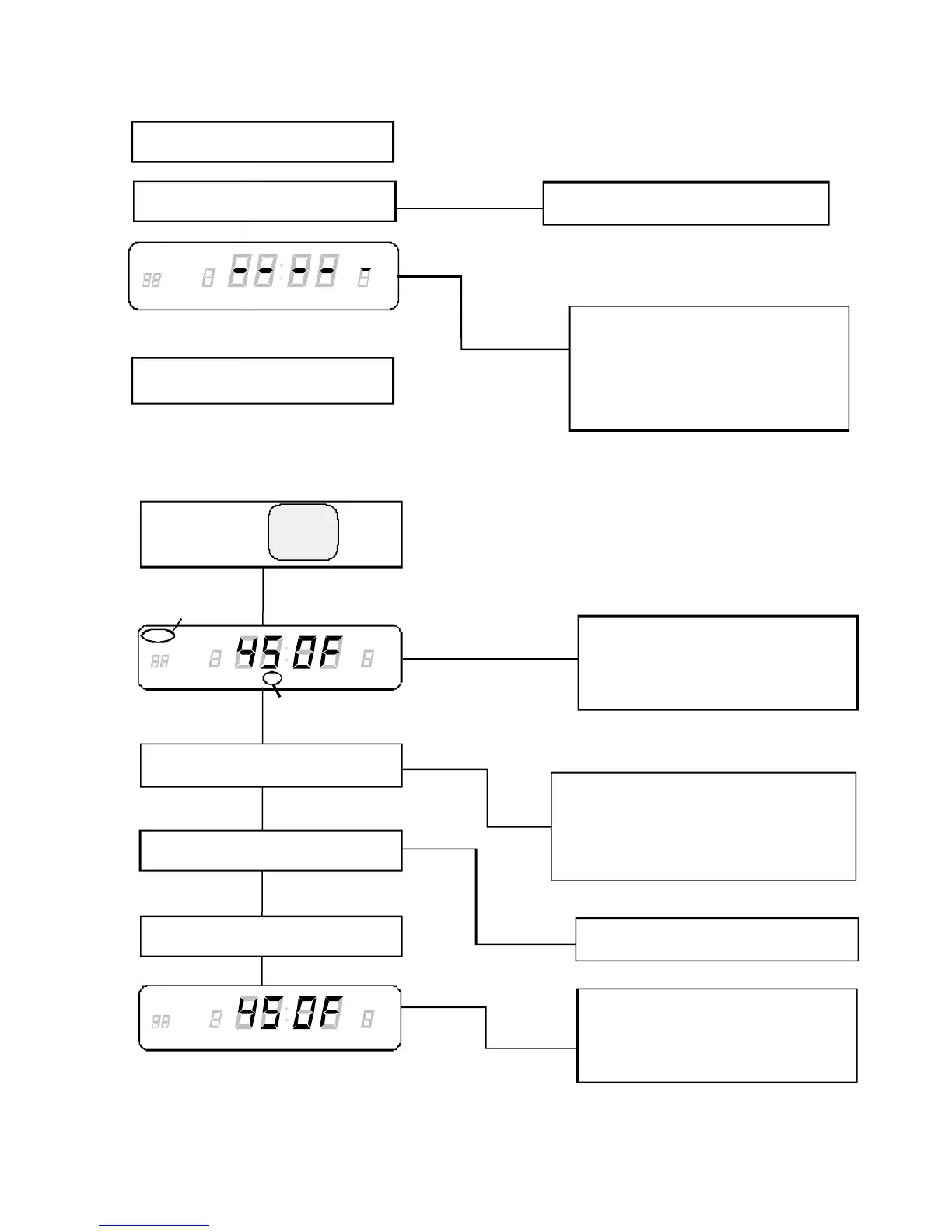

Troubleshooting
Plug oven into power source.
POWER UP CONDITION NORMAL
Proceed to DISPLAY DIAGNOSTICS.
1. No line voltage.
2. Inoperative power cord.
3. Inoperative fuse.
4. Inoperative display board.
5. Inoperative H.V. board.
6. Broken or loose wire connection.
NO
Power Up
Press
Blower operating cavity light on.
READY CONDITION NORMAL
1. Inoperative top touch panel.
2. Inoperative interlock switch.
3. Inoperative H.V. board.
4. Broken or loose wire connection.
Preheat/Convection Condition
NO
NO
Error Code
Error Code Appears
Proceed to DISPLAY DIAGNOSTICS.
STG
COOK
PREHEAT STANDBY
ITEM POWER
C M
1
2
3
4
QTY
LEVEL
NOT READY
LMT
PREHEAT
ON / OFF
STG
COOK
PREHEAT STANDBY
ITEM POWER
C M
1
2
3
4
QTY
LEVEL
NOT READY
LMT
FLASHES until unit reaches
PREHEAT temperature.
FLASHES for 1 minute.
1. Binding or inoperative blower motor.
2. Inoperative cavity light.
3. Inoperative H.V. board.
5. Broken or loose wire connection.
4. Inoperative display board.
STG
COOK
PREHEAT STANDBY
ITEM POWER
C M
1
2
3
4
QTY
LEVEL
NOT READY
LMT
1. Inoperative heating element.
2. Inoperative triac.
3. Inoperative H.V. board.
4. Broken or loose wire connection.
