SYSTEM OPERATION
11

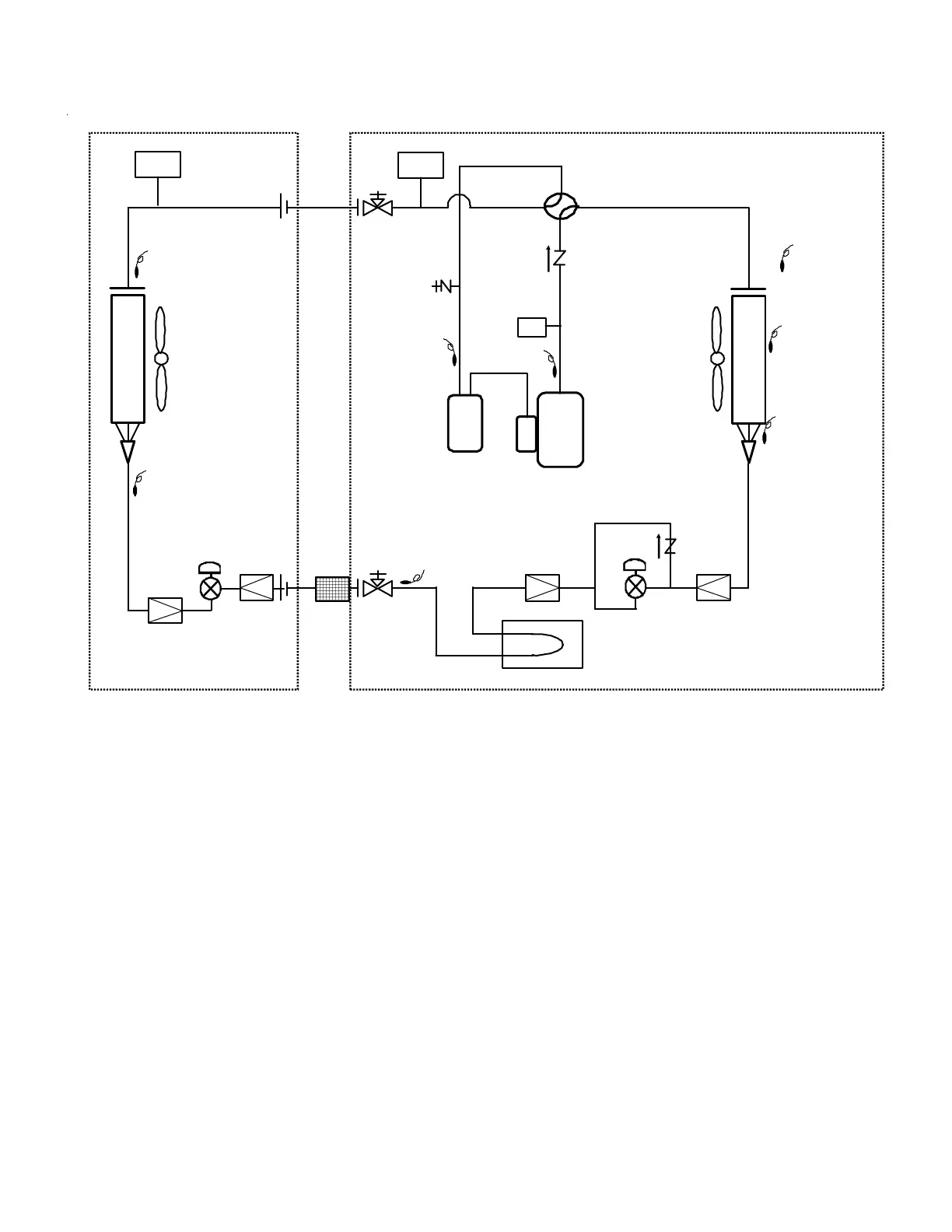

COOLING CYCLE
LEGEND:
Tl = Thermistor (Outdoor Liquid Temperature)
Td = Thermistor (Discharge Temperature)
Tb = Thermistor (Defrost Sensor)
Tm = Thermistor (Outdoor Coil Temperature)
Ta = Thermistor (Outdoor Air Temperature)
Tgi = Thermistor (Indoor Gas Temperature)
Tli = Thermistor (Indoor Liquid Temperature)
Ts = Thermistor (Suction Temperature)
OD HP/LP sensor = Outdoor High/Low Pressure Sensor
ID HP/LP sensor = Indoor High/Low Pressure Sensor
HPS = High Pressure Switch
Stop Valve
(Liquid)
Stop
Valve
(Gas )
Fan
Motor
HP/LP
OD HP/LP
Sensor
Check Valve
HPS
Outdoor UnitIndoor Unit
Cooling
EEV
Td
Thermi stor
Tm
Thermistor
Tb
Thermistor
Ta
Thermistor
Tl
Thermistor
SubACC
Motor
Check Valve
Reversing Valve
EEV
Filter
Filter
Fan
ACC
Comp
Ts
Thermistor
Filter
Tli
Thermistor
Tgi
Thermistor
HP/LP
ID HP/LP
Sensor
Filter Dryer
Access Tube
Filter
