7. Remove the chimney transition bottom from the transition
bottom kit.
8. Install the chimney top with the four screws retained from
step 6 onto the new chimney transition bottom from the
transition bottom kit.
9. Remove the induced draft blower and install the new
chimney assembly to it using the three screws retained
from step 5.
10. Rotate the induced draft blower 90 degrees to the right,
feed the flue pipe through the round cutout from the outside
of the wrapper, and fit onto the chimney top assembly.
Secure the pipe to the chimney top from the front, top, and
bottom using (3) screws and rotating the induced draft
blower to properly orient the assembly. NOTE: If the pipe
section is less than 18”, then attach it directly to the chimney
top on 3 sides and feed it through the round cutout from the
inside of the wrapper.
11. Reattach the induced draft blower using the (4) screws
retained from step 3. Ensure the gasket located between
the induced draft blower and collector box is rotated
accordingly.
12. Reconnect the induced draft blower power leads. NOTE: If
the wires are not long enough, pull extra wire from the wire
bundle in the blower compartment.
13. Reconnect the remaining flue pipe, and the pressure switch
tubing. Ensure that all wires and the pressure switch tubing
is at least one inch from the flue pipe, or any other hot
surface.
14. Restore power to furnace.
NOTE: In a horizontal installation the air conditioning coil must
be adequately supported by proper brackets and supports.
Inadequate coil support can result in furnace cabinet distortion
and air leakage.
Counterflow units are shipped with the induced draft blower dis-
charging from the top of the furnace. (“Top” as viewed for a coun-
terflow installation.)
Vent the furnace in accordance with the National Fuel Gas Code
NFPA54/ANSI Z223.1-latest edition.
N EVER ALLOW THE PRODUCTS OF COMBUSTION , INCLUDING CARBON
MONOXIDE , TO ENTER THE RETURN DUCTWORK OR CIRCULATION AIR
SUPPLY .
WARNING
EXTERIOR MASONRY CHIMNEYS (CATEGORY I FURNACES ONLY)
An exterior masonry chimney is defined as a “Masonry” chimney
exposed to the outdoors on one or more sides below the roof line.”
The ability to use a clay lined masonry chimney depends on a
parameter not associated with interior chimneys. This variable is
the geographic location of the installation. Researchers have dis-
covered that the winter design temperatures have a direct impact
on the suitability of this type of venting. In most situations, the
existing masonry chimneys will require a properly sized metallic
liner.
P OSSIBILITY OF PROPERTY DAMAGE , PERSONAL INJURY OR DEATH
DAMAGING CONDENSATION CAN OCCUR INSIDE MASONRY CHIMNEYS
WHEN A SINGLE FAN - ASSISTED C ATEGORY I APPLIANCE (80% AFUE
FURNACE ) IS VENTED WITHOUT ADEQUATE DILUTION AIR . D O NOT
CONNECT AN 80% FURNACE TO A MASONRY CHIMNEY UNLESS THE
FURNACE IS COMMON VENTED WITH A DRAFT HOOD EQUIPPED
APPLIANCE OR THE CHIMNEY IS LINED WITH A METAL LINER OR T YPE B
METAL VENT . A LL INSTALLATIONS USING MASONRY CHIMNEYS MUST BE
SIZED IN ACCORDANCE WITH THE APPROPRIATE VENTING TABLES . I F AN
80%
FURNACE IS COMMON VENTED WITH A DRAFT HOOD EQUIPPED
APPLIANCE , THE POTENTIAL FOR CONDENSATION DAMAGE MAY STILL
EXIST WITH EXTREMELY COLD CONDITIONS , LONG VENT CONNECTORS ,
EXTERIOR CHIMNEYS , OR ANY COMBINATION OF THESE CONDITIONS .
T
HE RISK OF CONDENSATION DAMAGE IS BEST AVOIDED BY USING
MASONRY CHIMNEY AS A PATHWAY FOR PROPERLY SIZED METAL LINER
OR T YPE B METAL VENT .
WARNING
Wash
Clay Tile Size: 8" x 8" x12"
(Each x 24" Length)
1/2" to 1" Air Space
Second Floor
First Floor
Attic Floor
Roof Line
Throat
Damper
Breech
Clean Out
Fan Assisted
Forced Air
Furnace
Natural Draft
Water Heater
Water Heater
Vent Connector
Basement Floor
F.A.F. Vent
Connector

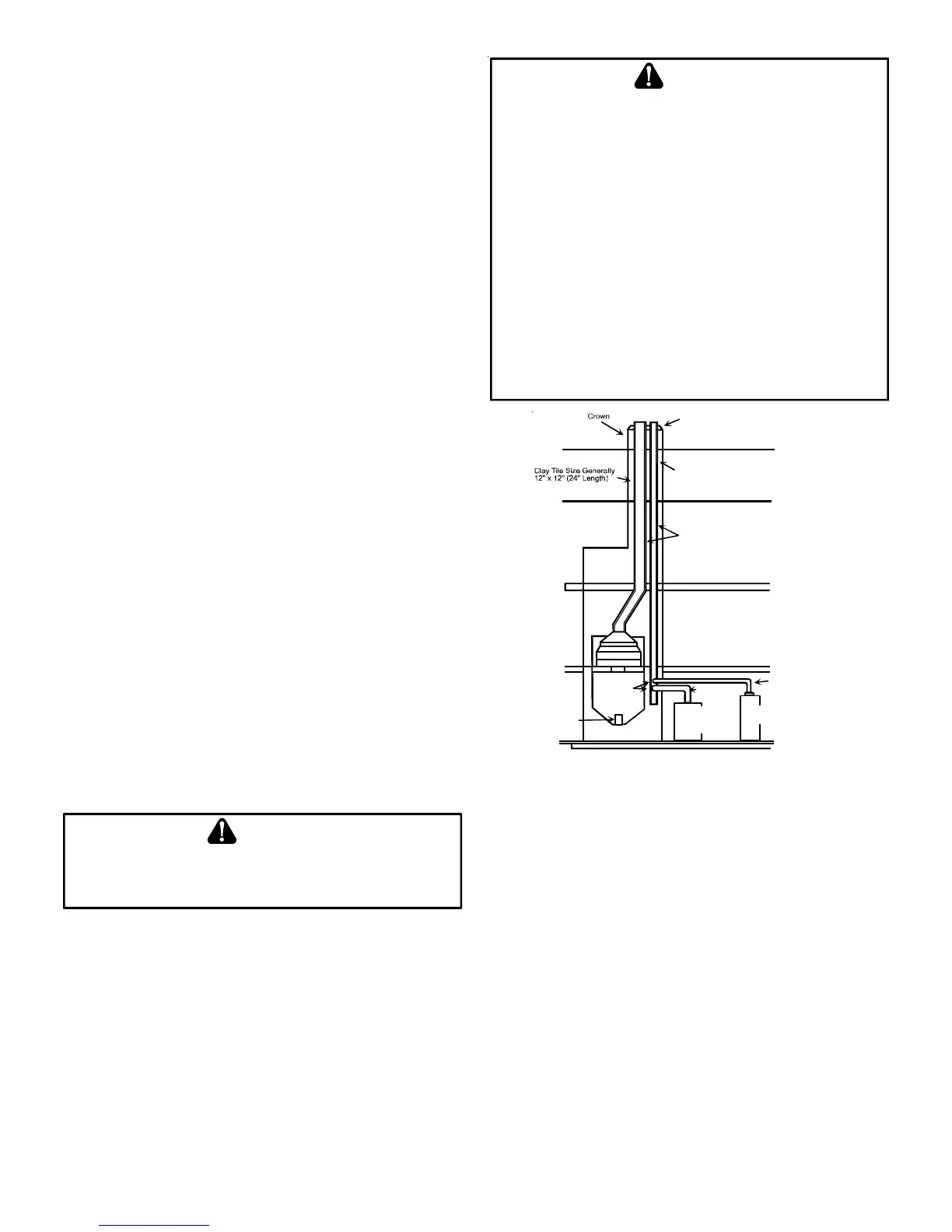

Typical Multiple Flue Clay Tile Chimney
CHECKLIST SUMMARY
This checklist serves as a summary of the items to be checked
before venting an 80+ furnace into a masonry chimney. In addi-
tion, we recommend that a qualified serviceman use this checklist
to perform a yearly inspection of the furnace venting system.
This checklist is only a summary. For detailed information on
each of the procedures mentioned, see the paragraph referenced
with each item.
