THERMOSTAT BUTTONS:
UP / DOWN = used for raising or lowering the target set
temperature and selecting user options and settings in
the display screen.
The temperature that is shown at all times in normal
operation is the Target Set Temperature.
To view current ambient room temperature while in
Heat or Cool mode, perform a single press of BOTH the
Up and Down buttons at the same time.
Note: to adjust the target set temperature, first ensure
that the thermostat is in either Heat or Cool mode, and
press either the up or down buttons until the desired
target temperature is reached. Presses to the Up or
Down buttons will have no eect when the thermostat is
in O mode.
SETTING A KEYPAD / FRONT PANEL LOCKOUT:
• While in either HEAT or COOL mode, a keypad
lockout can be introduced which will prevent any
temperature adjustment from being made by
the user. Even while locked, any button press will
illuminate the display backlight.
• To activate (and deactivate) the keypad lockout,
press and hold BOTH the Up and Down buttons for
at least 5 seconds. When the keypad is locked, a
padlock will appear in the lower le corner of the
display.
6) FRONT PANEL CONTROLS
THERMOSTAT SYSTEM MODE SWITCH POSITIONS:
HEAT = thermostat permits heating operation
OFF = thermostat stops all heating or cooling functions
COOL = thermostat permits cooling operation
THERMOSTAT FAN SWITCH POSITIONS:
AUTO position = fan operates in low speed mode as
needed during a call for heating or cooling activation
only.
LOW position = fan operates continuously in LOW
speed, with the heating or cooling components cycling
on and o in the background as needed.
HIGH position = fan operates continuously in HIGH
speed, with the heating or cooling components cycling
on and o in the background as needed.

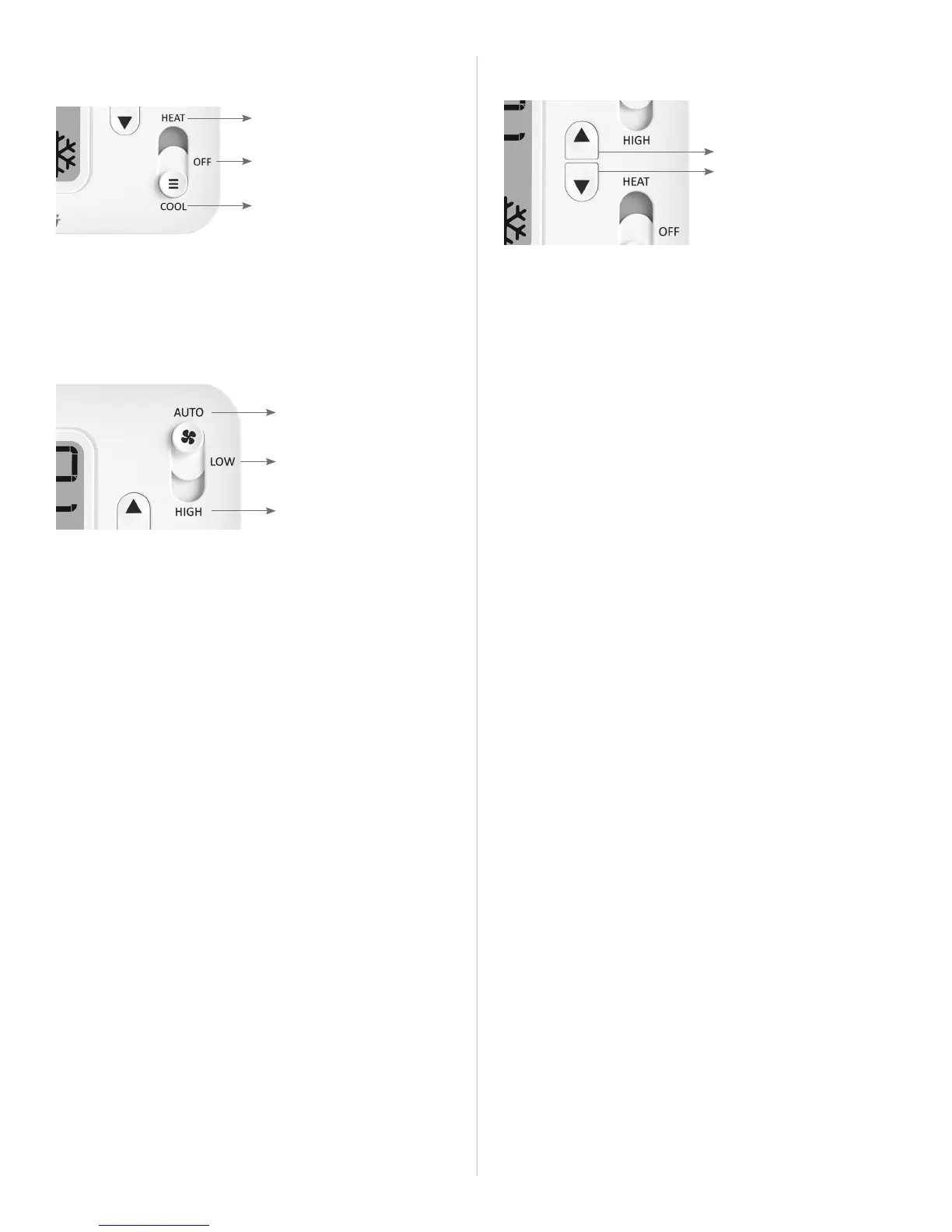

OFF position
HEAT position
COOL position
LOW position
AUTO position
HIGH position
UP button
DOWN button
