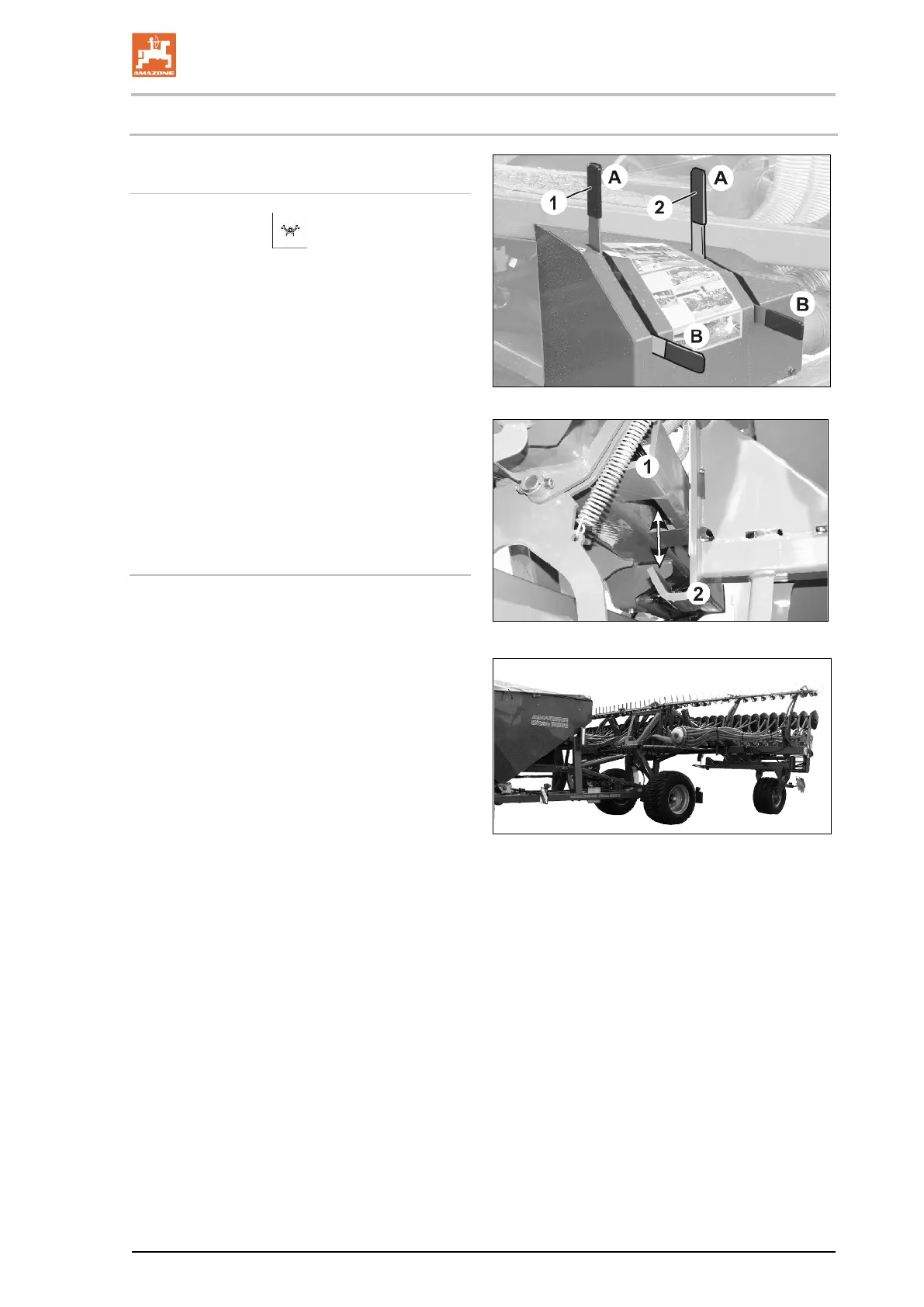

10.1.1 Folding down the machine
Machine with AMATRON 3
1. Press shift key .
→ Symbol appears in the operating menu.
2. Briefly actuate control valve yellow.
→ The machine wings (Fig. 108/1) lift out of
the transport locking (Fig. 108/2).
3. Actuate control valve green.
→ Fold down the machine wing completely,
fold out the distributor (Fig. 109).
4. Actuate control valve yellow
→ Lower the rear frame into operational posi-
tion
Machine with AMALOG+
1. Adjustment of the hydraulic hand lever (
Fig.
107)
1.1 Lever 1 in position A
1.2 Lever 2 in position B
2. Briefly actuate control valve yellow.
→ The machine wings (Fig. 108/1) lift out of
the transport locking (Fig. 108/2).
3. Actuate control valve green.
→ Fold down machine wing completely, fold
out the distributor (Fig. 109).
4. Actuate control valve yellow.
→ Fold down the rear frame completely, fold
the traffic light in operational position.
Fig.
107
Fig.
108
Fig.
109
