Structure and function
ZA-V BAG0087.11
01.20
5.2 Guard and function screens in the hopper (protective device)

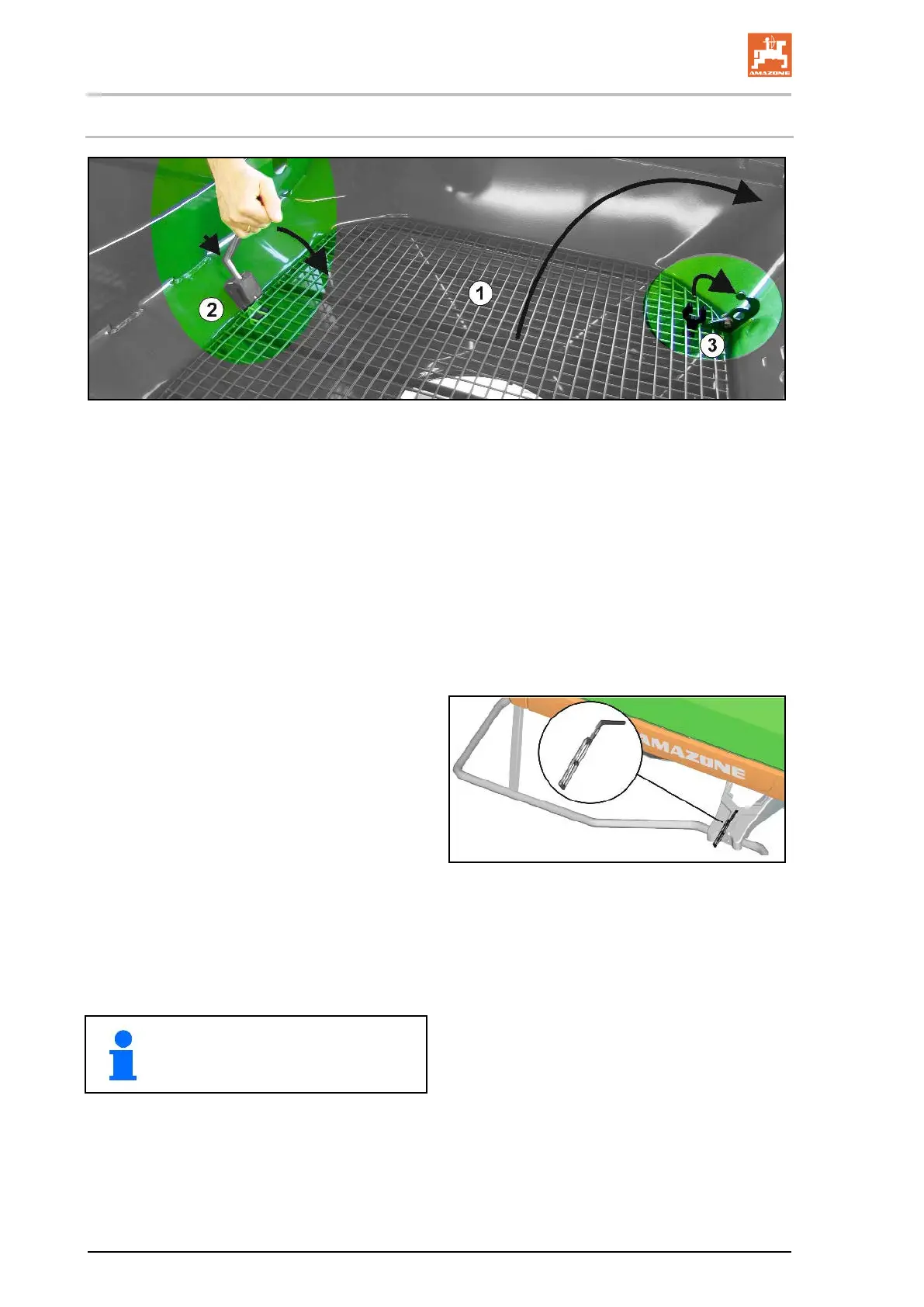

Fig. 9
Di The foldable guard and function screens cover the entire hopper
and serve
as protection against accidental contact with the rotating agitator
spiral.
Protecting from foreign particles and fertiliser clods.
(1) Guard and function screen
(2) Guard screen locking mechanism with tools for unlocking
(3) Lock for opened guard screen
(4) Tool for unlocking in parking position..
For cleaning, maintenance or repair purpos-
es, the guard screen in the hopper can be
folded up using the unlocking tool.
Opening the guard screen:
1. Insert the unlocking tool into locking mech-
anism.
2. Unlock the guard screen using the tool.
3. Raise the guard screen until it catches onto
the stop on the tank.
4. Remove the unlocking tools and fasten in
parking position.
Fig.
10
The guard screen locks automatically
once closed.
