Amazone ZA-V - Implement Mounted on the Front of the Tractor

Structure and function
72
ZA-V BAG0087.11
01.20
5.23 Implement mounted on the front of the tractor
Prerequisites for front mounting:
• Hydraulic spreading disc drive
• ISOBUS control terminal (select front spreader, the left and right
shutters are then exchanged in the software)
Regulating restrictions in the field of view by the lifting height of the front hopper
Road transport:
• Prevent restrictions in the field of view by maintaining the lifting
height, see Table unterhalb.
• Maintain a ground clearance of 0.2 m.

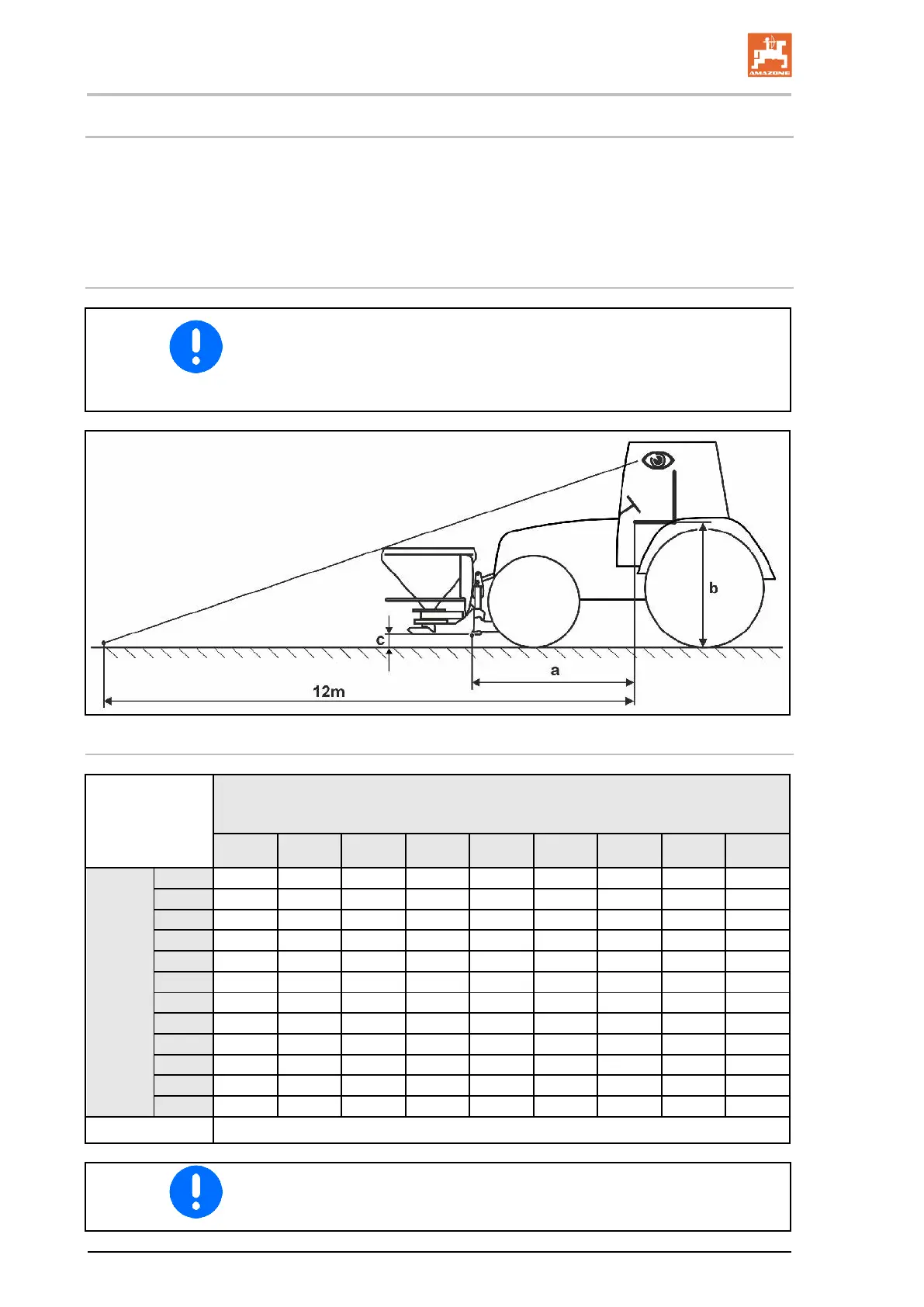

Table for determining the lifting height
Maximum lifting
height for
ZA-TS 1700
Distance from the front edge of the seat to the eye of the lower link a
[m]
2.40 2.50 2.60 2.70 2.80 2.90 3.00 3.10 3.20
Height of the seating su
rface b
[m]
1.70
0.24
0.22
0.20
0.18
0.16
0.14
0.12
0.10
0.08
1.75
0.28
0.26
0.24
0.22
0.20
0.18
0.16
0.14
0.12
1.80
0.31
0.29
0.28
0.26
0.23
0.21
0.19
0.17
0.15
1.85
0.35
0.33
0.31
0.28
0.26
0.24
0.22
0.20
0.18
1.90
0.38
0.36
0.34
0.32
0.30
0.28
0.26
0.24
0.21
1.95
0.41
0.39
0.37
0.35
0.33
0.30
0.27
0.26
0.24
2.00
0.45
0.43
0.41
0.38
0.36
0.33
0.31
0.29
0.27
2.05
0.48
0.46
0.43
0.41
0.38
0.36
0.34
0.32
0.30
2.10
0.52
0.49
0.47
0.45
0.42
0.40
0.38
0.35
0.33
2.15
0.55
0.53
0.50
0.48
0.46
0.44
0.41
0.39
0.36
2.20
0.59
0.56
0.53
0.51
0.49
0.46
0.44
0.41
0.39
2.25
0.62
0.60
0.57
0.54
0.52
0.50
0.47
0.44
0.42
Lifting height c [m]
The maximum lifting height for the ZA-TS 1400 is 0.1 m greater than
for the ZA-TS 1700.
