Ambient Weather WH31-SRS User Manual

Version 1.1 ©Copyright 2022, Ambient LLC. All Rights Reserved. Page 4

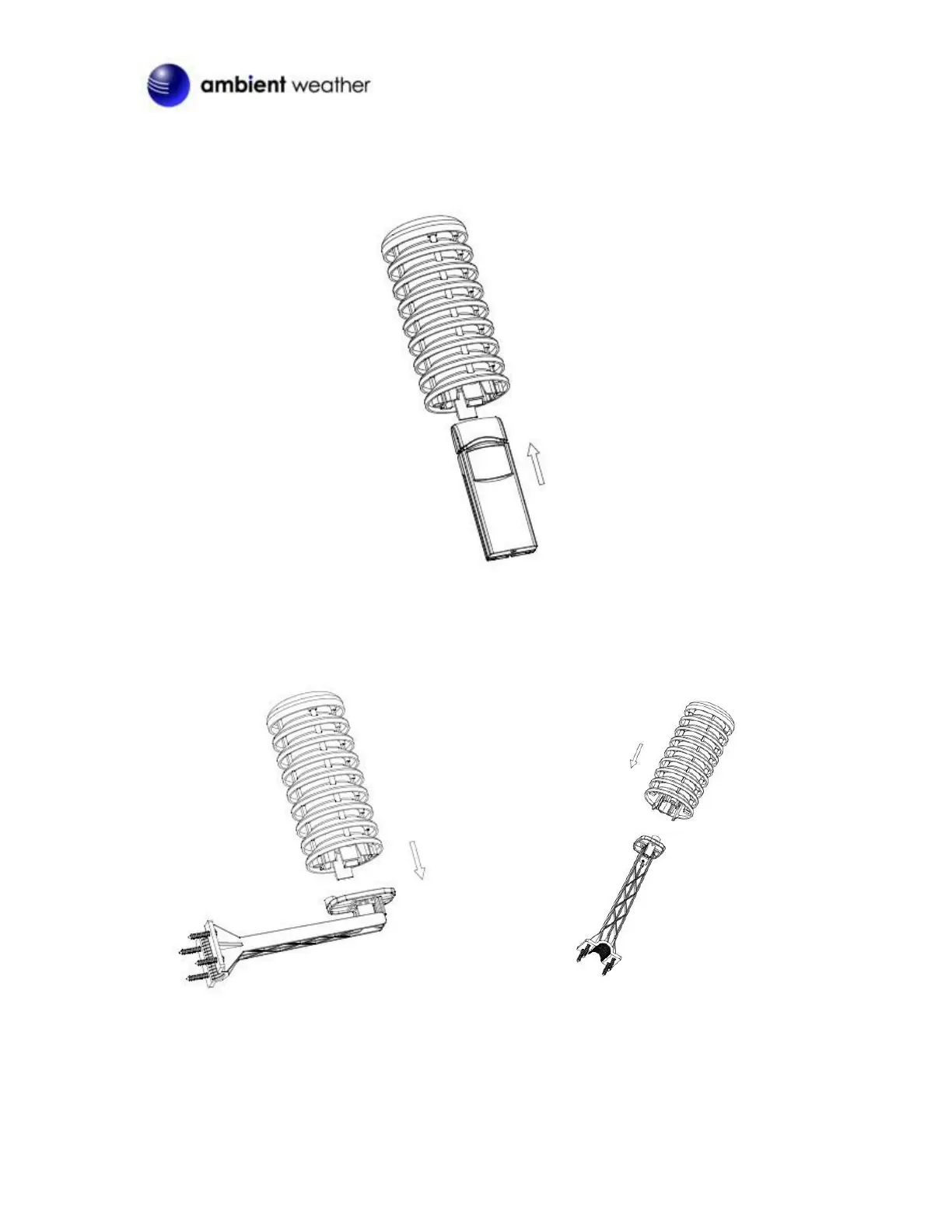

Step 2: Place the sensor inside the Solar Radiation Shield, as shown in Figure 3.
Note: Sensor is not secured inside the solar radiation shield until attached to the sensor mounting
arm.
Figure 3
Step 3: Attach the Solar Radiation Shield to the sensor mounting arm by clicking the tabs into place, as
shown in Figure 4 and Figure 5
Horizontal Installation
Figure 4
Vertical Installation
Figure 5
