Tools and Materials Needed
•
5/16” Wrench
•
Drill with 1/8” to 9/64” for mount without anchors
•
Drill with 1/4” to 5/16” for mount with anchors
5
Location Tips
•
The radiation shield must be placed away from large radiant heat sources, such as sun exposed
buildings.
•
The radiation shield should be placed in an open area to insure unrestricted air flow or wind.
•
Do not install over or near sprinklers. Continuous moisture may damage the temperature sensor.
6
Installation
Options
There are two different mounting configurations for the radiation shield:
•
Pole or metal pipe with outside diameter between 1” and 1 ¼”
•
On the side or top of a wooden post
7
Installation

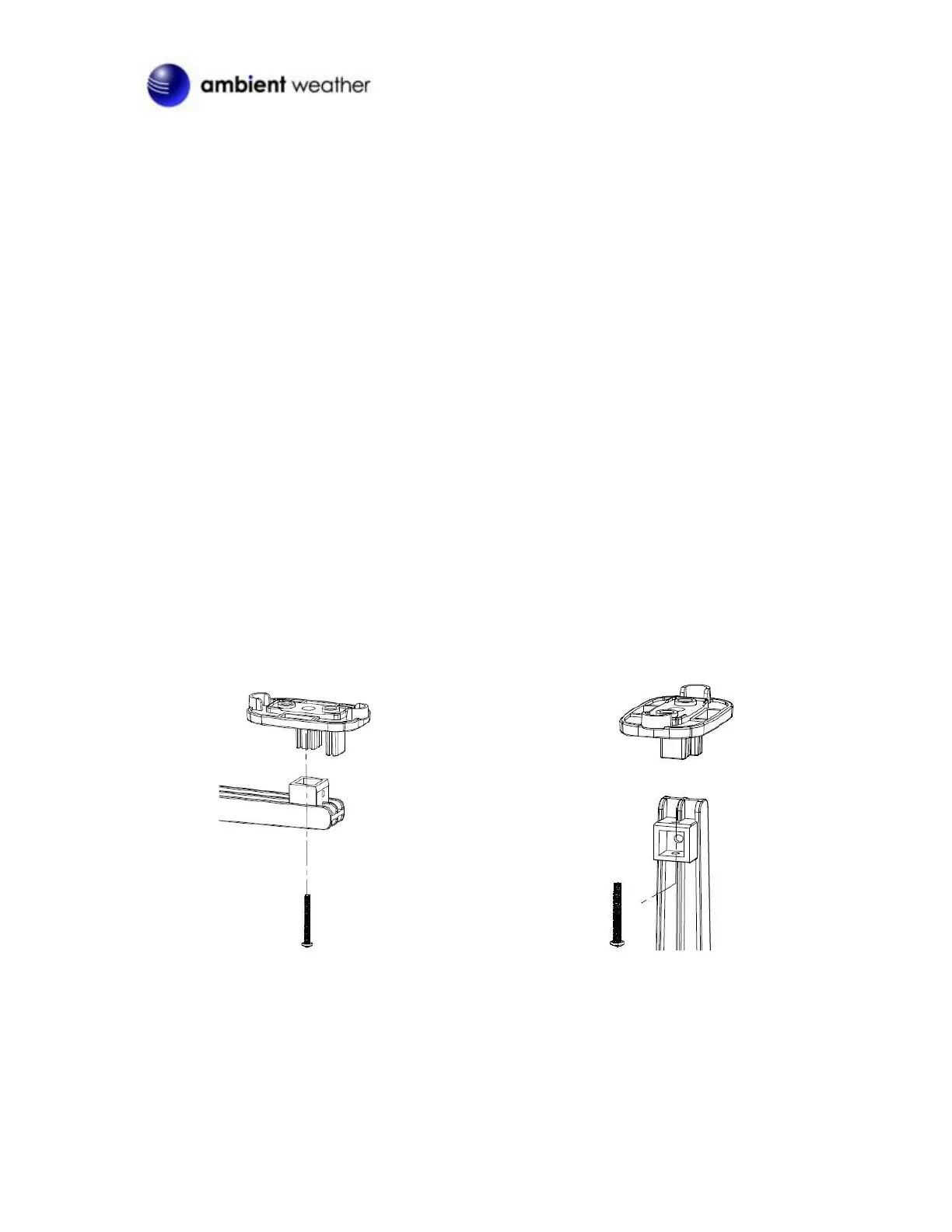

Step 1. Attach the mounting arm attachment bracket to the mounting arm.
Horizontal Installation
Figure 1
Vertical Installation
Figure 2
