Ambient Weather WS-23 User Manual

Version 1.0 ©Copyright 2015, Ambient LLC. All Rights Reserved. Page 3

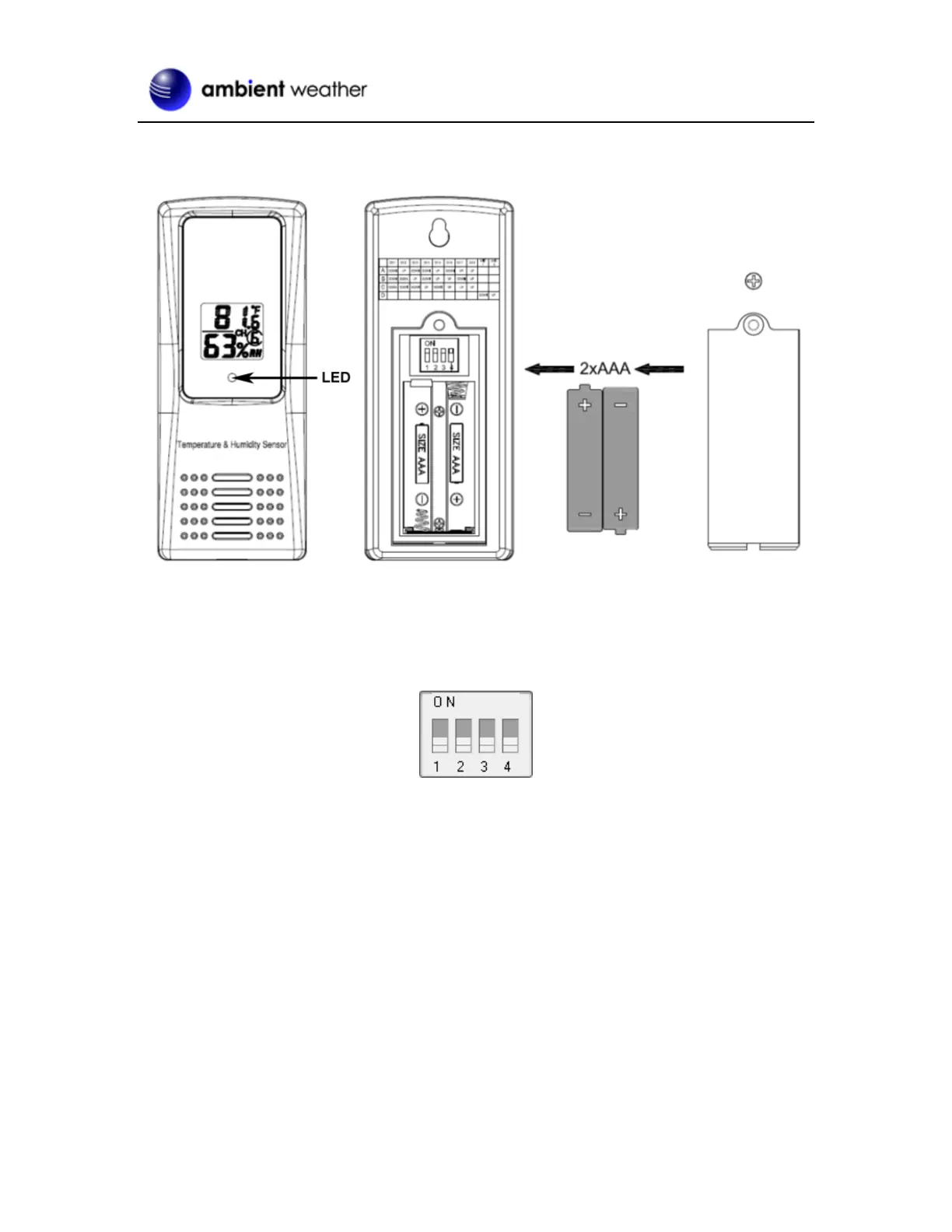

1. Remove the battery door on the back of the sensor by removing the set screw, as shown in
Figure 1 .
Figure 1
2. BEFORE inserting the batteries, locate the dip switches on the inside cover of the lid of the
transmitter.
Figure 2 displays all four switches in the OFF position (factory default setting).
Figure 2
3. Channel Number: The WS-23 supports up to eight transmitters. To set each channel number
(the default is Channel 1), change Dip Switches 1, 2 and 3, as referenced in Table 1.
4. Temperature Units of Measure: To change the transmitter display units of measure (°F
vs. °C), change Dip Switch 4, as referenced in Table 1.
