Ambient Weather WS-2801 User Manual

Version 2.0 ©Copyright 2017, Ambient LLC. All Rights Reserved. Page 6
3.4 Display Console
3.4.1 Display Console Layout

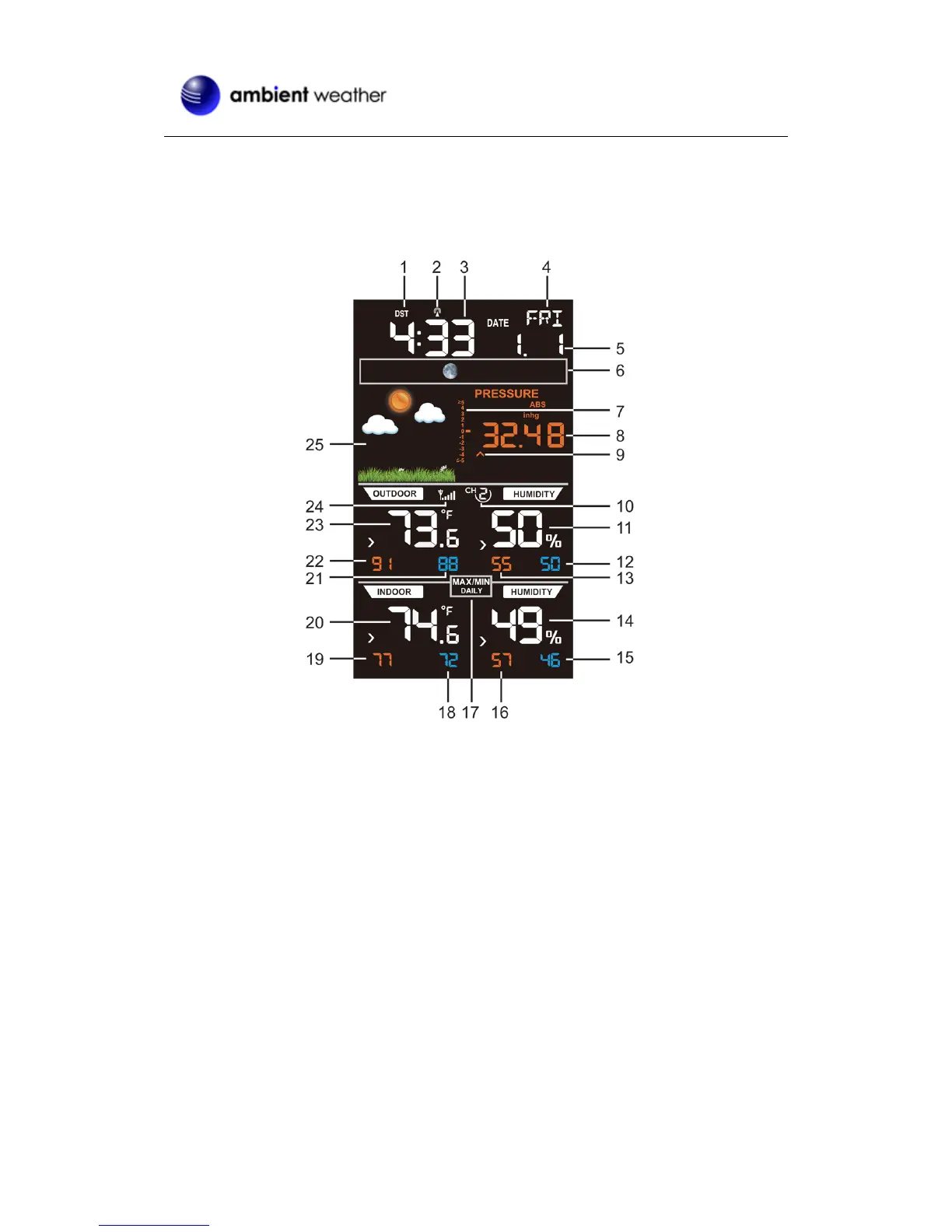

The display console layout is shown in Figure 4.
Figure 4
1. Daylight Savings Time
14. Outdoor humidity
2. Radio controlled reception
15. Outdoor humidity
3. Time
16. Min indoor humidity
4. Week day
17. Max indoor humidity
5. Date
18. Min indoor temperature
6. Moon phase
19. Max indoor temperature
7. Pressure rate of change
20. Indoor temperature
8. Barometric pressure
21. Min outdoor temperature
9. Barometric pressure trend arrow
10. Sensor channel number
22. Max outdoor temperature
11. Outdoor humidity
23. Outdoor temperature
12. Min outdoor humidity
24. Transmitter signal strength
13. Max outdoor humidity
25. Weather forecast icon based on barometer
