2. Unit Description

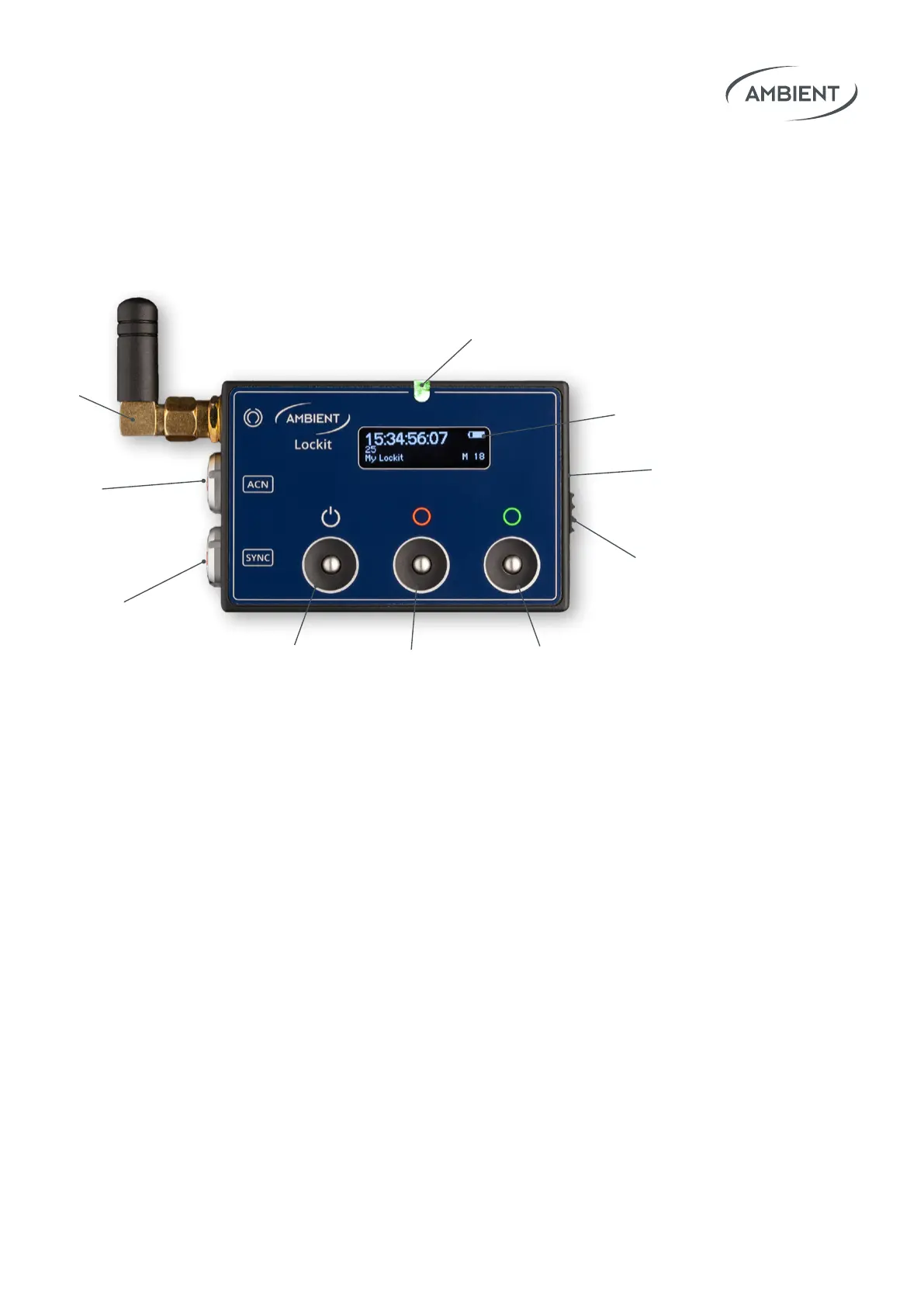

Front
1 ACN antenna, SMA RP 2.4GHz, keep attached to unit
2 RGB status LED
3 OLED display
4 TC & ACN connector (LEMO-compatible)
5 TC & Sync connector (LEMO-compatible)
6 Power button
7 Red button
8 Green button
9 Battery door, NP-50 Li-Ion type batteries only
10 USB-C socket (Power & Midi timecode)
