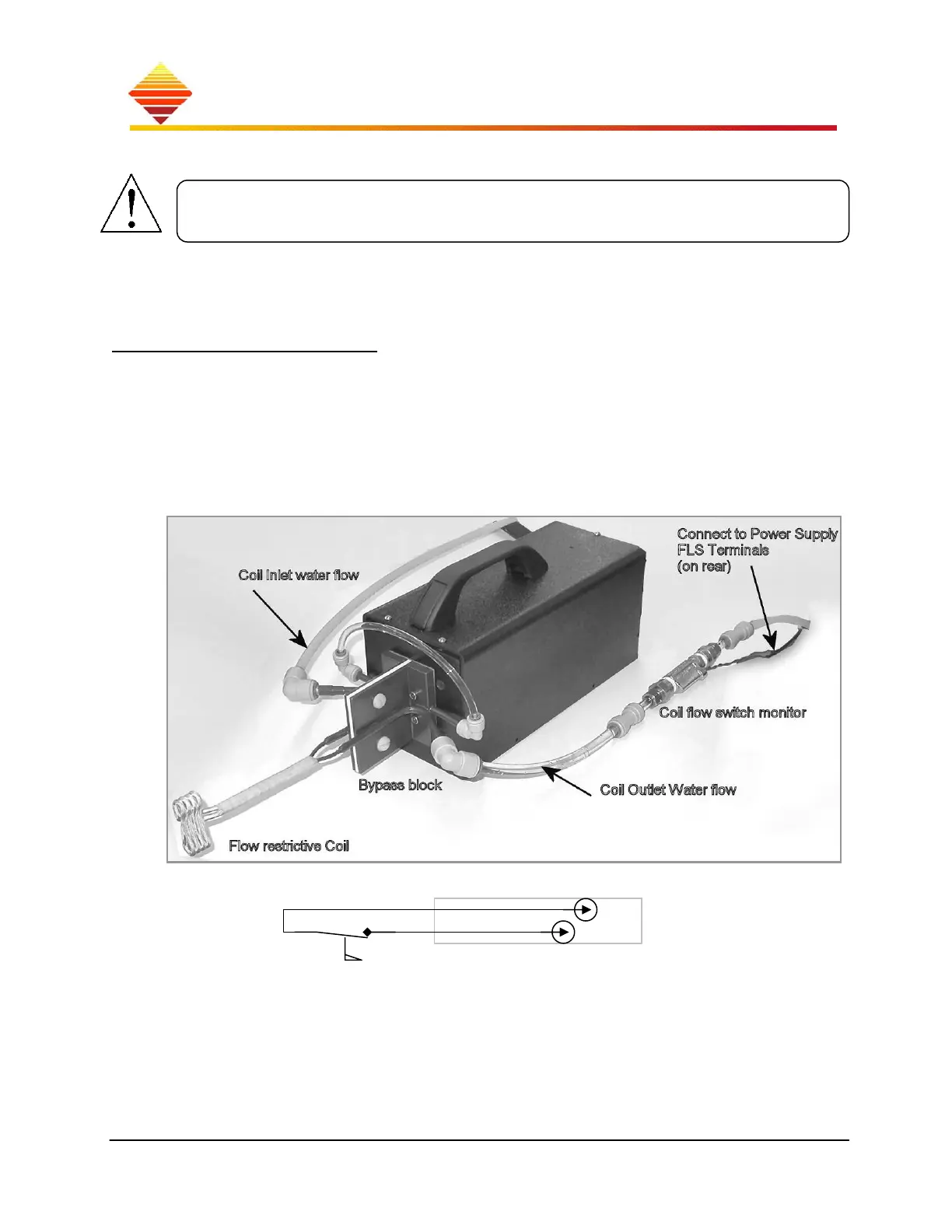

Flow switches (FLS)
Internal flow switches protect your EASYHEAT from thermal damage if cooling water to
the heat sink or to the coil is inadequate. You don’t have to make any connections to TB1
for this internal protection.
If your bypass coil presents a restricted water path, we may recommend the use of a
‘bypass-block’ with your work head (Ask your sales representative.). In this case you
may be required to complete wiring for an external flow switch (sold separately).
To add your optional normally-open flow switch, remove jumper at FLS, connect your
flow switch wires. Inadequate flow to your flow switch or to either the internal flow
switches will then result in Fault.
If no E-stop device is used, EStop>Gnd terminals must be jumpered (factory
configuration) for the EASYHEAT to operate.
