Precision Induction Heating

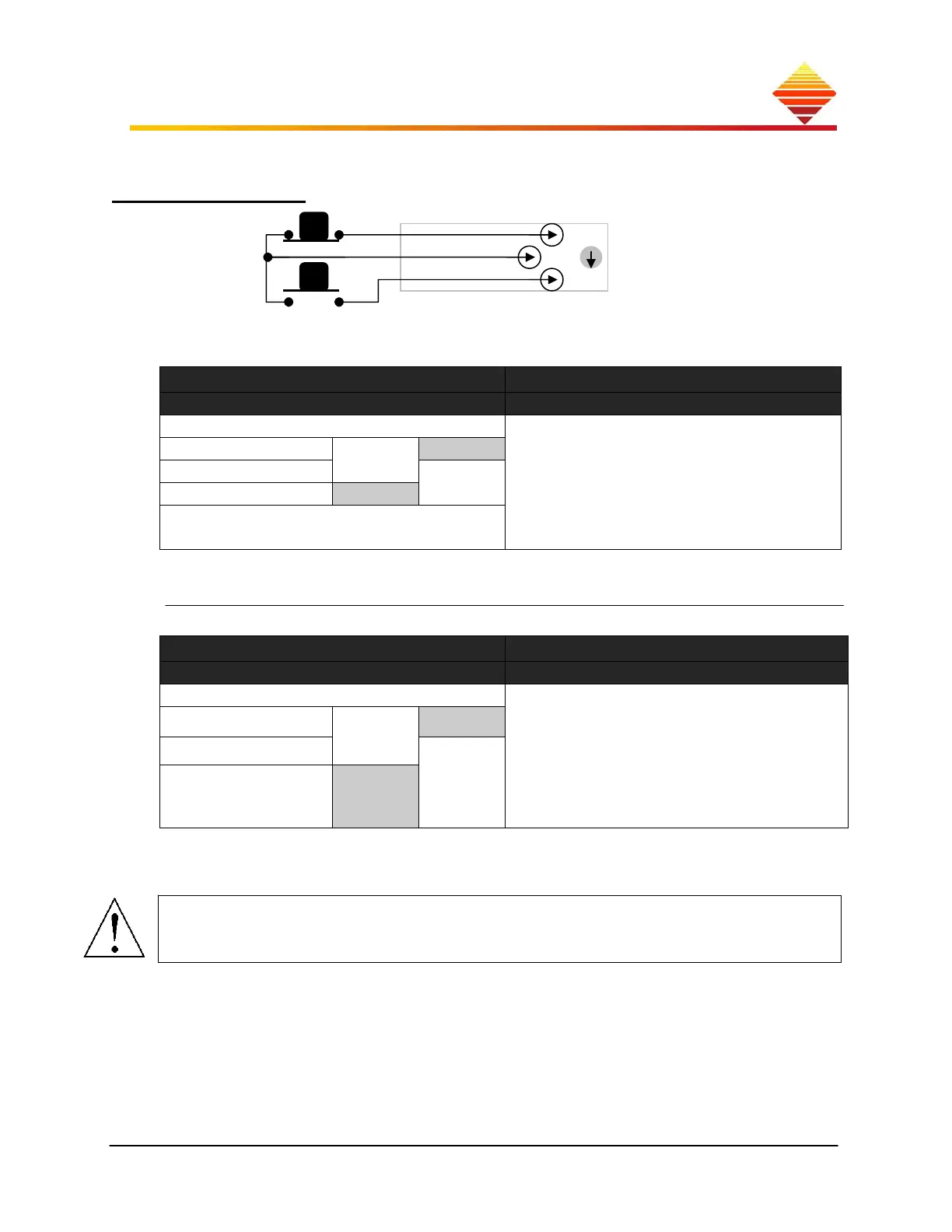

START/STOP
Case: use two external signals, switches or isolated contacts to control RF heating:
START signal is normally-open, active-closed, STOP is normally-closed, active-open.
2-Button...
Electrical Touch-pad
Attach your signal:
►System Options
Start From
►Rear Panel
Start Type
►2 button
 to Control,  to Home
START
N.O.
Gnd
N.C.
STOP
START: normally-open, active-closed
STOP: normally-closed; active-open
Result: START signal (momentary closure) initiates heating; opening STOP signal halts
heating. Heating cannot commence whenever normally closed STOP signal is opened.
Case: You use one external signal, switch or isolated contact to control RF heating
1-Button...
Electrical Touch-pad
Attach your signal:
►System Options
Start From
►Rear Panel
Start Type
►1 button
 to Control,  to Home
START
N.O.
Gnd
Jumper
STOP
Result: Closing, holding START initiates heating, which continues while START is
active; opening START signal halts heating. Heating cannot occur whenever (jumpered)
STOP signal is opened.
1-button Start is not recommended if you are using the timer (§2.1); the timer may re-
start if button is partially depressed or is held too long.
STOP
Gnd
START
